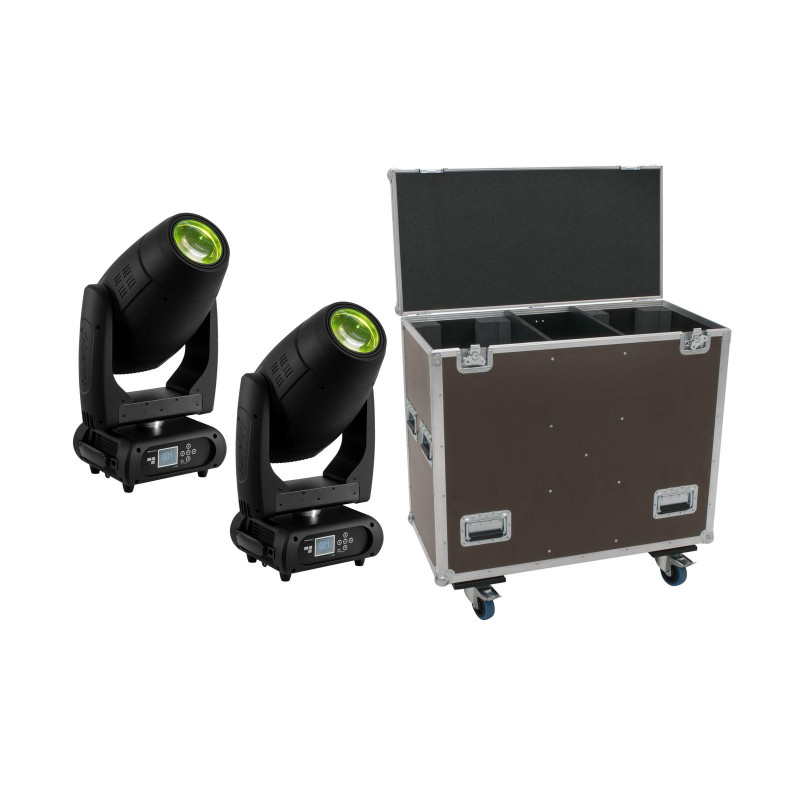

Set 2x DMH-300 CMY Moving-Head + Case
A-CS3 BYZANCE ARTIST'S CHOICE
Set 2x DMH-300 CMY Moving-Head
51841980 FUTURELIGHT DMH-300 CMY Moving Head
PRO beam/wash Moving Head with 270 W COB LED, large zoom and CMY color mixing
31005138 ROADINGER Flightcase 2x DMH-300 LED
PRO flightcase for 2x Futurelight DMH-300
| 51841980 FUTURELIGHT DMH-300 CMY Moving Head | |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 340 W |
| IP classification: | IP20 |
| Power connection: | Mains input PowerCON (blue), mounting version Power supply cord with safety plug (provided) |
| LED: | 1 x COB (chip-on-board) CW |
| Max. TILT movement: | Exact positioning (16 bit resolution) 265° Auto position correction (feedback) |
| Max. PAN movement: | Exact positioning (16 bit resolution) 540° Positioning switchable to 630° Auto position correction (feedback) |
| Equipment: | Gobo wheel with rotating gobos; Gobo wheel with static gobos; Prisma 3-fold; Zoom motor-driven; Focus motor-driven; Frost filter; Iris |
| Color generation: | CMY; Color wheel 8 dichroic filters plus open |
| Gobos: | Gobo wheel with static gobos, 7 gobos and open |
| Gobo wheel with rotating gobos, 7 gobos and open outside diameter 27mm image diameter 22mm Gobos changeable | |
| DMX channels: | 19; 21; 28; 29 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| 1 x 5-pin XLR (M) mounting version | |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| 1 x 5-pin XLR (F) mounting version | |
| Cooling: | temperature-controlled fan |
| Control: | W-DMX by wireless solution upgradeable |
| Stand-alone | |
| DMX | |
| Sound to light via Microphone | |
| RDM | |
| Beam angle (1/2 peak): | 8 - 44° |
| Illuminance in Lux (lx): | Narrow CW 3m: 58069 lx, 6m: 12229 lx |
| Wide CW 3m: 2745 lx, 6m: 736 lx | |
| Housing color: | Black |
| Width: | 44.5 cm |
| Height: | 53.4 cm |
| Depth: | 36.9 cm |
| Weight: | 25.10 kg |
| Legal specifications | |
| Ecodesign regulation: | Yes |
| Special product: | Not designed for household room illumination |
| Purpose: | Show effect lighting |
| 31005138 ROADINGER Flightcase 2x DMH-300 LED | |
| Maximum load: | 100 kg |
| Color: | Dark brown laminated |
| Material: | Birch multiplex 7 mm |
| Additional dimensions: | Compartment dimensions 32.5 cm x 42.5 cm x 67 cm |
| Accessory compartment 21 cm x 42.5 cm x 34.5 cm | |
| Inside dimensions 89.5 cm x 42.5 cm x 67 cm | |
| Width: | 93.5 cm |
| Height: | 94 cm |
| Depth: | 46.5 cm |
| Weight: | 36.10 kg |
