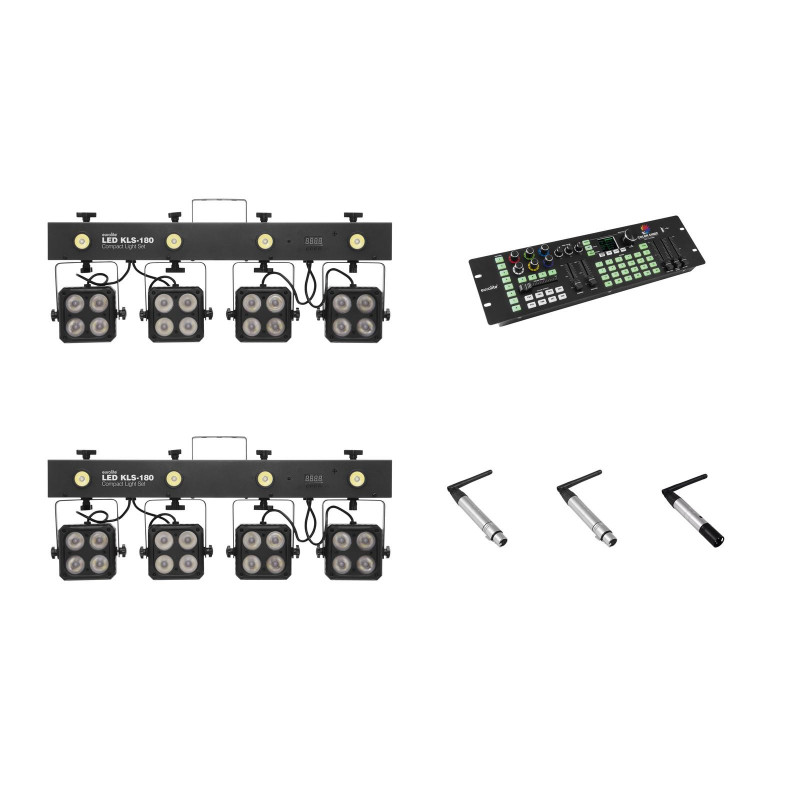

42109630 EUROLITE LED KLS-180 Compact Light Set

Bar with 4 RGBW spots and 4 white strobe LEDs, with QuickDMX connector (XLR)

• Crossbar with integrated DMX control unit and stand sleeve
• Ultra-light ideally suited for mobile use
• Ideal for bands, stages or solo entertainers
• Suited for installation on a speaker stand (not included) or truss
• Comes pre-assembled with practical transport bag
• 4 powerful 4in1 LEDs per spot provide for an exquisite RGBW color mix
• Strobe effect with 4 white 1 W LEDs
• Movable and tiltable spotlights
• Via DMX, each spot can be individually controlled
• DMX-controlled operation or stand-alone operation with Master/Slave function
• Sound-control via built-in microphone, microphone sensitivity adjustable
• Supports QuickDMX - the wireless DMX-system from Eurolite
• Built-in phantom fed socket for QuickDMX receiver (see accessories)
• 3, 4, 8 or 21 DMX channels selectable
• Functions: RGBW color mixture, color presets, built-in programs, strobe effects with variable speed, dimmer, sound-control, Master/Slave operation
• Addressing and setting via control panel with 4-digit LED display
• Additional controlling possibility via the EUROLITE IR-7 remote control, included in delivery
• Black lacquered metal version with movable mounting bracket
• Especially low-noise operation due to convection cooling
• IEC terminals for power linking up to 8 units
• LED: Spot 4 x separate controlling each with 4 x high-power 8 W 4in1 QCL RGBW (homogenous color mix)
• LED: Strobe effect separate controlling 4 x high-power 1 W CW
• Control: IR remote control; QuickDMX via 5-pin XLR (M) mounting version (optional); Stand-alone; Sound to light via Microphone; DMX; preprogrammed in EASY SHOW
• Projection: flicker-free

70064575 EUROLITE DMX LED Color Chief Controller

DMX lighting desk with innovative control concept for LED spotlights

• Easy control of LED spotlights with up to 6 colors, light bars as well as simple lighting effects
• For 8 devices or device groups, each with up to 4 segments
• Each device can occupy up to 30 channels
• Quick and easy programming
• Eurolite KLS systems and LED spotlights already in the library
• Additional fixtures can be configured manually
• 8 color effects directly selectable
• 3 additional channels available per fixture (e.g. for rotations)
• Color wheel selection and simulation
• 24 memory spaces for scenes and chases
• Several chases can be run simultaneously
• USB port for data storage of lighting programs
• Sound control via audio signal or TAP button
• Master dimming, fade time and run time easily adjustable
• 3-pin XLR connector
• Firmware update via USB
• Desktop console
• Control: Sound to light via Microphone; Sound to light via RCA (f) mounting version; DMX
• Housing design: (19") 48.3 cm rack installation 3 U

70064700 EUROLITE QuickDMX Wireless Transmitter

Wireless DMX transmitter 2.4 GHz

• Miniature wireless DMX transmitter for the wireless transmission of up to 512 DMX channels
• User-friendly 3-pin XLR plug (male) with swivel antenna
• Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
• Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transmitters and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
• Operating range up to 400 m (with line-of-sight)
• Simultaneous operation of up to 6 transmitters, thus control of 3072 DMX channels (6 DMX universes) possible
• 1 to 512 QuickDMX receivers can be controlled by each transmitter
• Plug & Play: quick and easy setup with one operating button for connecting/disconnecting QuickDMX receivers
• LED indication for functions
• Transceiver, to be used as transmitter or receiver
• Powered via included PSU
• 2.4 GHz ISM band - license-free worldwide
• Control: QuickDMX built-in

70064702 EUROLITE QuickDMX Wireless receiver phantom-power

Wireless DMX receiver 2.4 GHz, phantom powered

• Miniature wireless DMX receiver for the wireless transmission of up to 512 DMX channels
• User-friendly 5-pin XLR plug (female) with swivel antenna
• Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
• Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX receivers and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
• Operating range up to 400 m (with line-of-sight)
• 1 to 512 QuickDMX receivers can be controlled by each transmitter
• Plug & Play: quick and easy setup with one operating button for connecting/disconnecting QuickDMX receivers
• LED indication for functions
• Transceiver, to be used as transmitter or receiver
• Requires 5 V phantom power for operation
• 2.4 GHz ISM band - license-free worldwide
• Control: QuickDMX built-in; DMX
