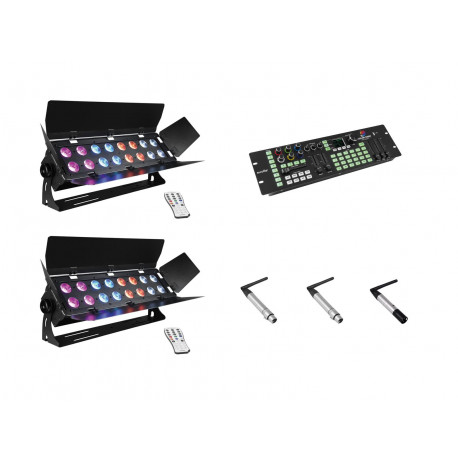

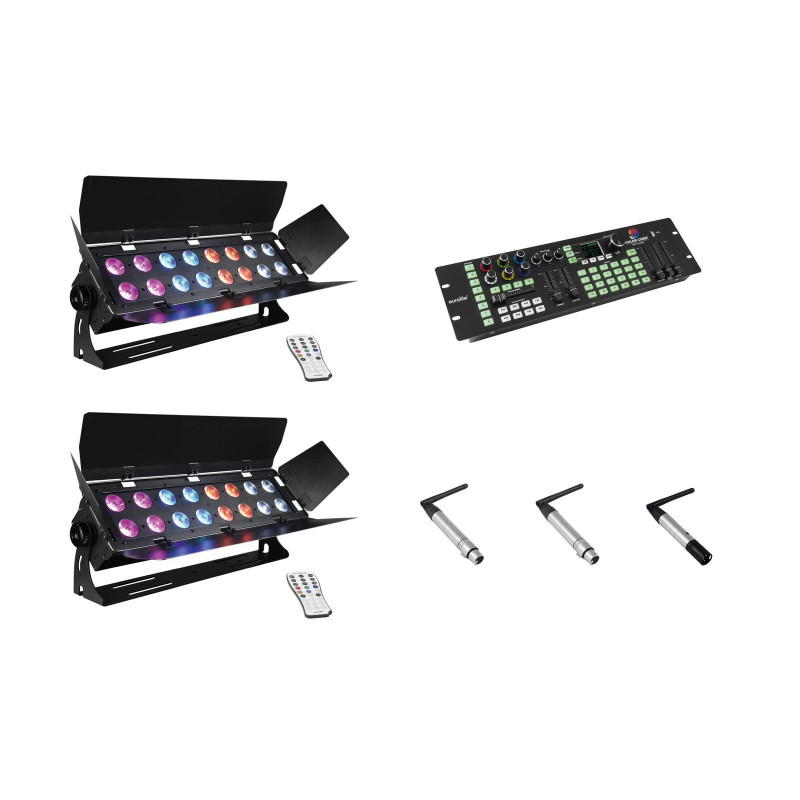

51913891 EUROLITE Stage Panel 16 HCL LED
Light effect bar with RGBAW+UV color mixing, with 5-pin QuickDMX connector
- 16 high-power 12 W RGBAW+UV LEDs (6in1)
- 4 segments for dynamic running lights
- Auto, music, master/slave and DMX mode
- Built-in auto and music show programs
- Direct color selection for 26 preset colors
- Color temperature adjustable in 6 steps (2700-8000 K)
- Stepless RGBAW+UV color blend, color change, color fade, dimmer and strobe effect
- 4 barn doors to avoid blinding the audience and for protection during transport
- Addressing and setting via control panel with 4-digit LED display
- Convenient wireless control via included IR remote control EUROLITE IR-7
- Supports QuickDMX - the wireless DMX-system from Eurolite
- Built-in phantom fed socket for QuickDMX receiver (see accessories)
- Sound-control via built-in microphone with adjustable microphone sensitivity
- 2, 3, 5, 6, 8, 11, 24, or 32 DMX channels selectable for various applications
- Swivel mounting bracket
- Power connection via P-Con jack and included power cable with safety plug
- LED: 16 x high-power 12 W 6in1 HCL RGBWA/UV (homogenous color mix)
- Control: QuickDMX via 5-pin XLR (M) mounting version (optional); IR remote control; Stand-alone; Sound to light via Microphone; DMX
- Projection: flicker-free
- Effect: Strobe effect; UV
70064575 EUROLITE DMX LED Color Chief Controller
DMX lighting desk with innovative control concept for LED spotlights
- Easy control of LED spotlights with up to 6 colors, light bars as well as simple lighting effects
- For 8 devices or device groups, each with up to 4 segments
- Each device can occupy up to 30 channels
- Quick and easy programming
- Eurolite KLS systems and LED spotlights already in the library
- Additional fixtures can be configured manually
- 8 color effects directly selectable
- 3 additional channels available per fixture (e.g. for rotations)
- Color wheel selection and simulation
- 24 memory spaces for scenes and chases
- Several chases can be run simultaneously
- USB port for data storage of lighting programs
- Sound control via audio signal or TAP button
- Master dimming, fade time and run time easily adjustable
- 3-pin XLR connector
- Firmware update via USB
- Desktop console
- Control: Sound to light via Microphone; Sound to light via RCA (f) mounting version; DMX
- Housing design: (19") 48.3 cm rack installation 3 U
70064700 EUROLITE QuickDMX Wireless Transmitter
Wireless DMX transmitter 2.4 GHz
- Miniature wireless DMX transmitter for the wireless transmission of up to 512 DMX channels
- User-friendly 3-pin XLR plug (male) with swivel antenna
- Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
- Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transmitters and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
- Operating range up to 400 m (with line-of-sight)
- Simultaneous operation of up to 6 transmitters, thus control of 3072 DMX channels (6 DMX universes) possible
- 1 to 512 QuickDMX receivers can be controlled by each transmitter
- Plug & Play: quick and easy setup with one operating button for connecting/disconnecting QuickDMX receivers
- LED indication for functions
- Transceiver, to be used as transmitter or receiver
- Powered via included PSU
- 2.4 GHz ISM band - license-free worldwide
- Control: QuickDMX built-in
70064702 EUROLITE QuickDMX Wireless receiver phantom-power
Wireless DMX receiver 2.4 GHz, phantom powered
- Miniature wireless DMX receiver for the wireless transmission of up to 512 DMX channels
- User-friendly 5-pin XLR plug (female) with swivel antenna
- Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
- Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX receivers and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
- Operating range up to 400 m (with line-of-sight)
- 1 to 512 QuickDMX receivers can be controlled by each transmitter
- Plug & Play: quick and easy setup with one operating button for connecting/disconnecting QuickDMX receivers
- LED indication for functions
- Transceiver, to be used as transmitter or receiver
- Requires 5 V phantom power for operation
- 2.4 GHz ISM band - license-free worldwide
- Control: QuickDMX built-in; DMX
Weight: | 13.00 kg |
51913891 EUROLITE Stage Panel 16 HCL LED |
Power supply: | 100-240 V AC, 50/60 Hz |
Power consumption: | 70 W |
IP classification: | IP20 |
Power connection: | Mains input P-Con (blue), mounting version Power supply cord with safety plug (provided) |
Power output: | 1 x P-Con (gray), mounting version |
LED: | 16 x high-power 12 W 6in1 HCL RGBWA/UV (homogenous color mix) |
Flash rate: | 0 - 20 Hz |
DMX channels: | 2; 3; 5; 6; 8; 11; 24; 32 |
DMX input: | 1 x 3-pin XLR (M) mounting version |
DMX output: | 1 x 3-pin XLR (F) mounting version |
Cooling: | passivcooling by convection |
Control: | QuickDMX via 5-pin XLR (M) mounting version (optional) |
| IR remote control |
| Stand-alone |
| Sound to light via Microphone |
| DMX |
Beam angle (1/2 peak): | 23° |
Beam angle (1/10 peak): | 42° |
Housing color: | Black |
Width: | 59.1 cm |
Height: | 30.3 cm |
Depth: | 19.9 cm |
Weight: | 5.35 kg |
Remote control |
Battery: | 1 x Button cell 3.0 V CR2025 lithium manganese built-in |
Legal specifications |
Ecodesign regulation: | Yes |
Special product: | Not designed for household room illumination |
Purpose: | Show effect lighting |
70064575 EUROLITE DMX LED Color Chief Controller |
Power supply: | 100-240 V AC, 50/60 Hz 9 V DC 800 mA |
Power consumption: | 10 W |
IP classification: | IP20 |
Power connection: | Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided) |
Programs: | 24 Sequences |
DMX channels: | Output 240 |
DMX output: | 1 x 3-pin XLR (F) mounting version |
Control: | Sound to light via Microphone |
| Sound to light via RCA (f) mounting version |
| DMX |
Color: | Black |
Housing color: | Black |
Available storage media: | USB devices (FAT 32) |
USB port: | Typ A |
Housing design: | (19") 48.3 cm rack installation 3 U |
Width: | 48.3 cm |
Height: | 8.5 cm |
Depth: | 13.35 cm |
Weight: | 2.25 kg |
70064700 EUROLITE QuickDMX Wireless Transmitter |
Power supply: | 100-240 V AC, 50/60 Hz 5 V DC 1 A |
IP classification: | IP20 |
Power connection: | Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided) |
DMX channels: | Output 512 |
DMX input: | 1 x 3-pin XLR (M) |
Control: | QuickDMX built-in |
Color: | Silver |
Carrier frequency: | 2.4 GHz |
Modulation: | GFSK |
Parallel mode: | max. 6 Transmitter |
Range: | 400 m |
Length: | 21.2 cm |
Diameter: | 1.8 cm |
Weight: | 0.15 kg |
70064702 EUROLITE QuickDMX Wireless receiver phantom-power |
Power supply: | 5 V DC |
IP classification: | IP20 |
Power connection: | Mains input 5-pin XLR (W) connector |
DMX channels: | Input 512 |
DMX output: | 1 x 5-pin XLR (F) |
Control: | QuickDMX built-in |
| DMX |
Color: | Silver |
Carrier frequency: | 2.4 GHz |
Modulation: | GFSK |
Parallel mode: | max. 6 Transmitter |
Range: | 400 m |
Length: | 21.2 cm |
Diameter: | 1.8 cm |
Weight: | 0.10 kg |
