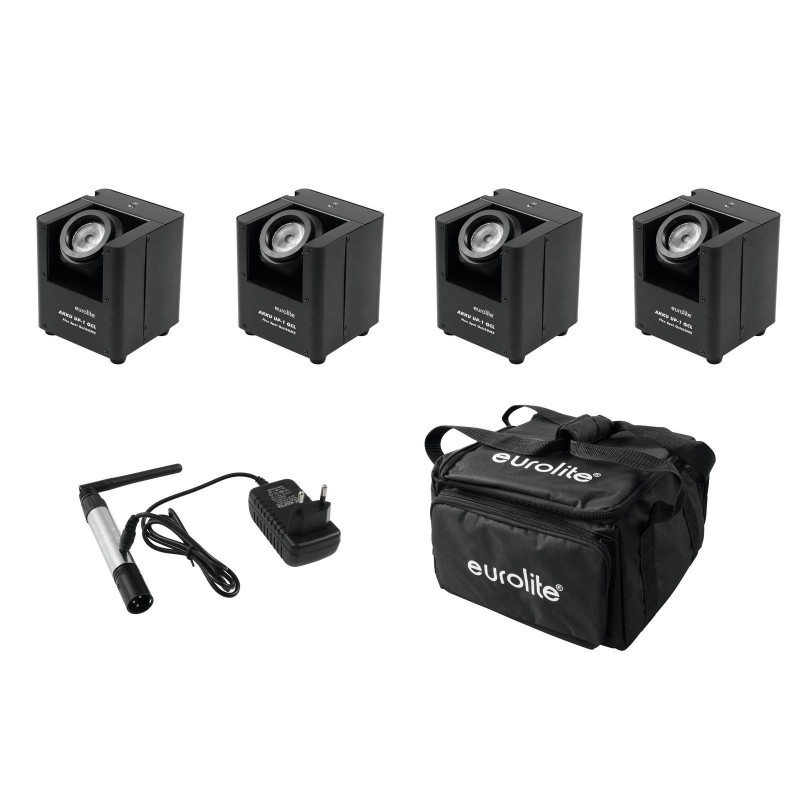

Eurolite - Set 4x AKKU UP-1 + SB-4 Soft-Bag

Set 4x AKKU UP-1 + SB-4 Soft-Bag

Set 4x AKKU UP-1 + SB-4 Soft-Bag + QuickDMX Wireless transmitter

1049.00€%6.77 You save 71.00€
978,00 €

Add to wishlist

In Stock

Europe Warehouse: 70

More info



41700505 EUROLITE AKKU UP-1 QCL Flex Spot QuickDMX

LED Uplight with 15 W 4in1 LED, tiltable head and QuickDMX transceiver

  • Compact and bright
  • Equipped with a 15 W QCL (quadcolor LED) in red, green, blue and white
  • Inclination angle of the LED head manually adjustable
  • Beam angle selectable via included lens 9°/15°
  • With integrated QuickDMX transceiver for wireless reception of DMX512 signals
  • Operation via included power supply unit or built-in rechargeable lithium-ion battery with up to 18 hours operating time
  • Integrated automatic charging of the battery with indicator
  • Controllable via EUROLITE IR-13 remote control; included in the delivery
  • DMX-controlled operation or stand-alone operation with Master/Slave function
  • 3, 4, 6, 8 or 10 DMX channels selectable
  • Functions: static colors, stepless RGBW color mixture, internal programs, dimmer, strobe effect with variable speed, sound-control
  • Dimmer speed (step response) adjustable
  • Adjustable microphone sensitivity
  • Addressing via control panel with 4-digit LED display
  • Charger included in delivery
  • Switch-mode power supply for operation between 100 and 240 volts
  • LED: 1 x high-power 15 W 4in1 QCL RGBW (homogenous color mix)
  • Control: Master/slave function; IR remote control included; DMX; QuickDMX built-in; Sound to light via Microphone; Stand-alone
  • Projection: flicker-free

30130501 EUROLITE SB-4 Soft Bag M

Black softbag for up to four devices (Akku UP-4/TL-3 TCL)

  • Practical transport bag offers enough space for several lighting effects and accessories
  • Large interior, four times divisible and adaptable with foam dividers and pads
  • Suitable e.g. for 4 x AKKU UP-4 Spot, 4 x TL-3 TCL Trusslight (41700500) or 3 x AKKU UP-4 Spot QuickDMX (41700540)
  • Interior upholstery helps securing and safeguarding the fixtures during transportation
  • External pocket stores accessories like cables, clamps, lamps and tape
  • Made of easy-care nylon
  • Carrying handles

70064700 EUROLITE QuickDMX Wireless Transmitter

Wireless DMX transmitter 2.4 GHz

  • Miniature wireless DMX transmitter for the wireless transmission of up to 512 DMX channels
  • User-friendly 3-pin XLR plug (male) with swivel antenna
  • Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
  • Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transmitters and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
  • Operating range up to 400 m (with line-of-sight)
  • Simultaneous operation of up to 6 transmitters, thus control of 3072 DMX channels (6 DMX universes) possible
  • 1 to 512 QuickDMX receivers can be controlled by each transmitter
  • Plug & Play: quick and easy setup with one operating button for connecting/disconnecting QuickDMX receivers
  • LED indication for functions
  • Transceiver, to be used as transmitter or receiver
  • Powered via included PSU
  • 2.4 GHz ISM band - license-free worldwide
  • Control: QuickDMX built-in


41700505 EUROLITE AKKU UP-1 QCL Flex Spot QuickDMX
Power consumption:15 W
IP classification:IP20
Power connection:Battery/battery pack
Mains input Coaxial power connector (M) Power supply cord with Euro plug (provided)
LED:1 x high-power 15 W 4in1 QCL RGBW (homogenous color mix)
DMX channels:3; 4; 6; 8; 10
DMX input:1 x 3-pin XLR (M) mounting version
DMX output:1 x 3-pin XLR (F) mounting version
Cooling:passivcooling by convection
Control:Master/slave function
IR remote control included
DMX
QuickDMX built-in
Sound to light via Microphone
Stand-alone
Beam angle (1/2 peak):9°
15°
Beam angle (1/10 peak):18°
30°
Housing color:Black
Carrier frequency:2.4 GHz
Width:12 cm
Height:14.2 cm
Depth:12 cm
Weight:2.21 kg
Device
Battery pack type:1 x Lithium ion 7.4 V, 8800 mAh, 65.12 Wh
Battery pack:battery operation up to 18h depending on program used
recharging time 6h
External mains adapter
Power supply:100-240 V AC, 50/60 Hz
8.4 V 3 A
Remote control
Battery:1 x Button cell 3.0 V CR2032 lithium manganese built-in
Legal specifications
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting
30130501 EUROLITE SB-4 Soft Bag M
Maximum load:25 kg
Color:Black
Material:Textile
Additional dimensions:Compartment dimensions 14 cm x 14 cm x 19 cm
Inside dimensions 29 cm x 29 cm x 19 cm
Width:30 cm
Height:20 cm
Depth:33 cm
Weight:0.51 kg
70064700 EUROLITE QuickDMX Wireless Transmitter
Power supply:100-240 V AC, 50/60 Hz
5 V DC 1 A
IP classification:IP20
Power connection:Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided)
DMX channels:Output 512
DMX input:1 x 3-pin XLR (M)
Control:QuickDMX built-in
Color:Silver
Carrier frequency:2.4 GHz
Modulation:GFSK
Parallel mode:max. 6 Transmitter
Range:400 m
Length:21.2 cm
Diameter:1.8 cm
Weight:0.15 kg
