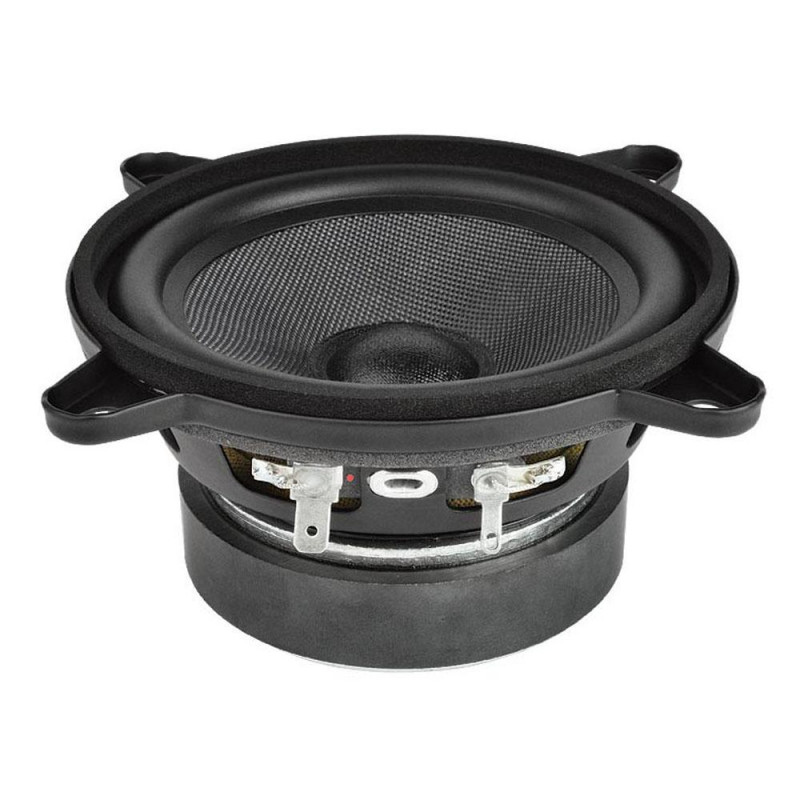

Faital PRO - FP4FE35B 1 View larger

Faital PRO - FP4FE35B

FP4FE35B

Faital Pro 4 FE 35 B 4" Speaker 30 W 16 Ohm - Ferrite. Price per piece.

Sold Out

Europe Warehouse: 0

More info

4" Speaker 30 W 16 Ohm - Ferrite

Product type
Loudspeaker Chassis

Type
PA

Nominal Diameter
4 "

Nominal Diameter
100 mm

Voice Coil
0.75 "

Voice Coil
19 mm

Overall diameter
100.6 mm

Pitch Circle Diameter
115.26 mm

Section Diameter
91.5 mm

Mounting holes
4

Diameter of fixing holes
6 mm

Depth
58.3 mm

Nominal Impedance
8 Ohm(s)

Nominal Load Capacity
30 W

maximum rated load
60 W

Sensitivity (1 W / 1 m)
91 dB

Frequency response
90 - 20000 Hz

Voice Coil Material
aluminium

Magnet
Ferrite

Depth of the magnetic gap
4 mm

Thiele & Small Parameter


Fs (Resonance Frequency)
100 Hz

Re (DC resistance)
12.3 Ohm(s)

Qms (mechanical quality)
3.8

Le (inductance of the voice coil)
0.1 mH

Qes (electrical quality)
1.67

Qts (overall quality)
1.16

Vas (equivalent volume)
2

Mms (moving mass)
4.2 g

BL (power factor)
4.3 T/m

Xmax (maximum displacement)
1.83 mm

Cms (elasticity of the suspension)
0.64 mm/N

Sd (membrane area)
48 cm²

Rms (mechanical loss resistance)
0.65 kg/s

Weight
0,57 kg
