AD / DA CONVERTER ISA ADN2 is an optional two-channel AD card that provides high-quality analog-to-digital conversion for the ISA One DI and microphone preamplifier. With Dante, AES3, ADAT and S/PDIF connectivity, the card operates at Sampling up to 24bit/192kHz.

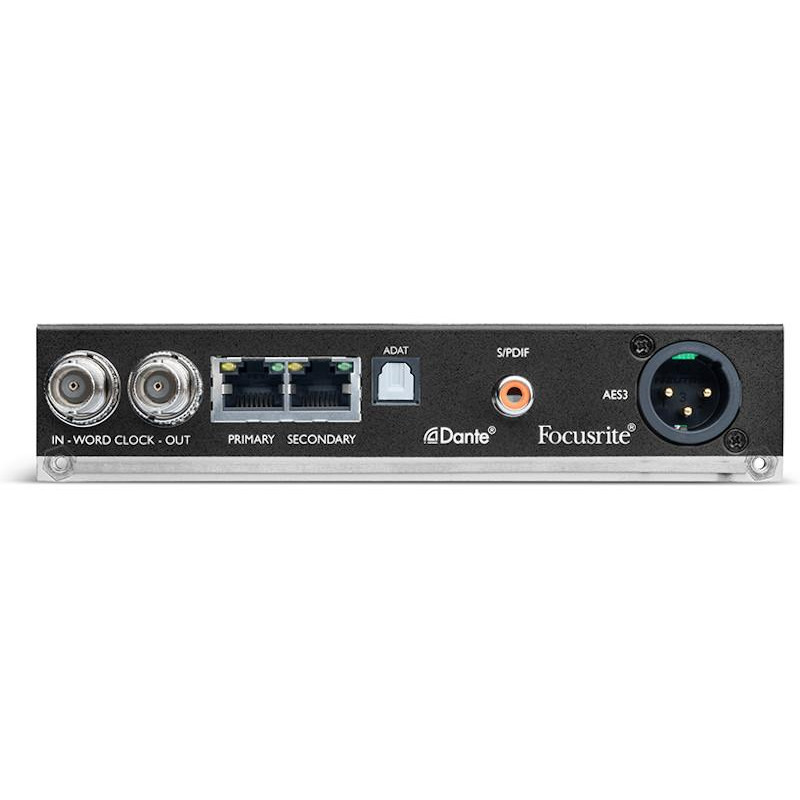

The card offers primary and secondary RJ45 Dante output ports, an XLR connector for AES3 output, a TOSLINK connector for ADAT output, and an RCA connector for S/PDIF. Digital clock I/O on the BNC connectors allows for synchronization with multiple digital sources. This also includes Dante network synchronization with external equipment.
The card's Dante outputs provide the ISA One with network connectivity to all Focusrite RedNet devices and red interfaces, as well as any other Dante-enabled devices from hundreds of manufacturers. Metering and configuration is accessed via RedNet Control, routing is configured via Dante Controller.
