ISA AD/DA CONVERTER ADN8 is an optional eight-channel AD card that provides high-quality analog-to-digital conversion for the Focusrite ISA 428 MkII and ISA 828 MkII microphone preamplifiers. Featuring Dante, AES3, and ADAT connectivity, the card operates at sample rates up to 24-bit/192kHz.

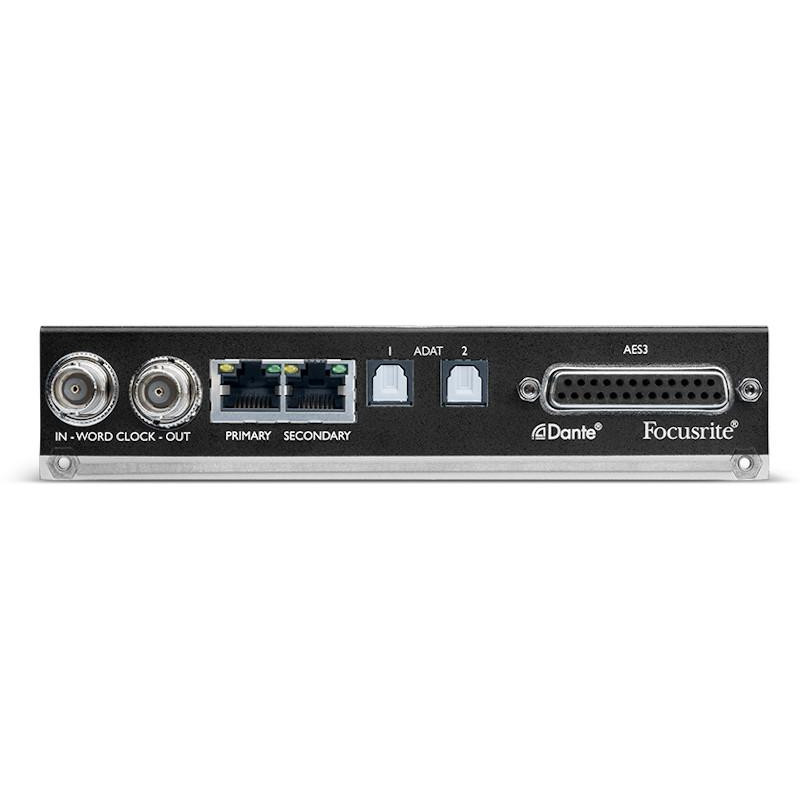

The card offers primary and secondary RJ45 Dante output ports, an AES59 DB25 connector for AES3 output, and a pair of TOSLINK connectors for ADAT output. Digital clock I/O on the BNC connectors allows synchronization with multiple digital sources. This also includes Dante network synchronization with external equipment.

Dante outputs on the ISA ADN8 provide ISA 428 MkII and ISA 828 MkII with network connectivity to all Focusrite RedNet devices and RED interfaces, as well as any other Dante-enabled devices from hundreds of manufacturers. Metering and configuration is accessed via RedNet Control, routing is configured via Dante Controller software.
