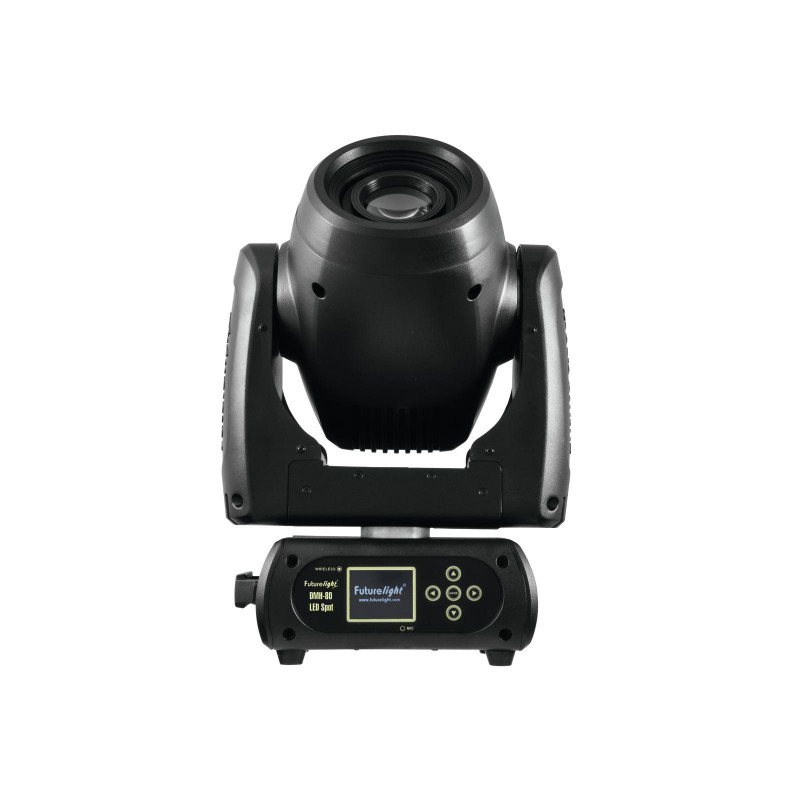

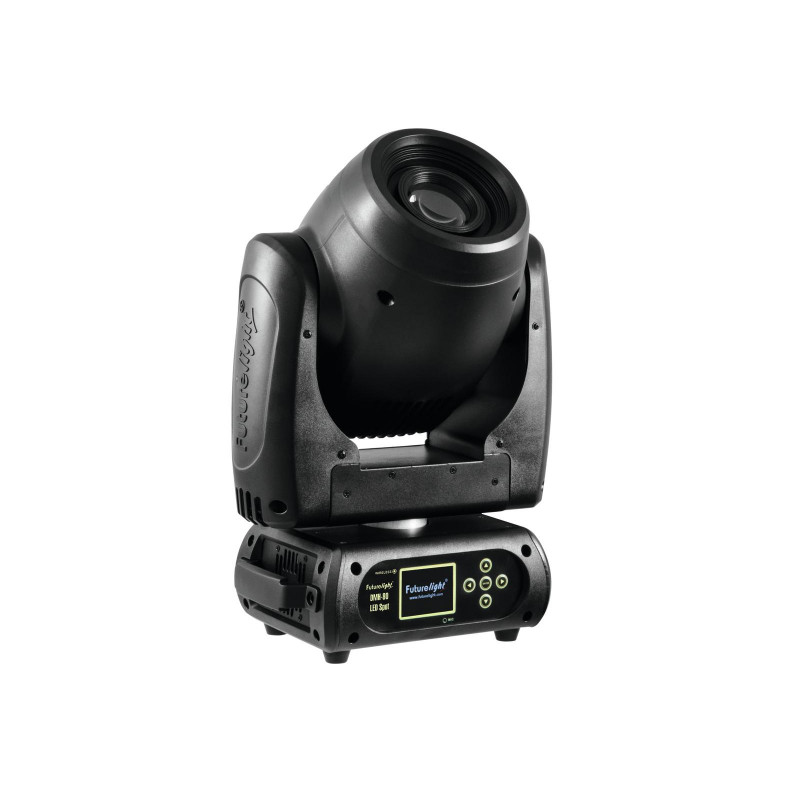

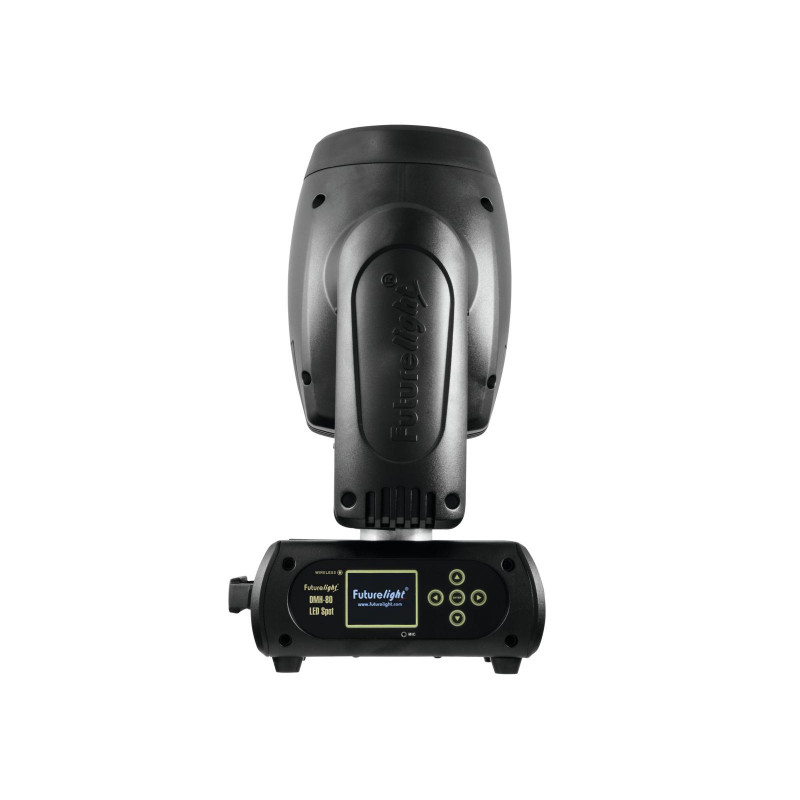

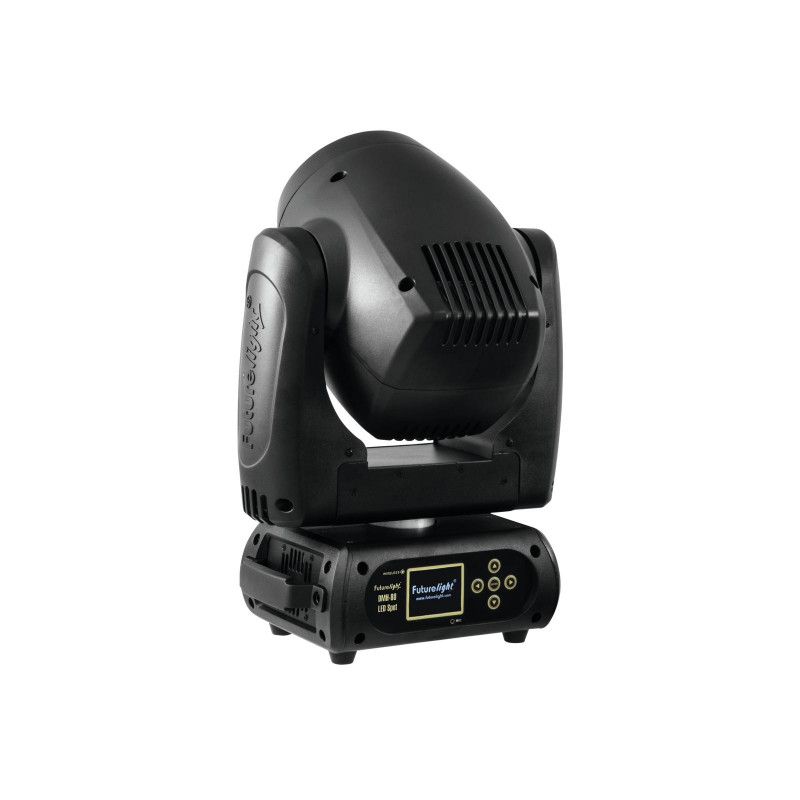

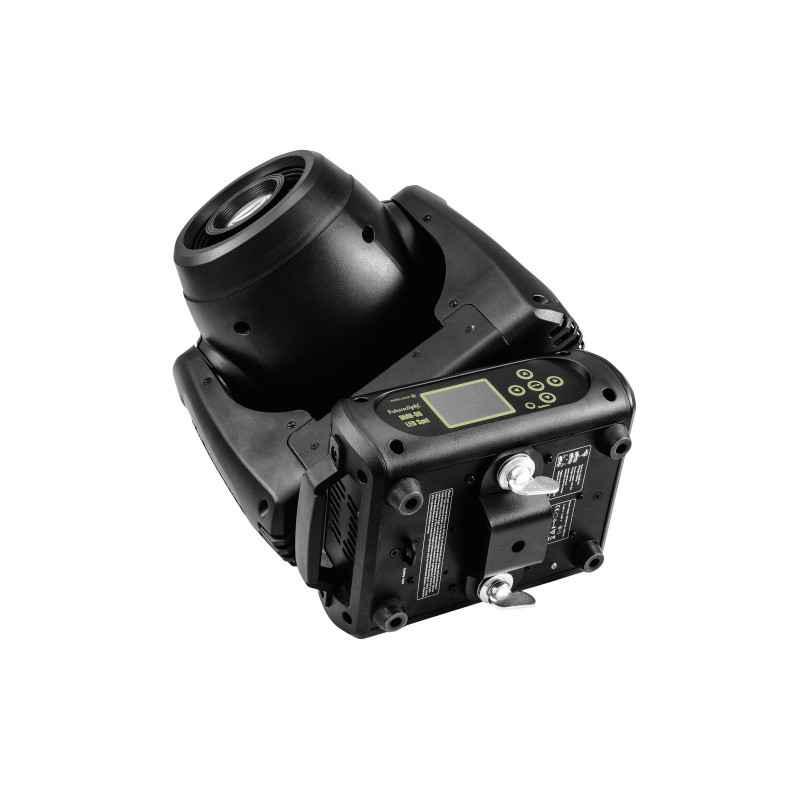

DMH-80 LED Spot
IP 65 data extension cable for the...
PRO Moving Head with 75 W LED and unique 16-facet prism
Power supply: | 100-240 V AC, 50/60 Hz |
Power consumption: | 135 W |
IP classification: | IP20 |

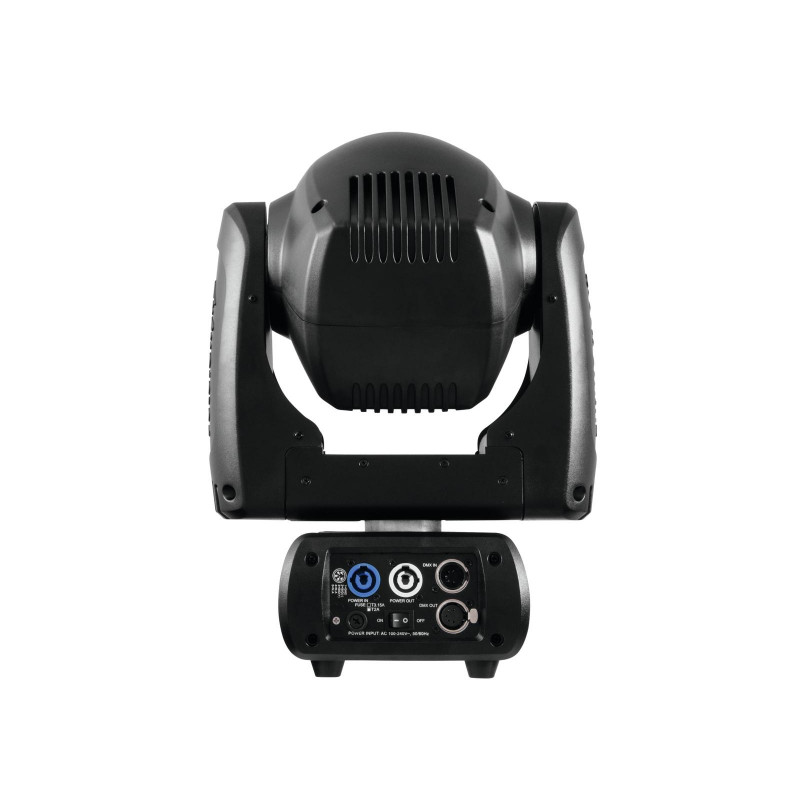

Power connection: | Mains input PowerCON (blue), mounting version Power supply cord with safety plug (provided) |
Power output: | 1 x PowerCON (gray), mounting version |
LED: | 1 x COB (chip-on-board) 75 W CW |
Max. TILT movement: | Exact positioning (16 bit resolution) 270° Auto position correction (feedback) |
Max. PAN movement: | Exact positioning (16 bit resolution) 540° Positioning switchable to 630° Auto position correction (feedback) |
Equipment: | Gobo wheel with rotating gobos; Prisma 16-fold; Focus motor-driven |

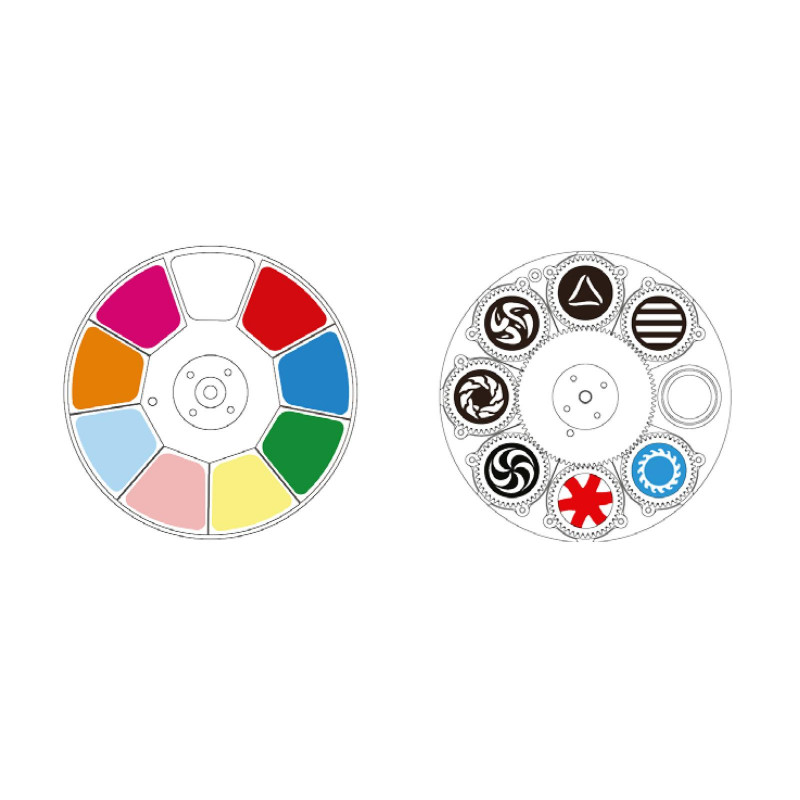

Color generation: | Color wheel 8 dichroic filters plus open |
Gobos: | Gobo wheel with rotating gobos, 7 gobos and open outside diameter 24mm image diameter 19mm |
DMX channels: | 11; 13; 17; 18 |
DMX input: | 1 x 5-pin XLR (M) mounting version |
DMX output: | 1 x 5-pin XLR (F) mounting version |
Cooling: | temperature-controlled fan |
Control: | W-DMX by wireless solution upgradeable |
Stand-alone | |
DMX | |
Sound to light via Microphone | |
RDM | |
Beam angle: | 10 - 16° |
Beam angle (1/2 peak): | 10 - 16° |
Beam angle (1/10 peak): | 10 - 16° |
Illuminance in Lux (lx): | Narrow CW 3m: 8334 lx, 6m: 2169 lx |
Wide CW 3m: 5211 lx, 6m: 1339 lx | |
Housing color: | Black |
Width: | 29.9 cm |
Height: | 39.8 cm |
Depth: | 25.2 cm |
Weight: | 9.55 kg |
Legal specifications | |
Ecodesign regulation: | Yes |
Special product: | Not designed for household room illumination |
Purpose: | Show effect lighting |
