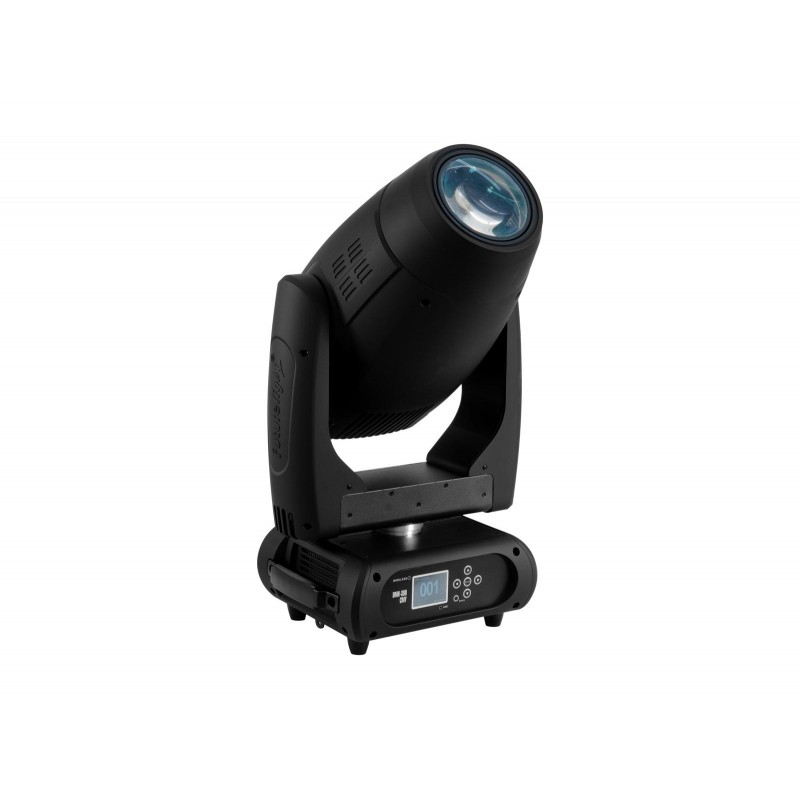

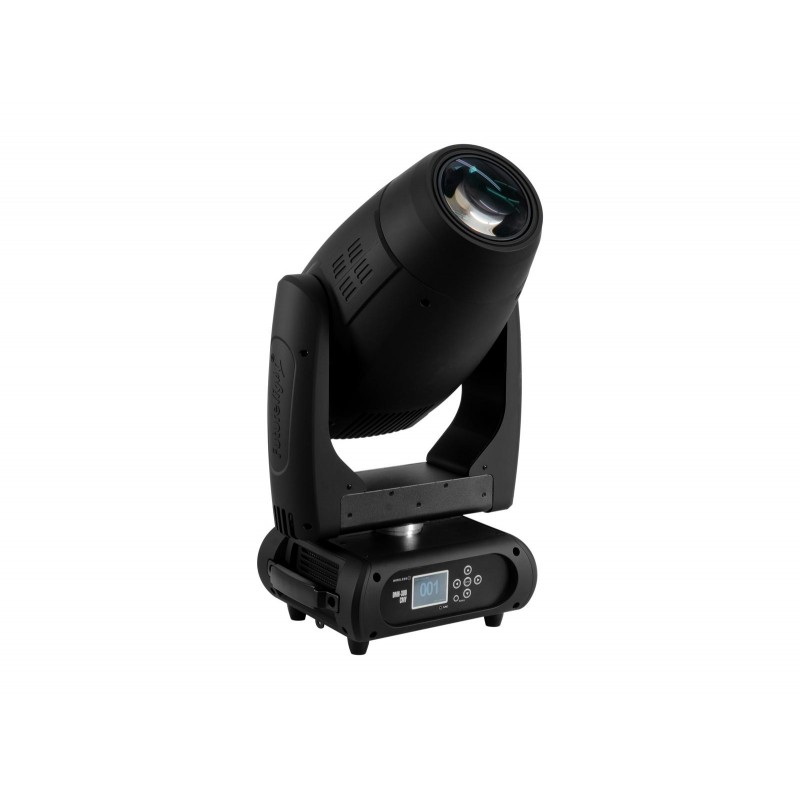

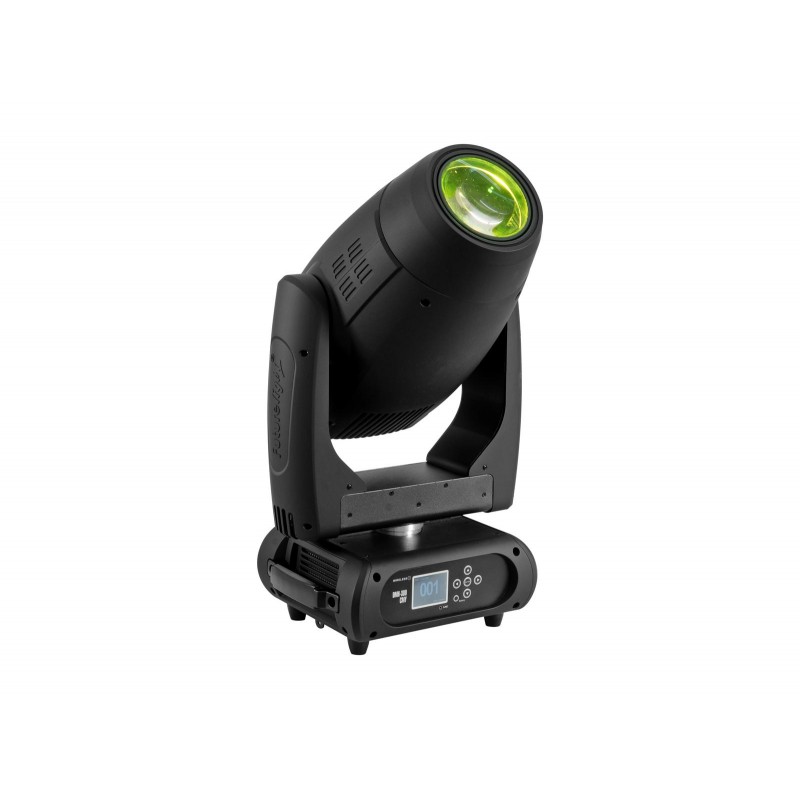

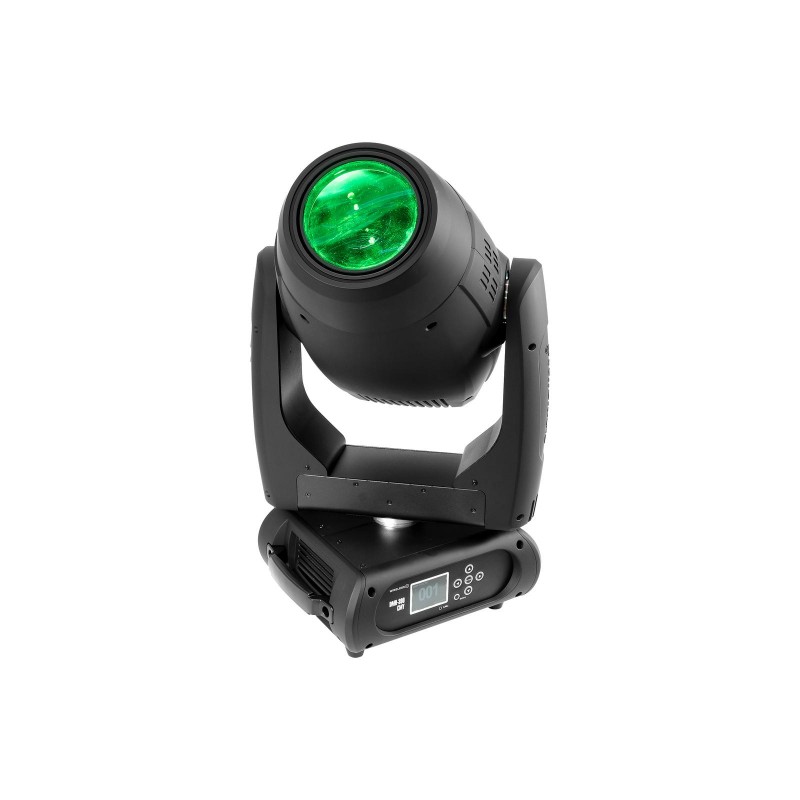

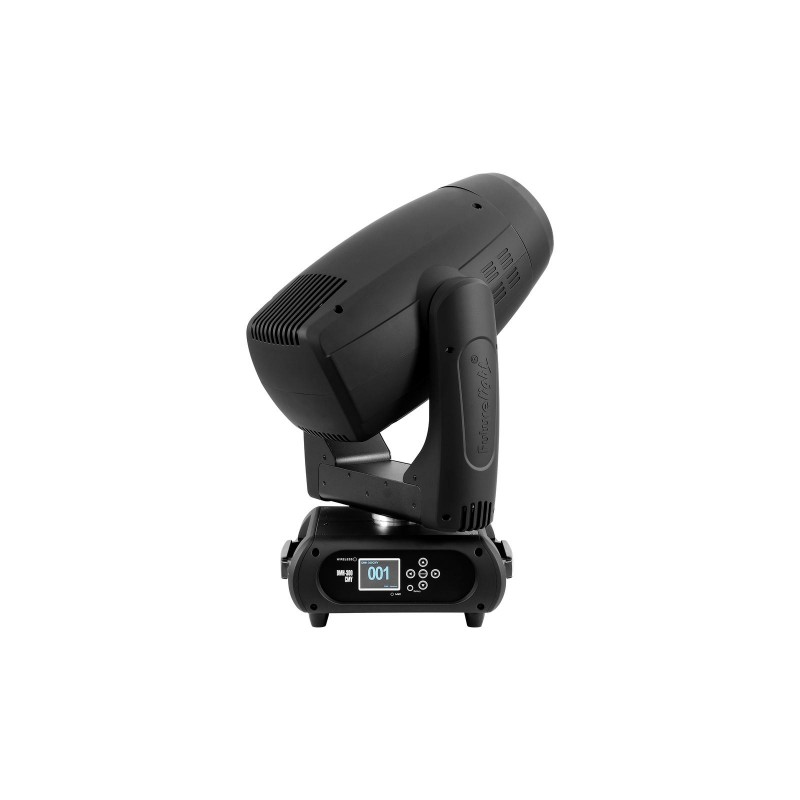

PRO beam/wash Moving Head with 270 W COB LED, large zoom and CMY color mixing
Powerful white 270 W COB LED
Variable PWM frequency (pulse-width modulation)
CMY color mixing for indefinite color variations
Upgrade via optional wireless receiver module for WDMX operation (Wireless Solution - made in Sweden)
Supports RDM (Remote Device Management)
19, 21, 28 or 29 DMX channels selectable
Effect wheel with rotating 3-facet prism

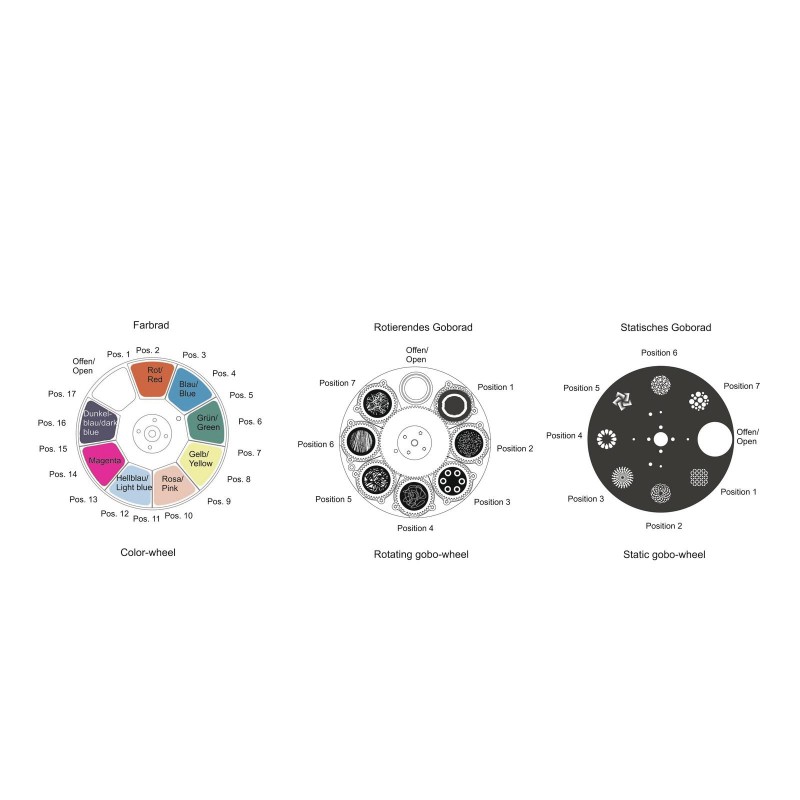

Color wheel with 8 different dichroic color filters plus white
Rainbow effect with adjustable speed in both directions
Gobo wheel with 7 rotating gobos plus open
All rotating gobos can be interchanged
Slot-in gobo system for exchanging gobos without tools
With gobo shake function
Gobo wheel 2 with 7 static gobos plus open
Exact positioning via 16 bit PAN/TILT movement resolution
Motorized focus
Autofocus
Motorized zoom with 8 - 44° beam angle
Steplessly adjustable iris
Stepless frost-filter
Dimmer
Strobe effect with adjustable speed
Random strobe effect
Automatic position correction
PAN angle switchable between 540° and 630°
Sound-controlled via built-in microphone

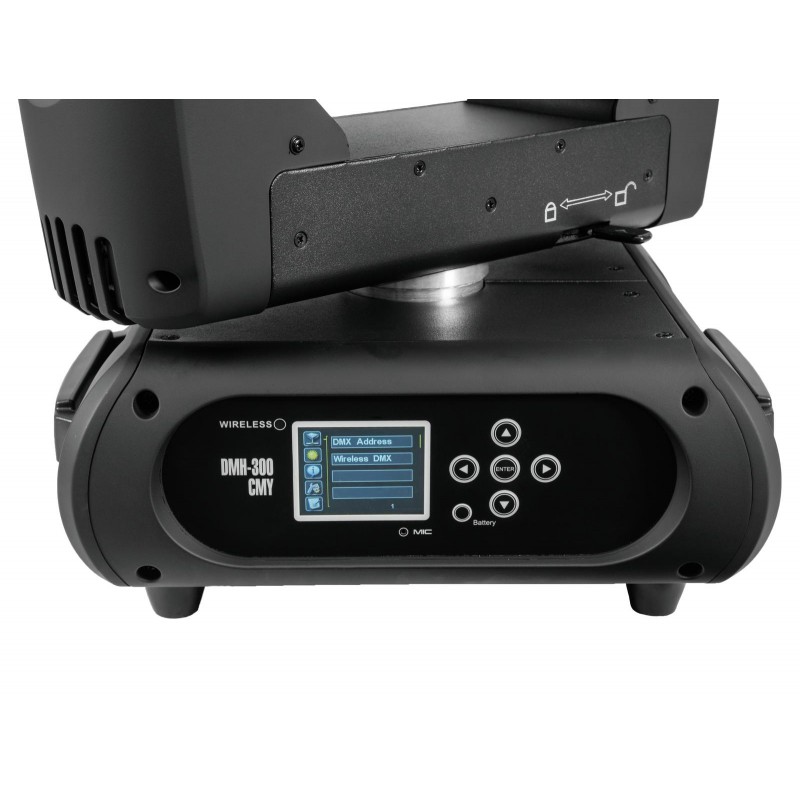

Control board with graphic LCD and foil-keyboard for adjusting the DMX-starting address, PAN/TILT reverse, reset
DMX-controlled operation or stand-alone operation with Master/Slave function
The scenes can be modified via the Control Board or via an external controller and loaded into the memory
Number of scenes can be changed individually
Software upload by optional accessories via DMX link
Power connection via Neutrik PowerCon jack and included power cable
ESDC function (Easy Service Data Check) with battery-buffered control board for operation time readouts etc. (the Li-Ion battery 3.7V, AAA, 10440 is not included)
DMX control via any standard DMX controller
LED: 1 x COB (chip-on-board) CW
CMY; Color wheel 8 dichroic filters plus open
Can be operated in 19; 21; 28; 29 CH mode
Control: W-DMX by wireless solution upgradeable; Stand-alone; DMX; Sound to light via Microphone; RDM
Projection: flicker-free
Effect: Gobo effect; Single Beam; Strobe effect
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
340 W
IP classification:
IP20
Power connection:
Mains input PowerCON (blue), mounting version Power supply cord with safety plug (provided)
LED:
1 x COB (chip-on-board) CW
Max. TILT movement:
Exact positioning (16 bit resolution) 265° Auto position correction (feedback)
Max. PAN movement:
Exact positioning (16 bit resolution) 540° Positioning switchable to 630° Auto position correction (feedback)
Equipment:
Gobo wheel with rotating gobos; Gobo wheel with static gobos; Prism 3-fold; Zoom motor-driven; Focus motor-driven; Frost filter; Iris
Color generation:
CMY; Color wheel 8 dichroic filters plus open
Gobos:
Gobo wheel with static gobos, 7 gobos and open Gobo wheel with rotating gobos, 7 gobos and open outside diameter 27mm image diameter 22mm Gobos changeable
DMX channels:
19; 21; 28; 29

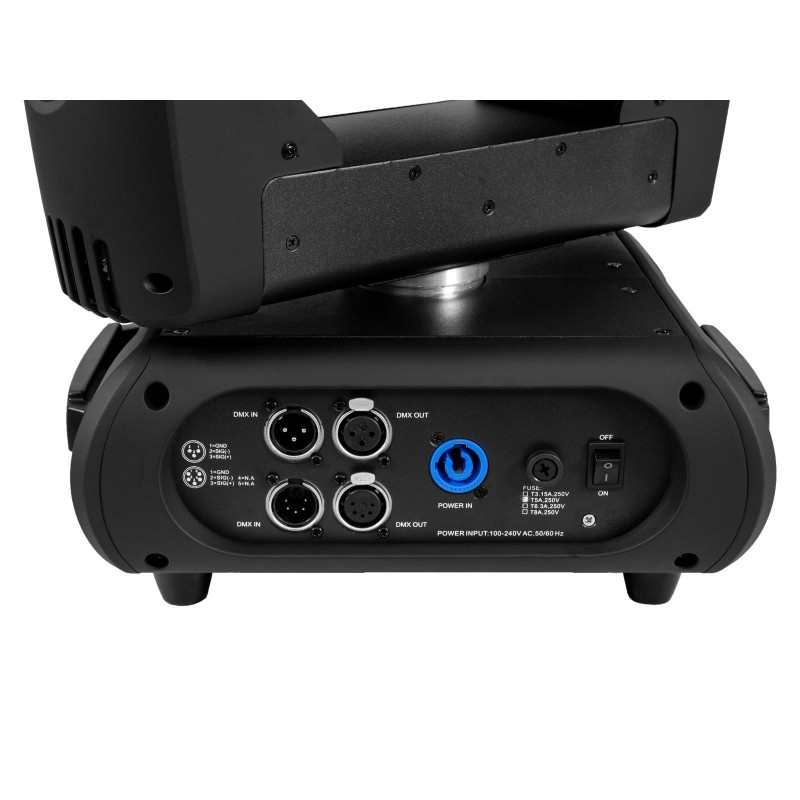

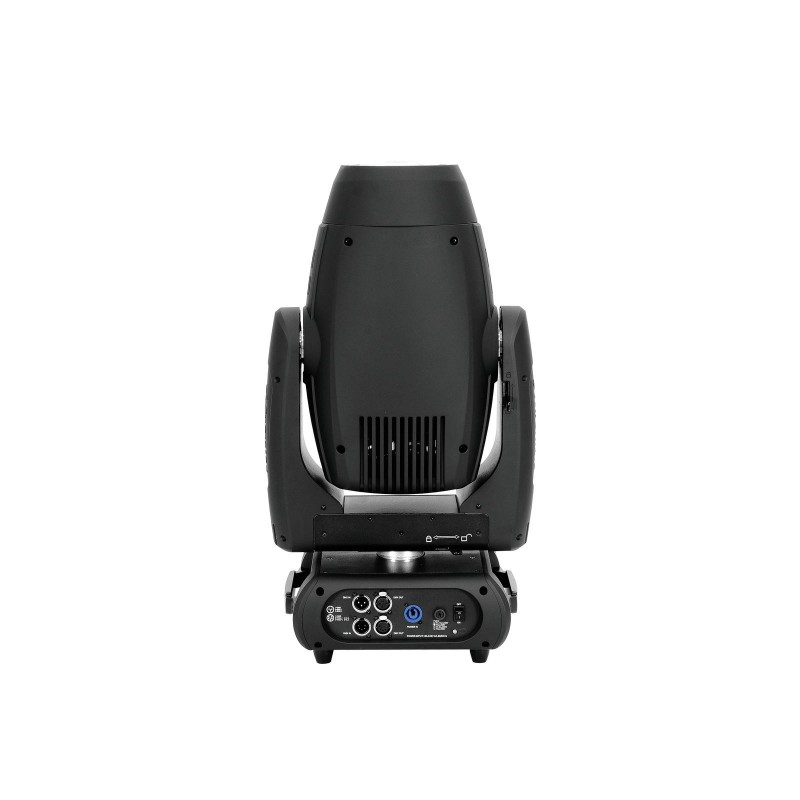

DMX input:
1 x 3-pin XLR (M) mounting version 1 x 5-pin XLR (M) mounting version
DMX output:
1 x 3-pin XLR (F) mounting version 1 x 5-pin XLR (F) mounting version
Cooling:
temperature-controlled fan
Control:
W-DMX by wireless solution upgradeable Stand-alone DMX Sound to light via Microphone RDM
