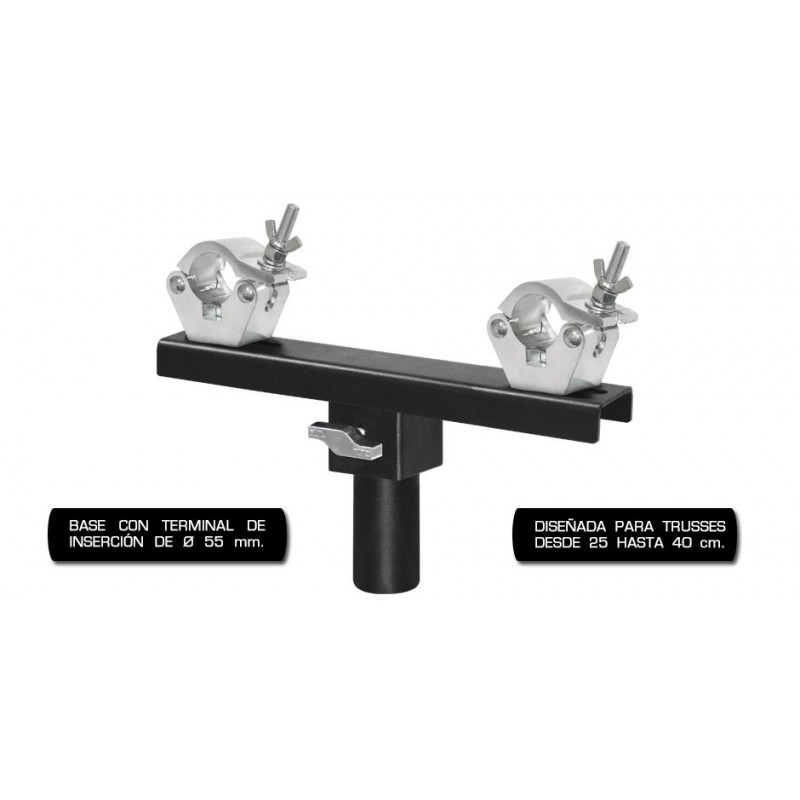

Adjustable truss base, equipped with aluminum clamps. Provided with a Ø 55 mm male insert terminal.

- Its adjustable system allows its use for trusses of different sizes: truss from 250 mm to 400 mm.
- Equipped with two rotating aluminum clamps, in this way the trusses can be placed in the desired position, offering the professional multiple mounting options.
- The adapter is made of steel with a 5mm “U” shaped profile for greater resistance and aesthetics (non-deformable). Rounded edges to avoid damage (no sharp edges)
- The Ø 55 mm terminal is provided with a square bushing, which prevents the end of the tower section from fracturing.
- The adapter is fixed to the lifting tower thanks to the ergonomically designed metal knob.
- Finished in textured black anti-scratch paint.

Valid for lifting towers Ref. ELC-770 and ELC-780

• Net Weight: 3,600 Kg
• Dimmable: Yes
• Rotary: Yes
• For trusses: From 250 to 400 mm
• Terminal: Ø 55 mm male
• Clamp: For tubes with an external diameter from 45 mm to 52 mm. WLL: 500 kg
• Color: Black
• Material: Structure: Steel / Clamp: Aluminum
