For diameters: Ø 50 x 3 mm
Alloy: EN-AW 6082 T6
Regulations: DIN 4112, DIN 4113; BS 8118

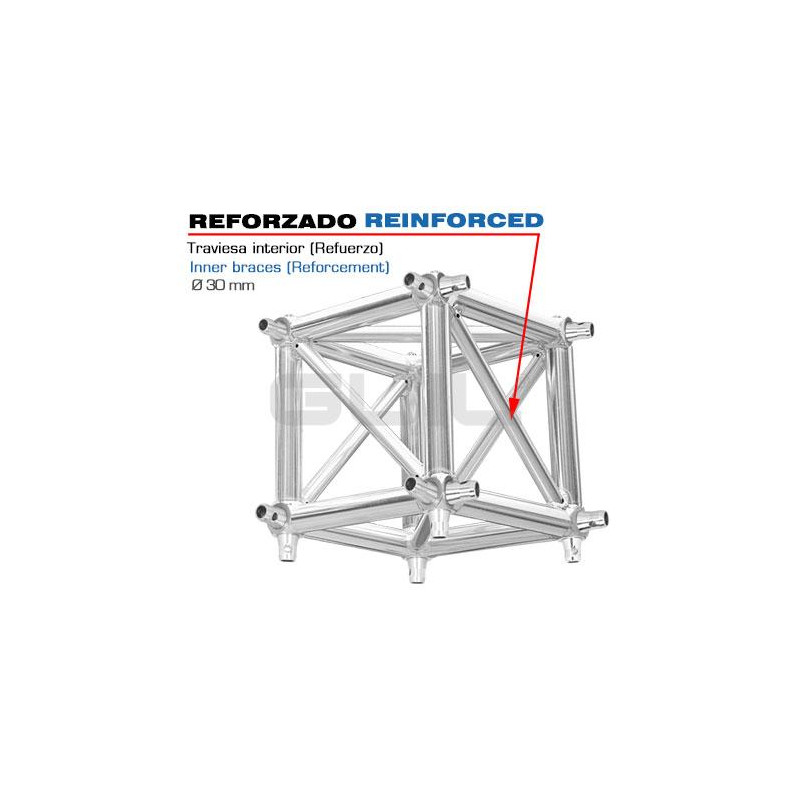

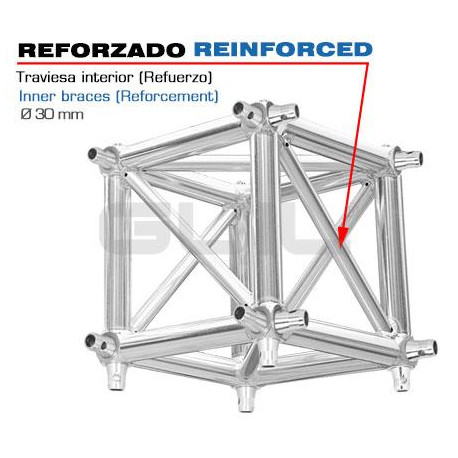

Die made of aluminum with Ø50 x 3 mm tubes (Alloy: 6082 T6 according to UNE-EN 573 standard) specially designed to achieve any shape in the assembly of the structure without the need to use any additional element.

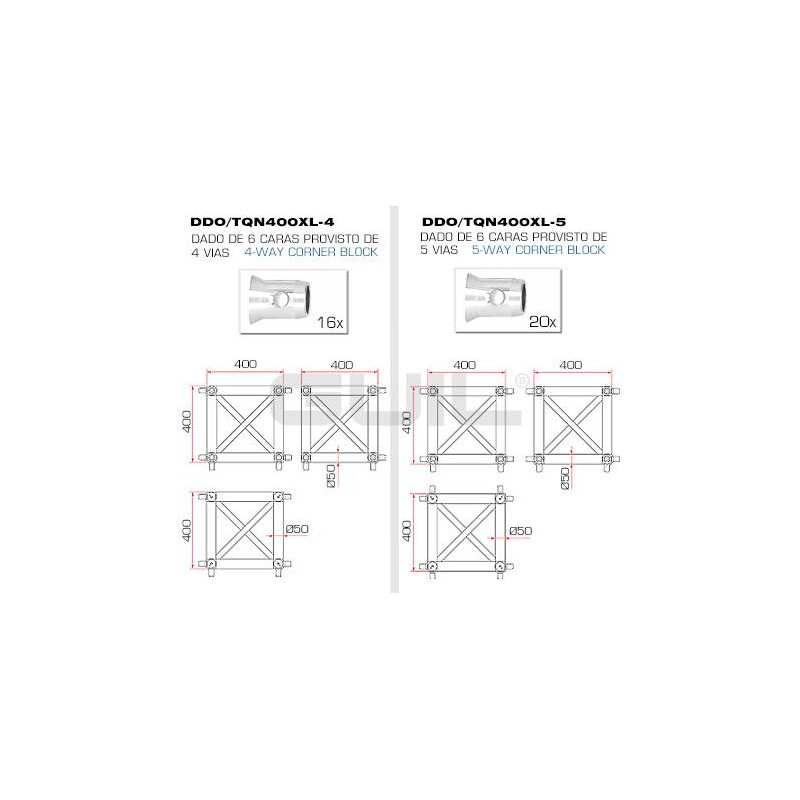

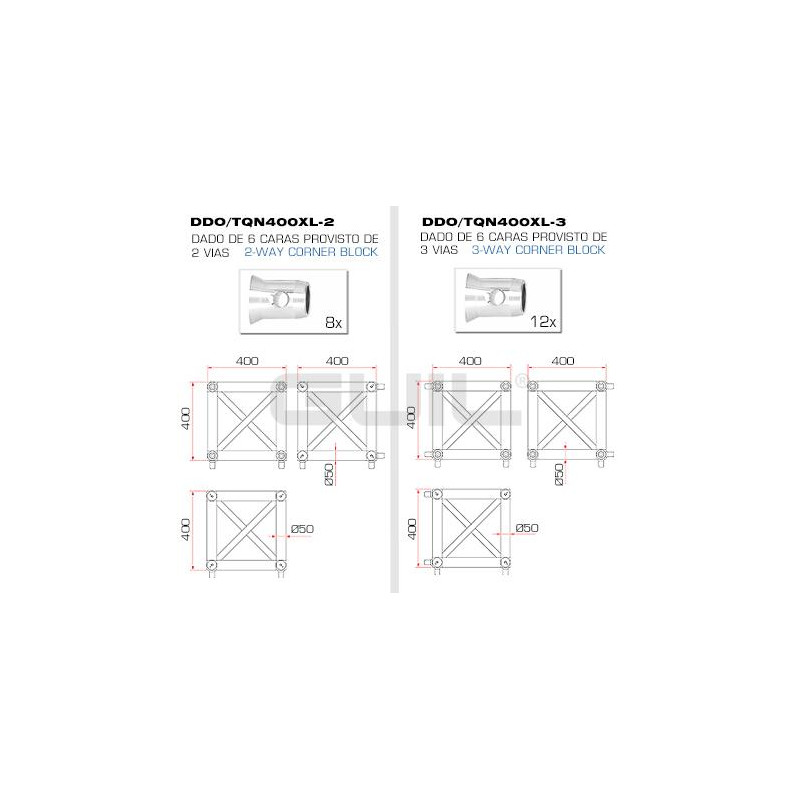

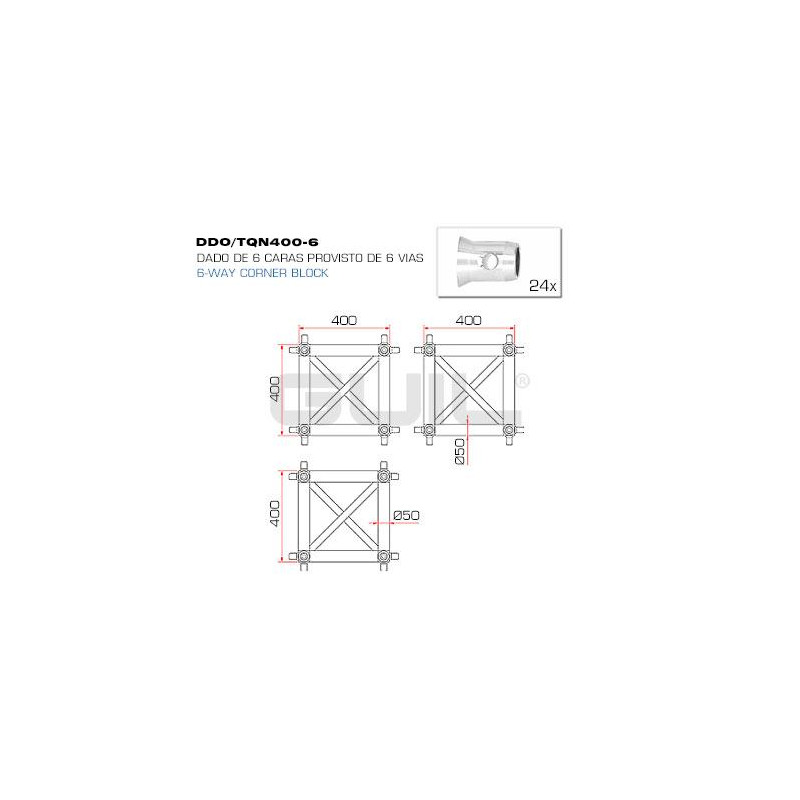

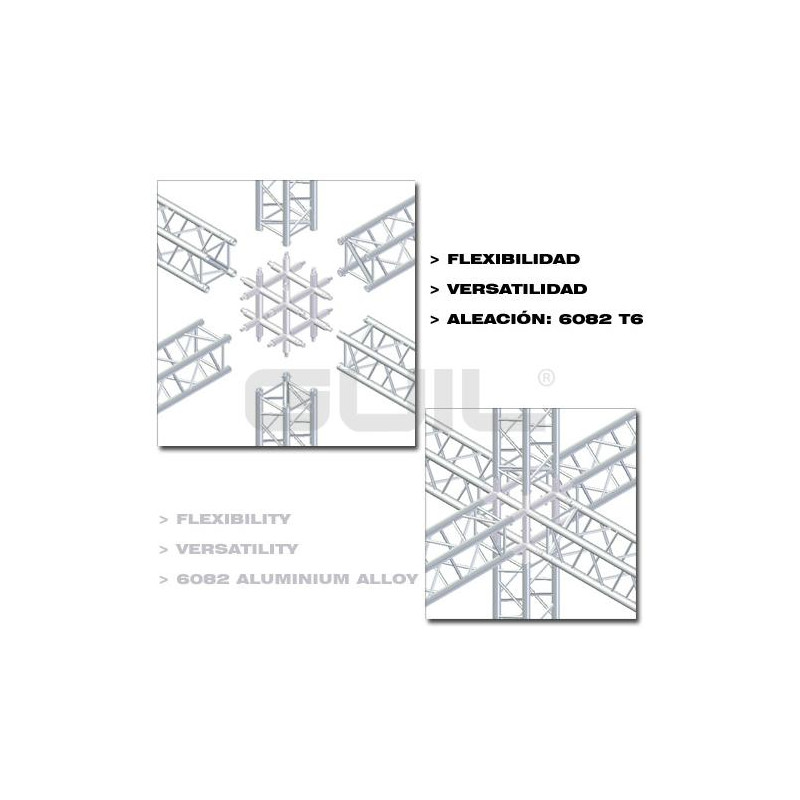

The DDO / TQN400XL 6-sided die allows multiple configurations using as many lanes (2, 3, 4, 5 and 6) as necessary.
