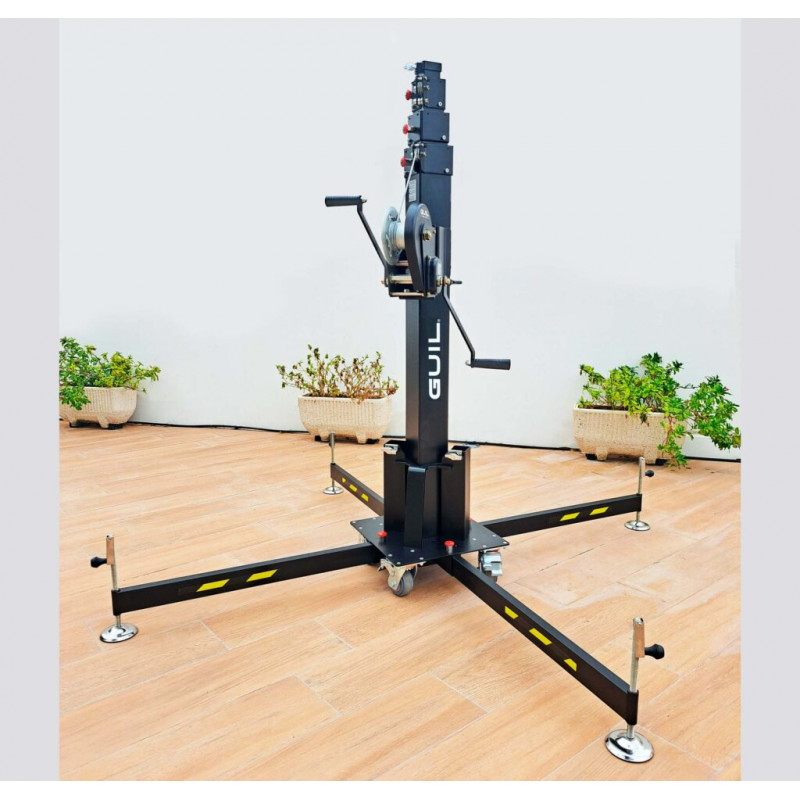

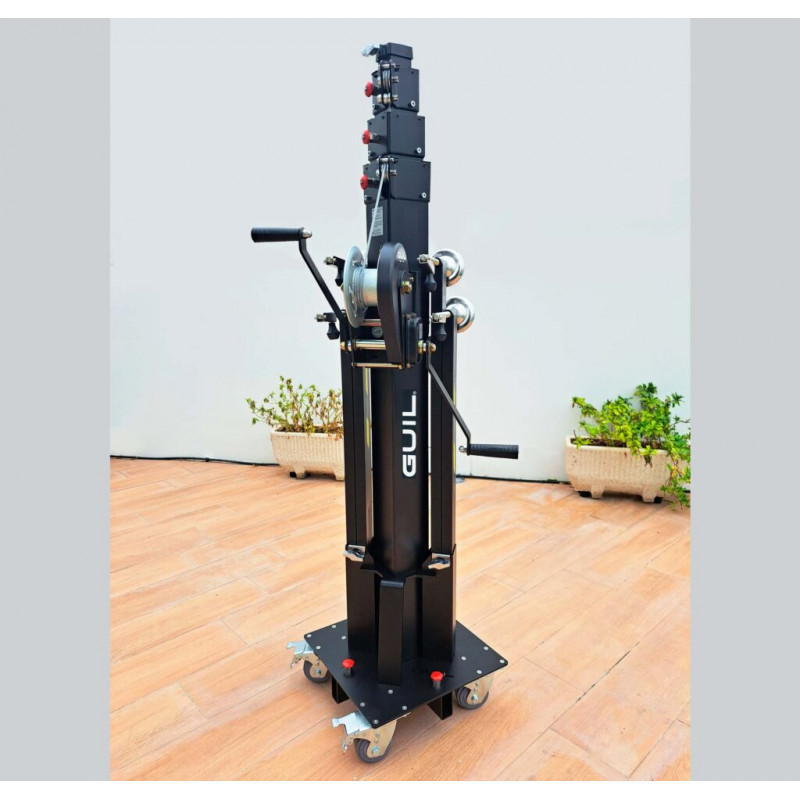

The lifting tower ref. ELC-785 is provided with two security systems; guaranteeing maximum reliability during the lifting and lowering of loads:

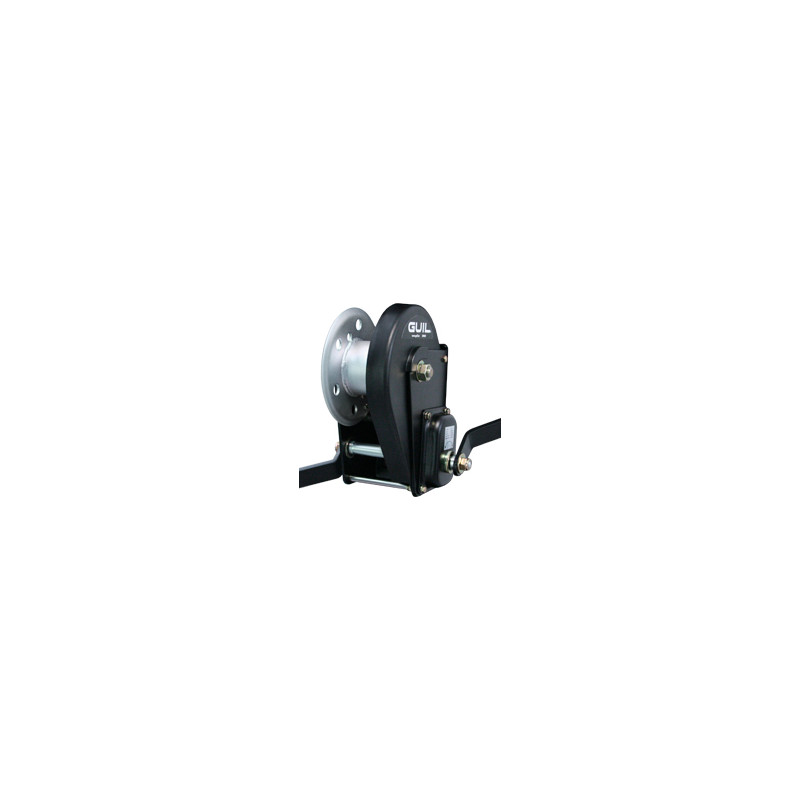

1. Double crank self-braking winch
The self-braking system of the winch prevents recoil and stops the load at the desired height; Once the desired height is reached, when you stop operating the winch lever, its brake mechanism begins to act, preventing recoil and paralyzing the load.

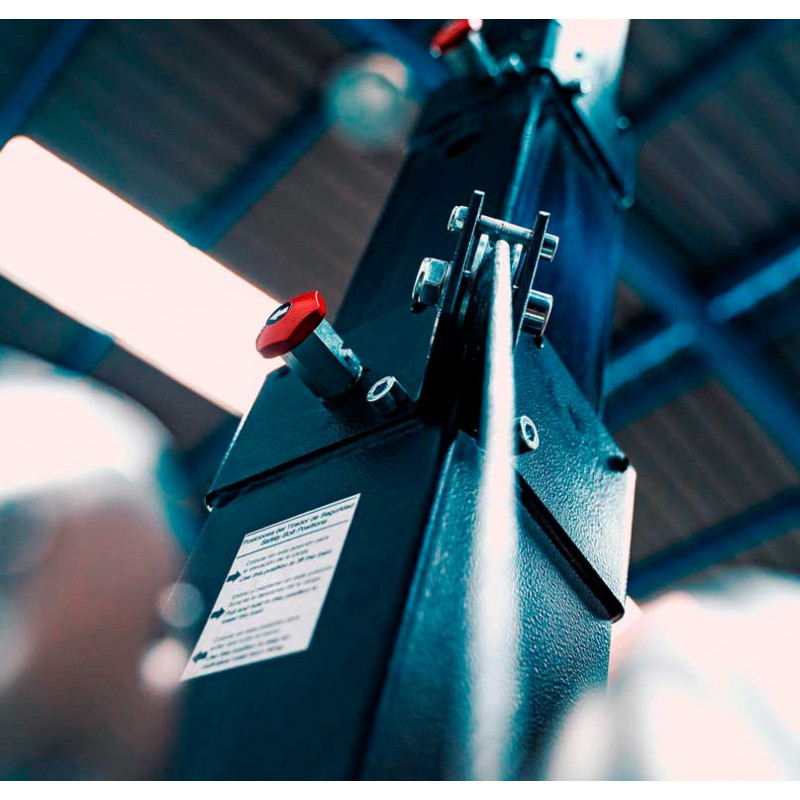

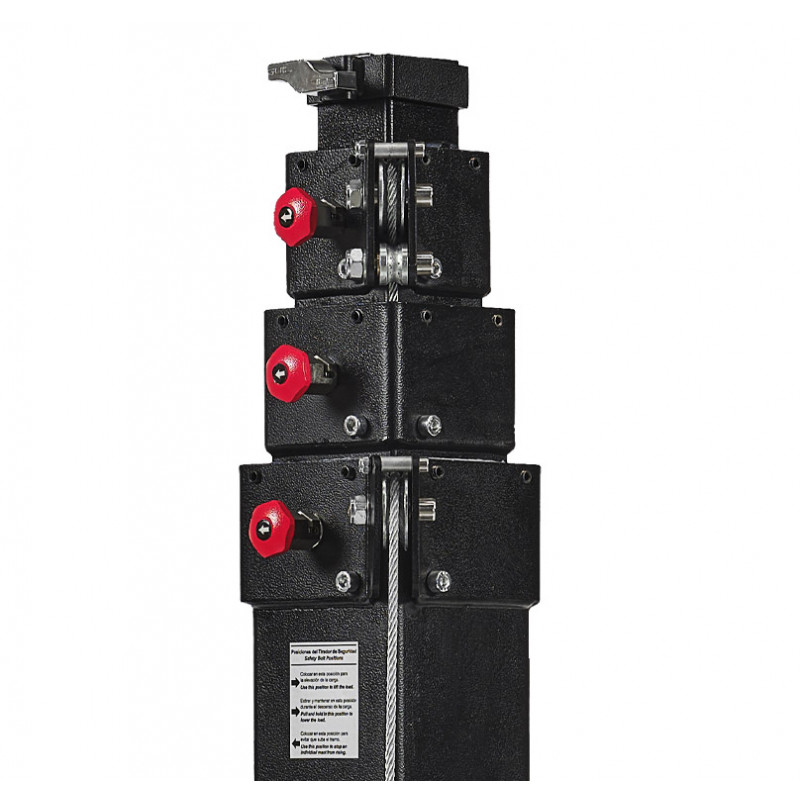

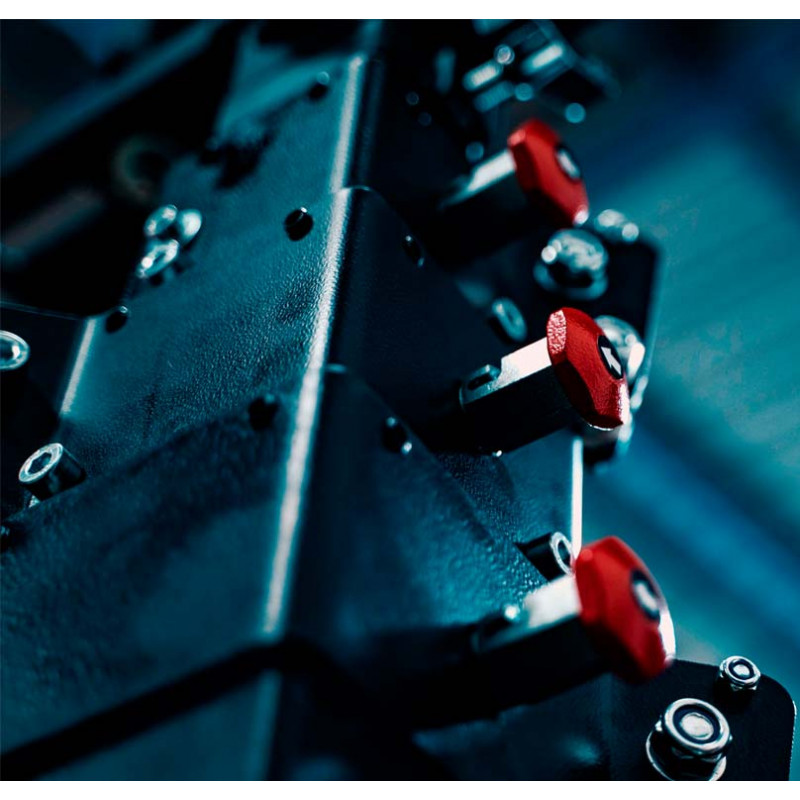

2. ASB System (Automatic Locking Security System)
Zipper mechanism with safety pins. In the extreme case of cable breakage, the system would immediately block the tower section, preventing any movement of the load.

The construction of this elevator is carried out with the most advanced welding equipment that guarantees maximum safety and resistance, meeting at all times the requirements of solidity, maneuverability and lightness necessary for lifting loads.

The ELC-785 lifting towers meet the safety requirements according to the following standards and regulations:

• DGUV Regulation 17 & 18
• DGUV Rule 115-002
• DIN 56950-1
• 2006/42/EC

VERY IMPORTANT: ELC TOWERS ARE NOT MANUFACTURED FOR LIFT OF PEOPLE.
