Telescopic leg (50 x 50 mm) with leveler for pallets TM440, TM440XL and TM300

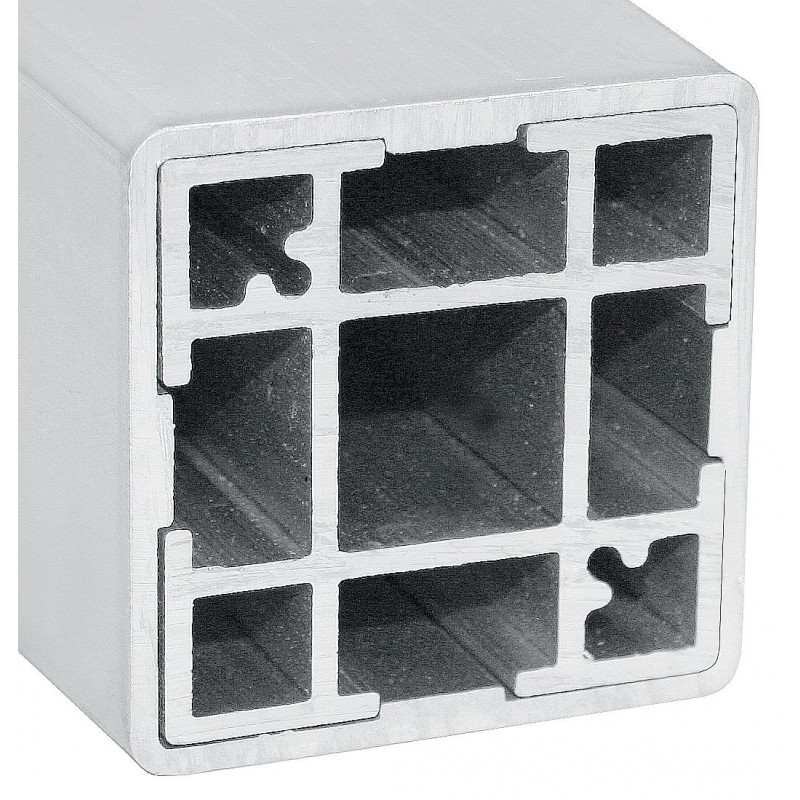

Legs with an outer profile of 50 x 50 mm, made of high-strength aluminum, adjustable by metal pressure knob and spindle made of stainless steel.

Its telescopic system allows to obtain multiple heights with a single set of legs (regulation millimeter to millimeter), saving possible slopes (stairs, ramps, etc.).

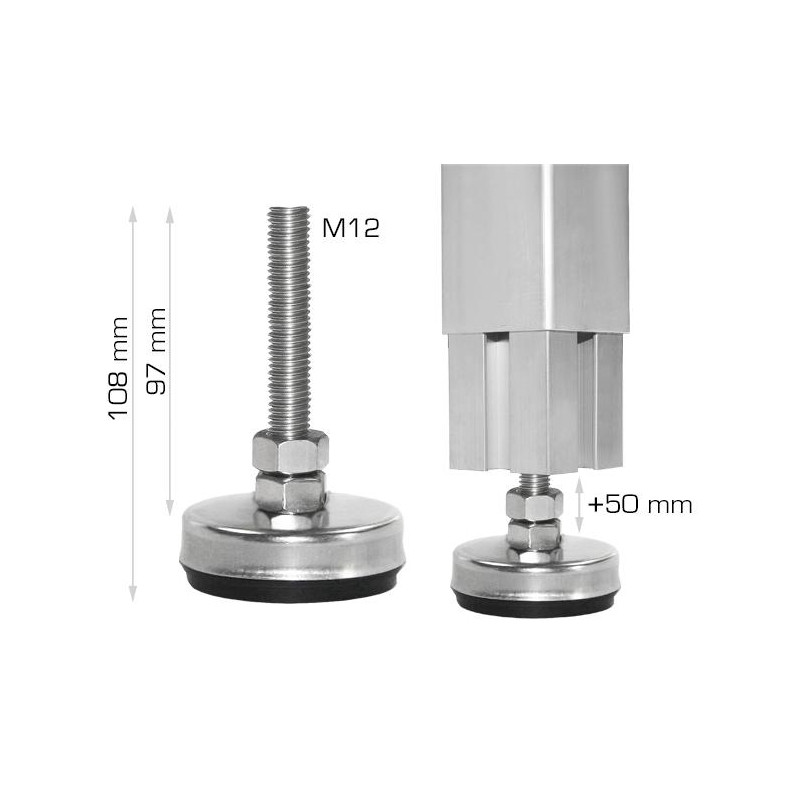

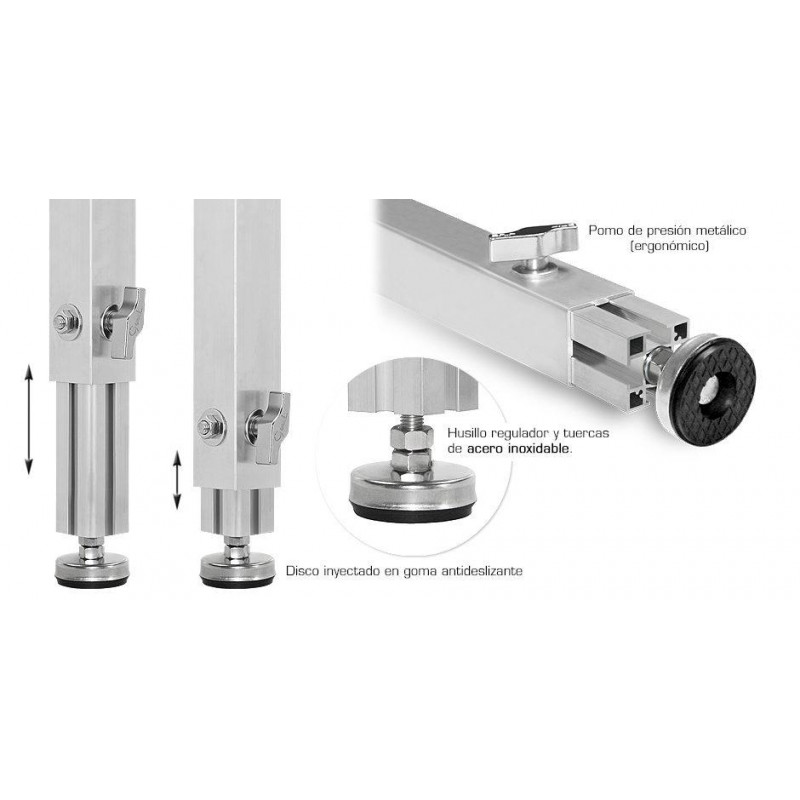

The height of the legs is fixed by a double safety closure; With the metal pressure knob is adjusted and the desired height is fixed and as an additional safety measure, the legs are locked by nut, thus ensuring a total fixation of the height of the legs. The final adjustment is made with the M12 stainless steel spindle.

The leg is equipped with a disc injected in non-slip rubber, guaranteeing a perfect fit on all types of surfaces and avoiding marking/damaging the floor (parquet, wood, etc).

The TM440, TM440XL and TM300 pallets have a fast and reinforced leg anchorage system. The legs are fixed to the inner frame brackets by pressing the square-embossed wedge using the ergonomically designed metal knob; ensuring maximum fixation and strength.

Important:

From the size 700-1200 mm:

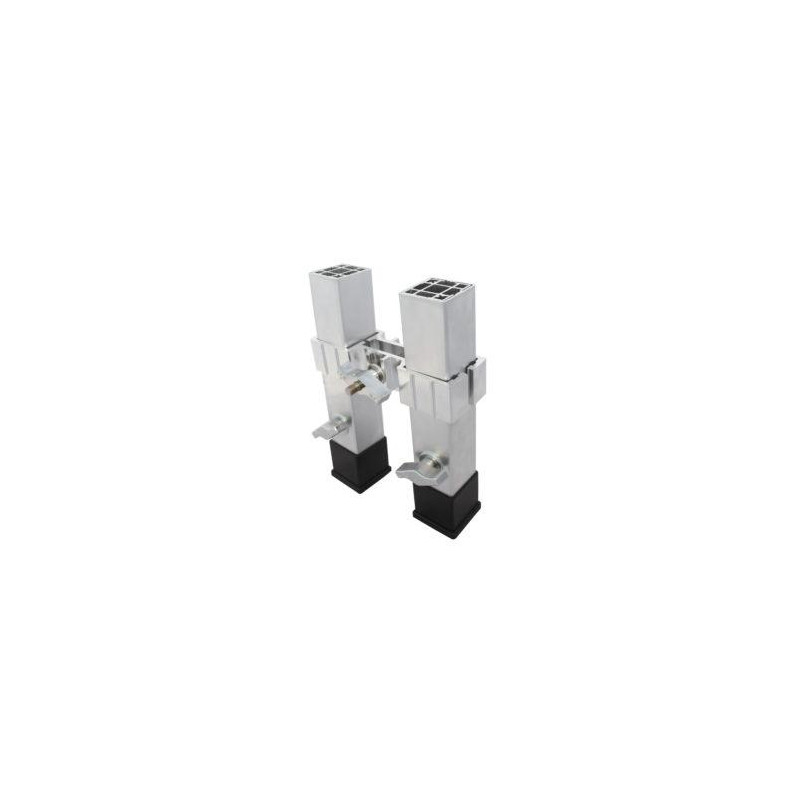

For every 4 legs Ref. PTA5-D is included free of charge 1 leg-foot junction system (Ref. TMU-04, stainless)

Available legs of special heights; for more information contact our sales department.

Note: GUIL manufactures other 50 x 50 mm leg models (Request price for the model that best suits your needs):

– Fixed legs (ref. PTA5-F)

– Fixed legs with leveler (ref. PTA5-N)

– Telescopic legs (ref. PTA5-T)

– Telescopic legs with pin and leveler (ref. PTA5-P)
