FIXED LEG FOR TM440 AND TM440XL RACKS

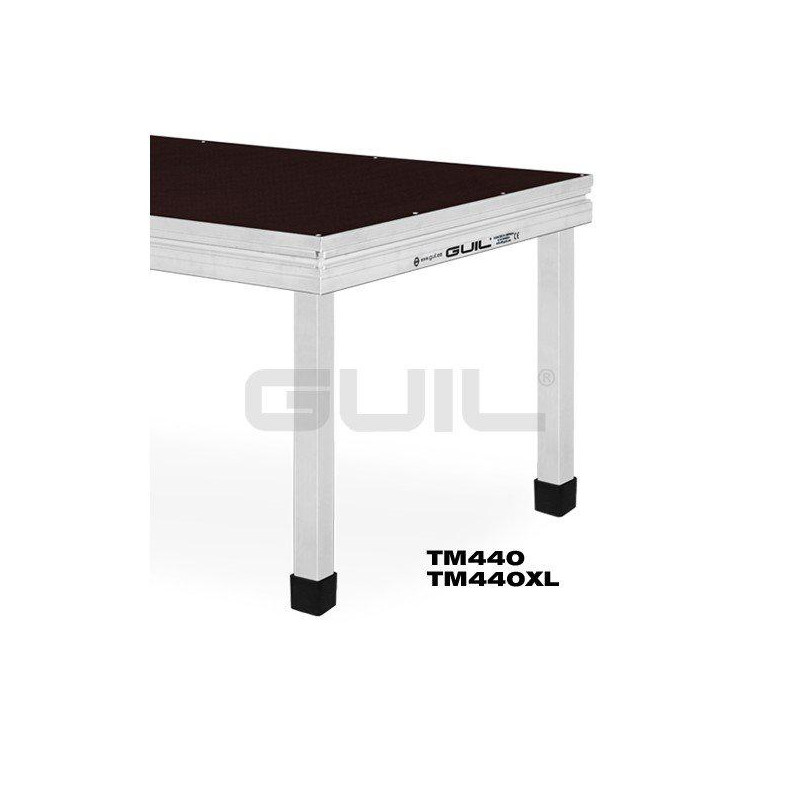

Platform leg TM440 and TM440XL made of high resistance aluminum (Alloy: EN-AW 6082 T6 according to UNE-EN573 standard) with reinforced profile of 50 x 50 mm.

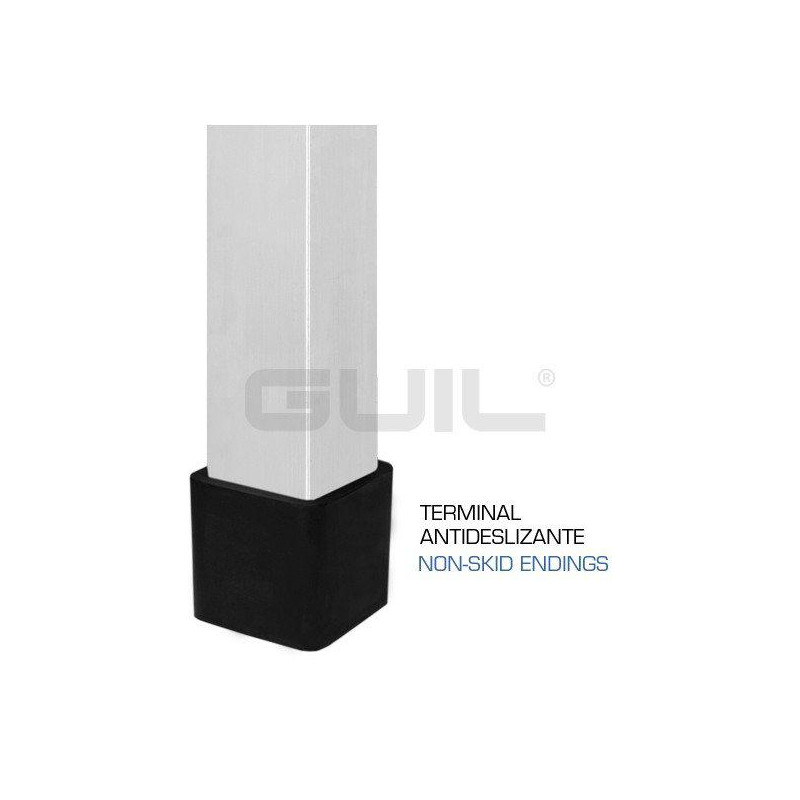

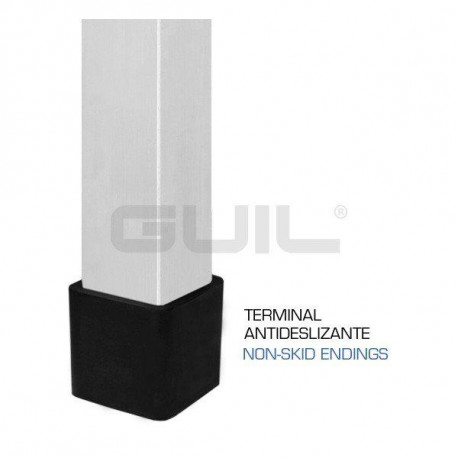

The leg is provided with a terminal that prevents any slippage, guaranteeing a perfect fit to all types of surfaces.

The TM440 and TM440XL decks have a very fast and reinforced leg anchoring system. The legs are fixed to the internal brackets of the frame by pressing the embossed wedge of the bracket using the M10 metal knob.

> Legs of any size are manufactured, please contact the commercial department for more information.

Note: GUIL also manufactures telescopic legs that allow the stage height to be regulated millimeter by millimeter.

For greater maneuverability GUIL manufactures the following accessories:
- Set of four bushings with wheels for adaptation to any size of telescopic legs, Ref. CQR / 440.

• Material: Aluminum
• Dimmable: No
• Alloy: EN-AW 6082 T6
• Main tubes: 50 x 50 mm
