Telescopic leg (50 x 50 mm) with pin and leveler for TM440, TM440XL and TM300 platforms

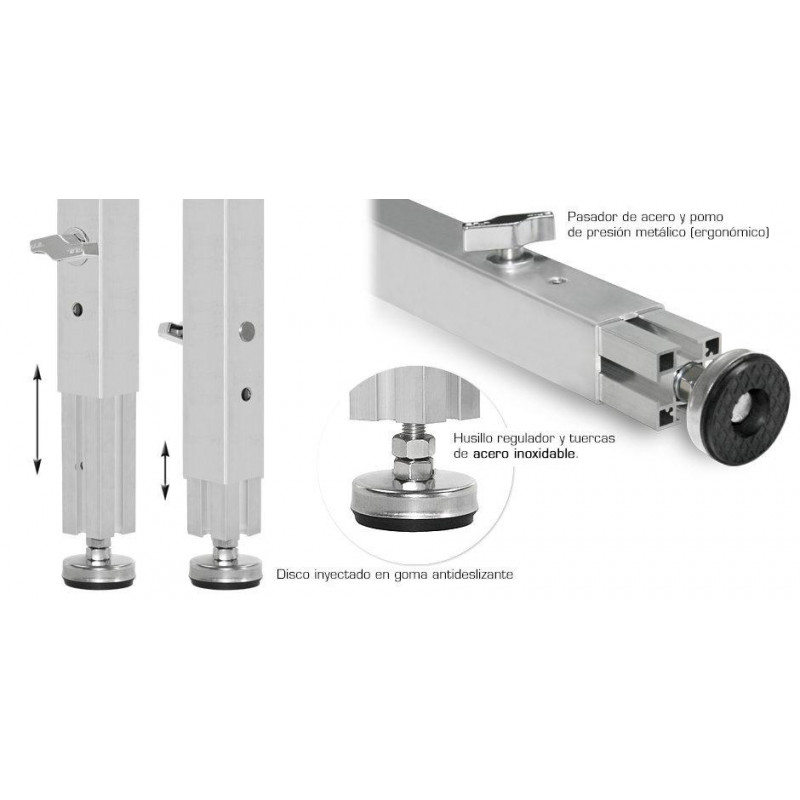

Legs with an external profile of 50 x 50 mm, made of high resistance aluminum, adjustable by means of a pin and a spindle made of stainless steel with a non-slip rubber terminal (adjustable up to 50 mm), guaranteeing a perfect fit to all types of surfaces.

Its telescopic system allows to obtain multiple heights with a single set of legs (regulation millimeter by millimeter), saving possible unevenness (stairs, ramps, etc.).

The height of the legs is fixed by means of a steel pin and a metallic pressure knob (ergonomic), ensuring total fixation of the height of the legs. The final adjustment is made with the M12 stainless steel spindle.

The leg is provided with a non-slip rubber injected disc, guaranteeing a perfect fit on all types of surfaces and avoiding marking / damaging the floor (parquet, wood, etc.).

The TM440, TM440XL and TM300 decks have a very fast and reinforced leg anchoring system. The legs are fixed to the internal brackets of the frame by pressing the embossed wedge of the bracket using the ergonomically designed metal knob; guaranteeing maximum fixation and resistance.

IMPORTANT:

From size 700-1200 mm:

For every 4 legs Ref. PTA5-P 1 leg-leg connection system is included free of charge (Ref. TMU-04, stainless)

Available legs of special heights; For more information contact our commercial department.

Note: GUIL manufactures other models of 50 × 50 mm legs: (Request a price for the model that best suits your needs)

- Fixed legs (ref. PTA5-F)

- Fixed legs with leveler (ref. PTA5-N)

- Telescopic legs (ref. PTA5-T)

- Telescopic legs with leveler (ref. PTA5-D)
