Guil - PTA5-T/20-25

PTA5-T/20-25

PTA5-T - 20-25cm 50 x 50mm TELESCOPIC PAW WITH RUBBER TERMINAL. ADJUSTABLE MILLIMETER TO MILLIMETER.

35.47€%1.33 You save 0.47€
35,00 €

Add to wishlist

In Stock

More info

features

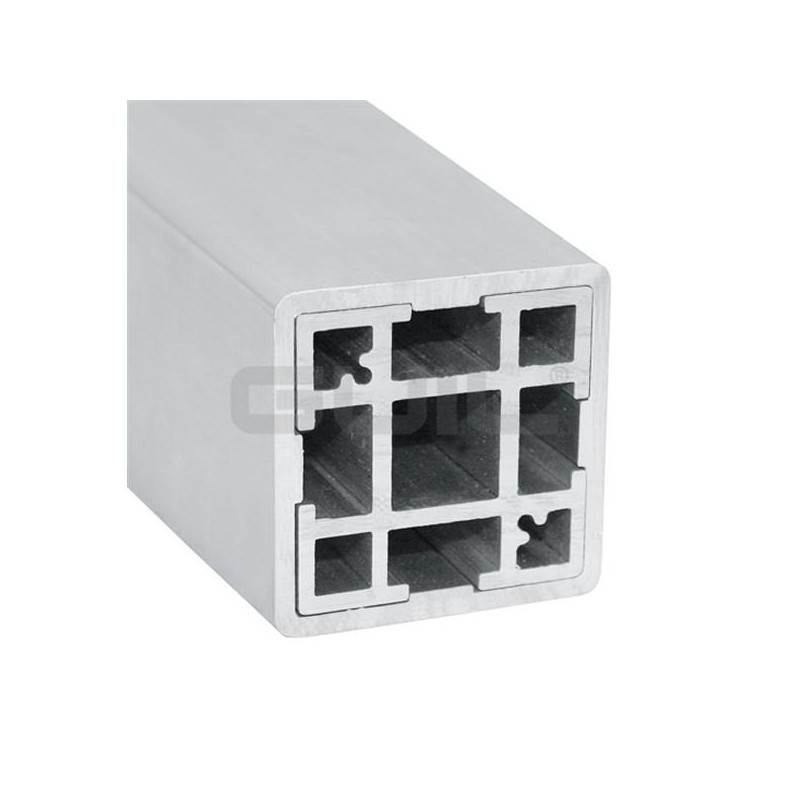

Legs with 50 x 50 mm outer profile, made of high strength aluminum. Provided with a terminal injected in non-slip rubber that prevents any movement; guaranteeing a perfect fit to all types of surfaces.

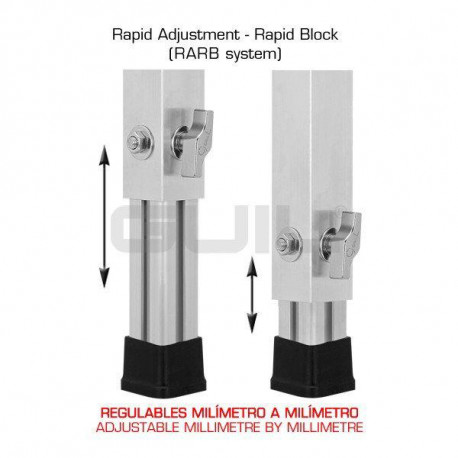

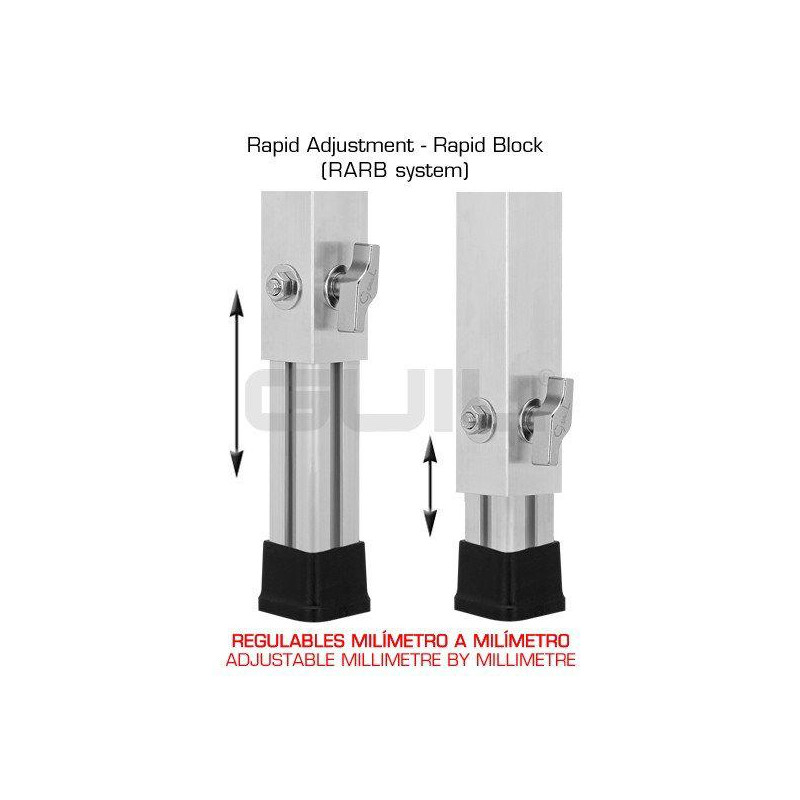

Its telescopic system allows to obtain multiple heights with a single set of legs (millimeter to millimeter adjustment), saving possible unevenness (stairs, ramps, etc.).

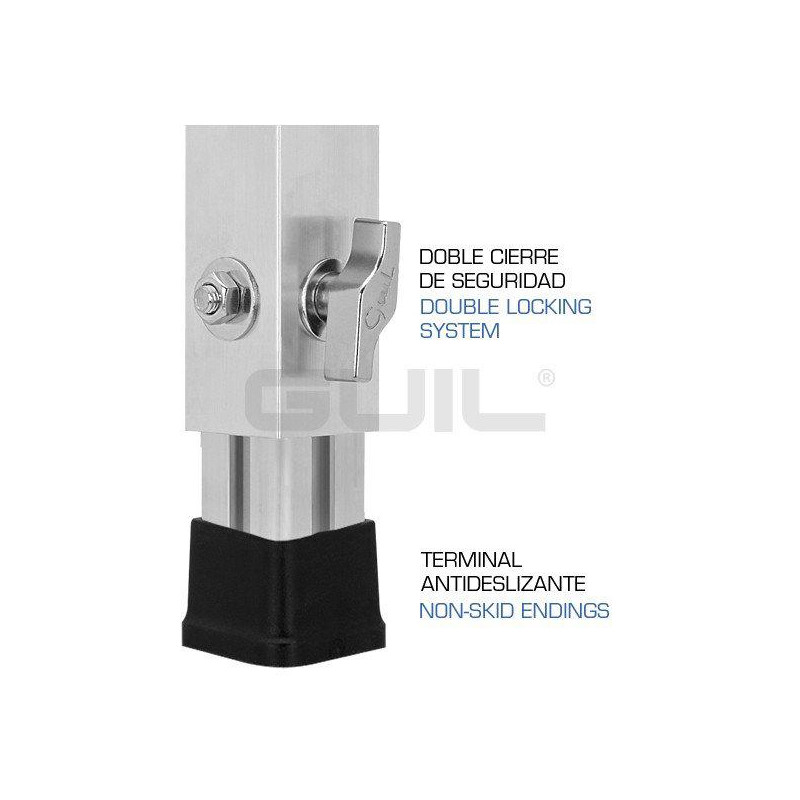

The height of the legs is fixed by a double safety lock; With the metal pressure knob, the desired height is adjusted and set and as an additional safety measure, the legs are locked by means of an M10 nut, thus ensuring a total fixation of the height of the legs.

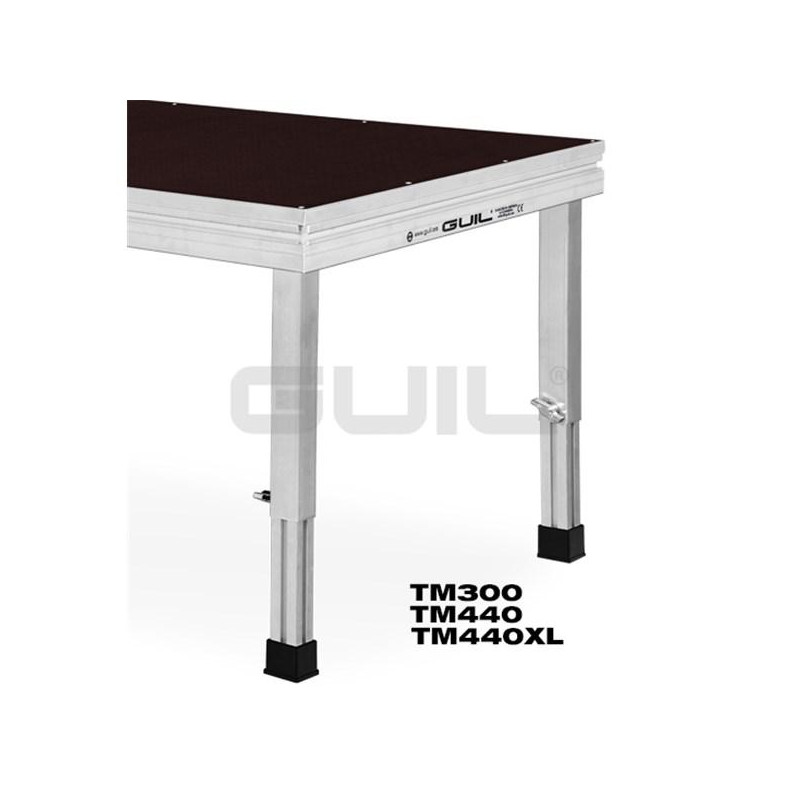

TM440, TM440XL and TM300 platforms have a very fast and reinforced leg anchoring system. The legs are fixed to the internal square brackets by pressing the embossed wedge of the square using the ergonomically designed metal knob; guaranteeing maximum fixation and resistance.


IMPORTANT:
From measurement 700-1200 mm:
For each 4 legs Ref. PTA5-T 1 leg-to-leg joint system is included free of charge (Ref. TMU-04, stainless)





Data sheet
  • Adjustable: Yes
  • Main tubes: 50 x 50 mm
  • Material: Aluminum
