Telescopic leg (60 x 60 mm) with leveler for TM442XL platforms

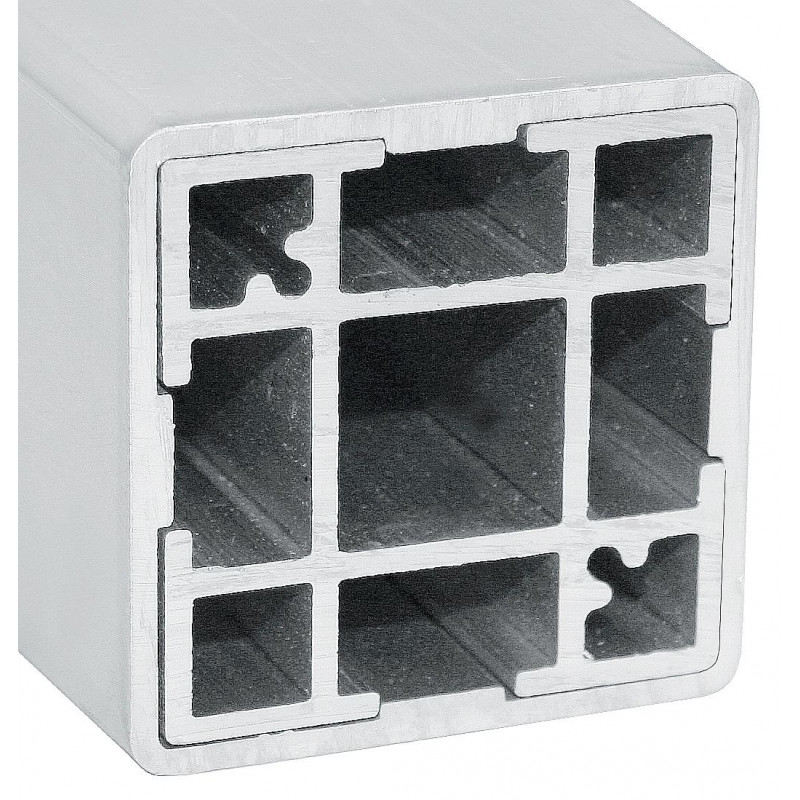

Legs with 60 x 60 mm external profile, made of high resistance aluminum, adjustable by means of a metal pressure knob and a spindle made of stainless steel.

Its telescopic system allows to obtain multiple heights with a single set of legs (regulation millimeter by millimeter), saving possible unevenness (stairs, ramps, etc.).

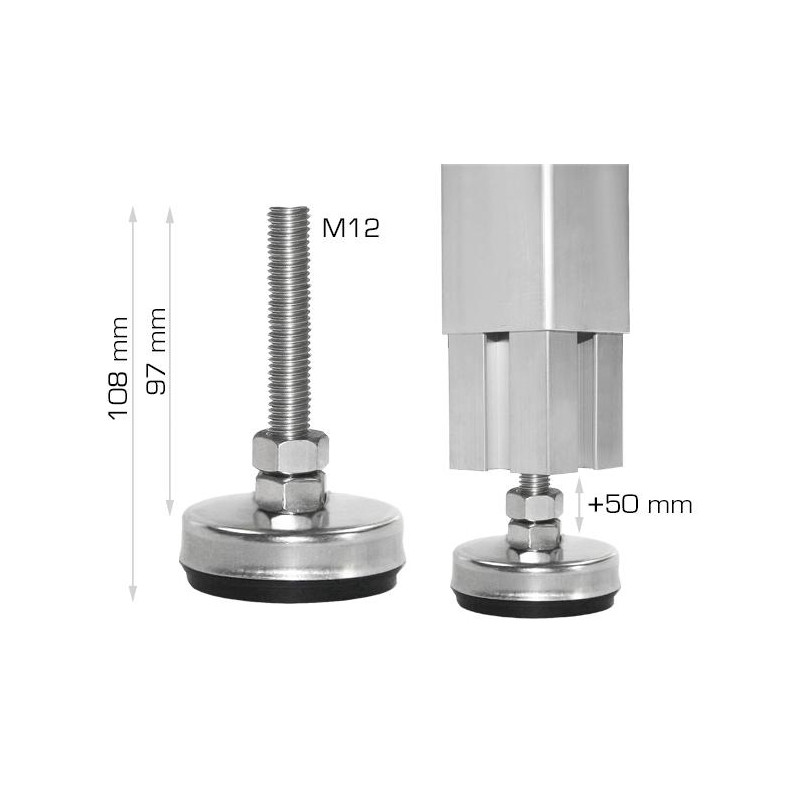

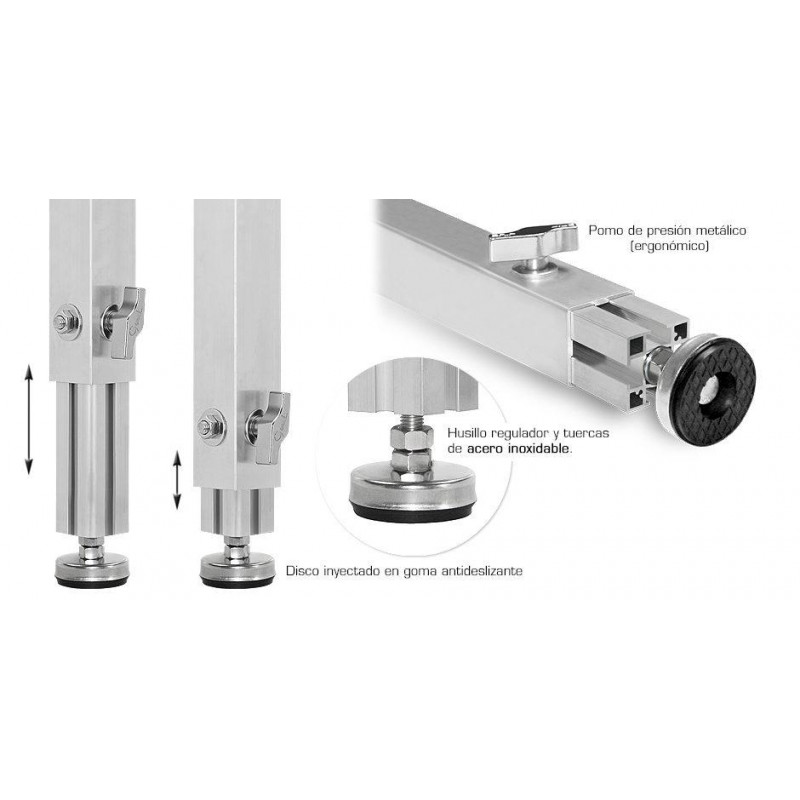

The height of the legs is fixed by means of a double safety lock; the desired height is adjusted and fixed with the metal pressure knob and, as an additional safety measure, the legs are locked by means of a nut, thus ensuring total fixing of the height of the legs. The final adjustment is made with the M12 stainless steel spindle.

The leg is provided with a non-slip rubber injected disc, guaranteeing a perfect fit on all types of surfaces and avoiding marking / damaging the floor (parquet, wood, etc.).

TM442XL pallets have a reinforced and fast leg anchoring system. The legs are fixed to the internal brackets of the frame by pressing the embossed wedge of the bracket using the ergonomically designed metal knob; guaranteeing maximum fixation and resistance.

Available telescopic legs of special heights; For more information contact our commercial department.

Note: GUIL manufactures other models of 60 x 60 mm legs (Request a price for the model that best suits your needs):

- Fixed legs (ref. PTA6-F)

- Fixed legs with leveler (ref. PTA6-N)

- Telescopic legs (ref. PTA6-T)

- Telescopic legs with leveler (ref. PTA6-P)
