Telescopic leg (60 x 60 mm) for the TM442XL platform.

• Adjustable: Yes
• Main tubes: 60 x 60 mm
• Material: Aluminum
• Alloy: EN-AW 6082 T6

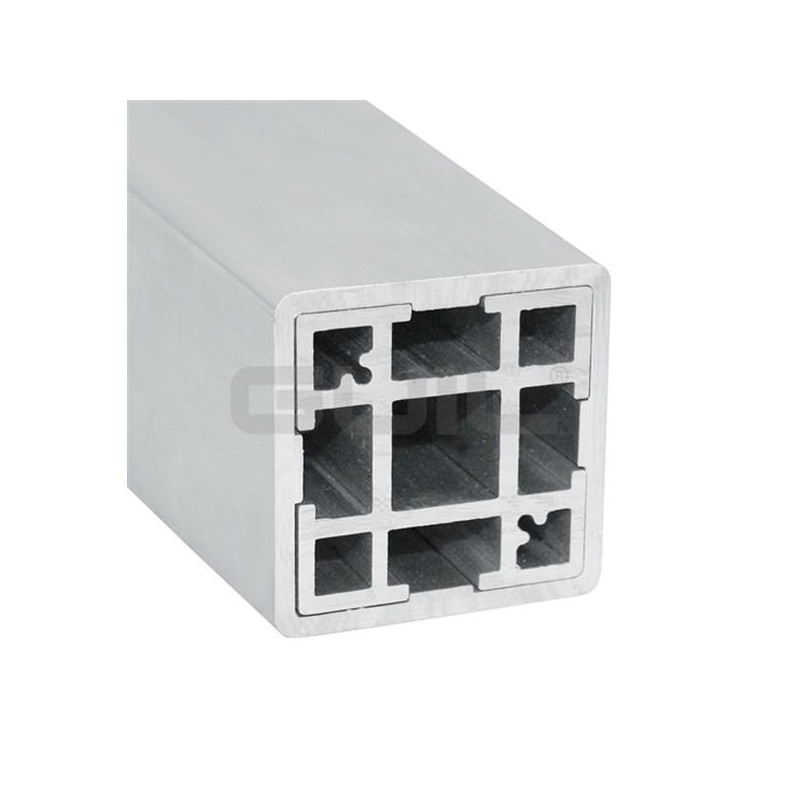

Legs with 60 x 60 mm outer profile, made of high-strength aluminum (Alloy: EN-AW 6082 T6 according to UNE-EN573) Provided with a terminal injected in non-slip rubber that prevents any movement; guaranteeing a perfect fit to all types of surfaces.

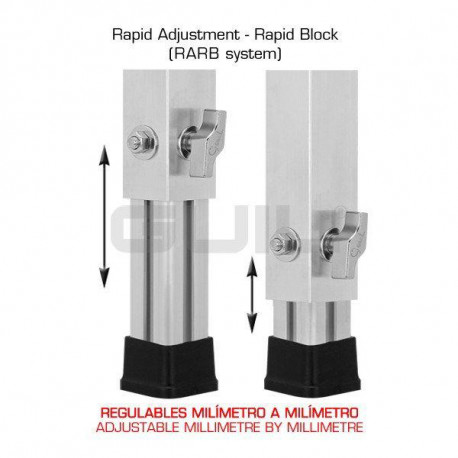

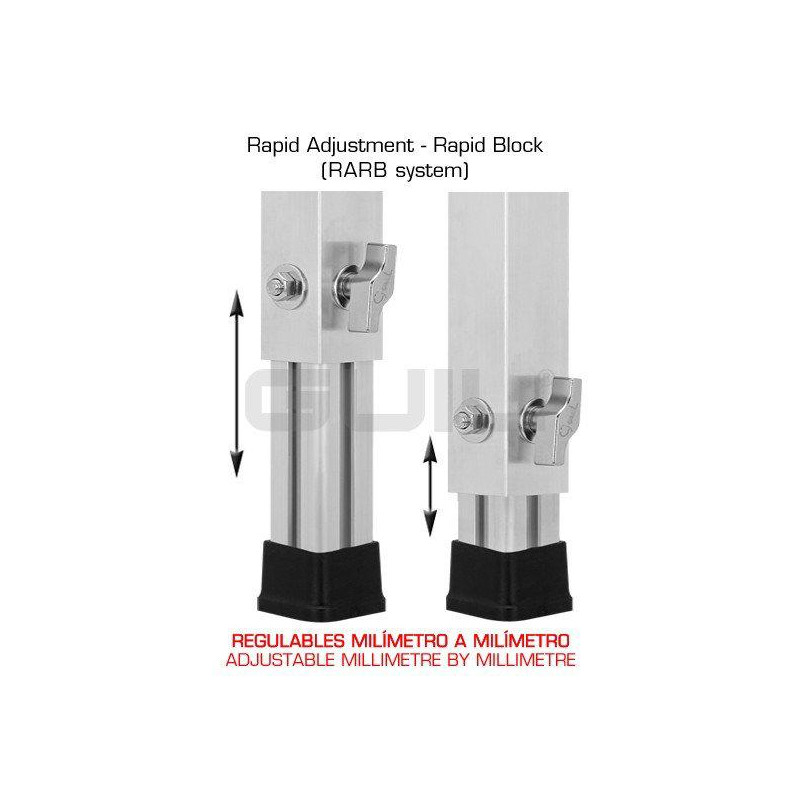

Its telescopic system allows multiple heights to be obtained with a single set of legs (millimeter to millimeter adjustment), saving possible unevenness (stairs, ramps ...).

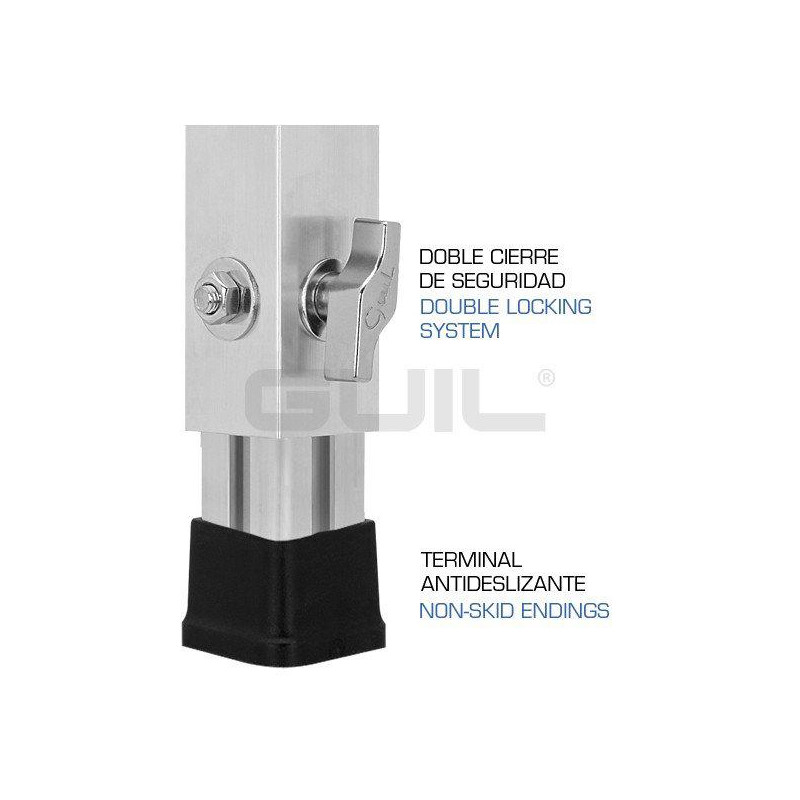

The height of the legs is fixed by a double safety lock; With the metal pressure knob, the desired height is adjusted and set and as an additional safety measure, the legs are locked by means of an M10 nut, thus ensuring a total fixation of the height of the legs.

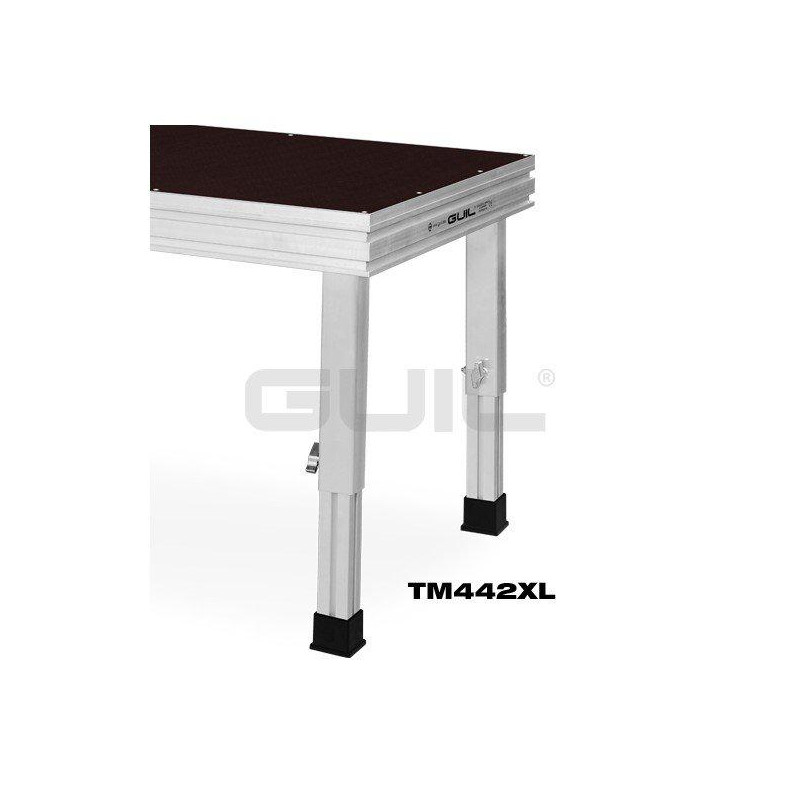

TM442XL platforms have a very fast and reinforced leg anchoring system. The legs are fixed to the internal squares of the frame by means of the ergonomically designed metal knob; guaranteeing maximum fixation and resistance.

The telescopic legs have the following references:

Available telescopic legs of special heights; For more information contact our commercial department.

> For greater maneuverability, GUIL manufactures the following accessories:

- Set of four casings with wheels for adaptation to any size of telescopic legs, Ref. CQR / 6 .
- Set of four telescopic legs with wheels, Ref. PCR / 6 .

Note: GUIL manufactures other models of 60 x 60 mm legs: (Request price for the model that best suits your needs)

- Fixed legs (ref. PTA6-F )
- Fixed legs with leveler (ref. PTA6-N )
- Telescopic legs with leveler (ref. PTA6-D )
- Telescopic legs with pin and leveler (ref. PTA6-P )
