Guil - TMD-09

TMD-09

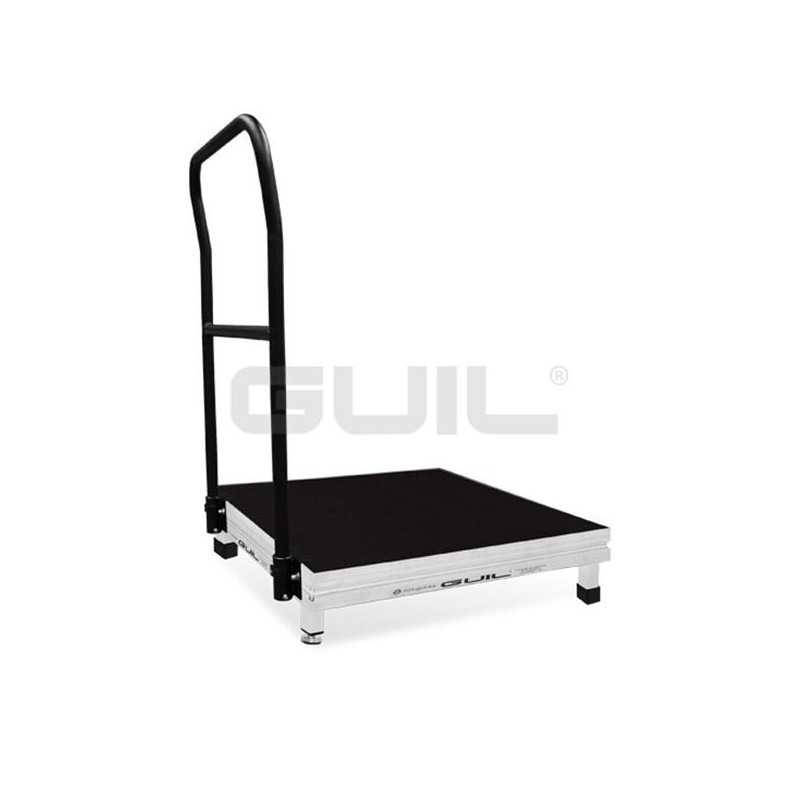

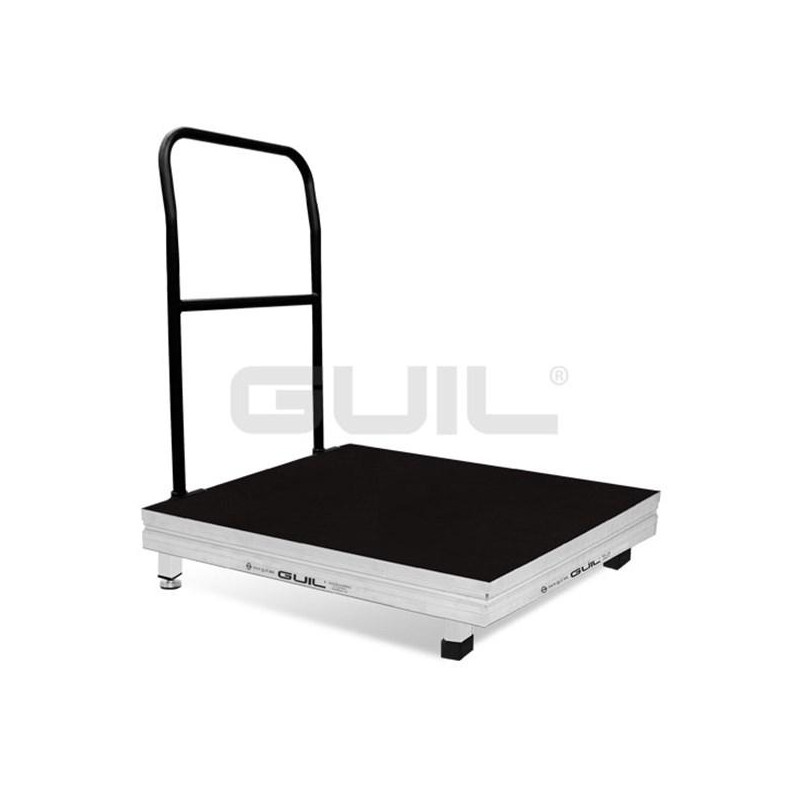

Aluminum platform for director 1 x 1 m with remover. Includes 4 fixed legs for a height of 20 cm (one with leveler) - Ref.TMD-09

611.22€%14.43 You save 88.22€
523,00 €

Add to wishlist

In Stock

More info

features

Aluminum platform for director 1 x 1 m with remover. Includes 4 fixed legs for a height of 20 cm (one with leveler) - Ref.TMD-09

Modular platform of high resistance of 1 x 1 m made of extruded aluminum - frame and telescopic legs - and 100% non-slip phenolic plywood WISA ® birch wood (WBP).

The TMD-09 platform includes a 72 x 110 cm (1 m) remover. Bonding systems included.

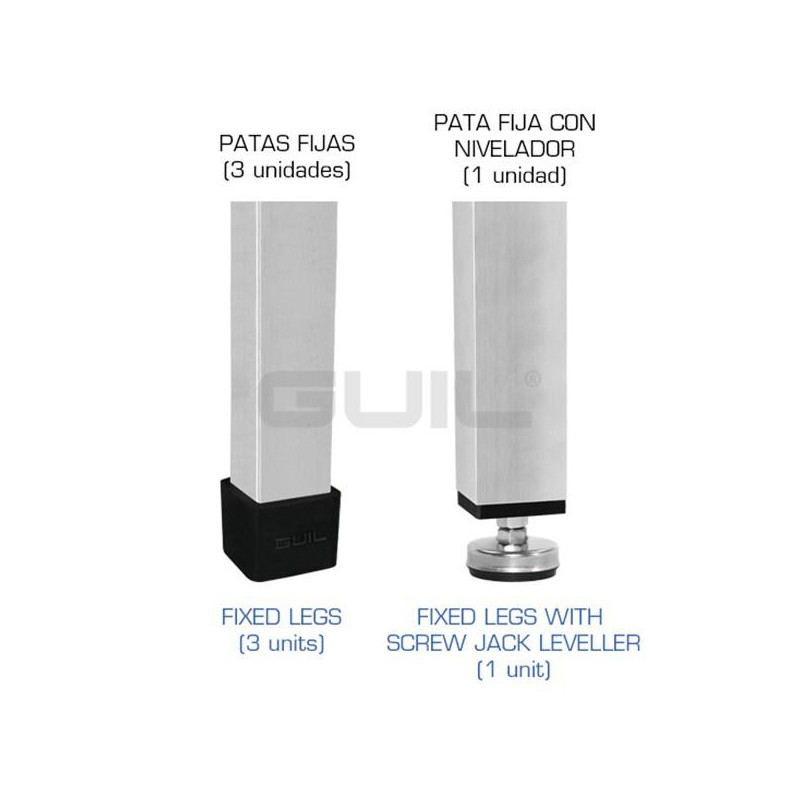

The height of the platform is 20 cm. One of the fixed legs is provided with a leveler that allows to overcome possible unevenness.

Thanks to its weather-resistant phenolic panel and aluminum structure, the TMD-09 director's deck is perfect for outdoor use.

The TMD-09 platform is built with a strong aluminum frame with a high load capacity.

Its 15 mm thick panel and 100% plywood in WISA ® Birch wood (WBP) consists of glued layers with weather and water resistant phenolic resin, with all edges sealed. The panel is subjected to water-repellent treatments, as well as treatments against commonly used chemicals; complying with the following standards: SFS 2415 / type EXT, BS 6566 part 8 / type WBP, DIN 68705 part 3 / type BFU 100, EN 314-2 / type EXT.

Data sheet
  • Material: Aluminum and Wood
  • Net weight: 26 kg
  • Maximum load: 500 Kg / m2

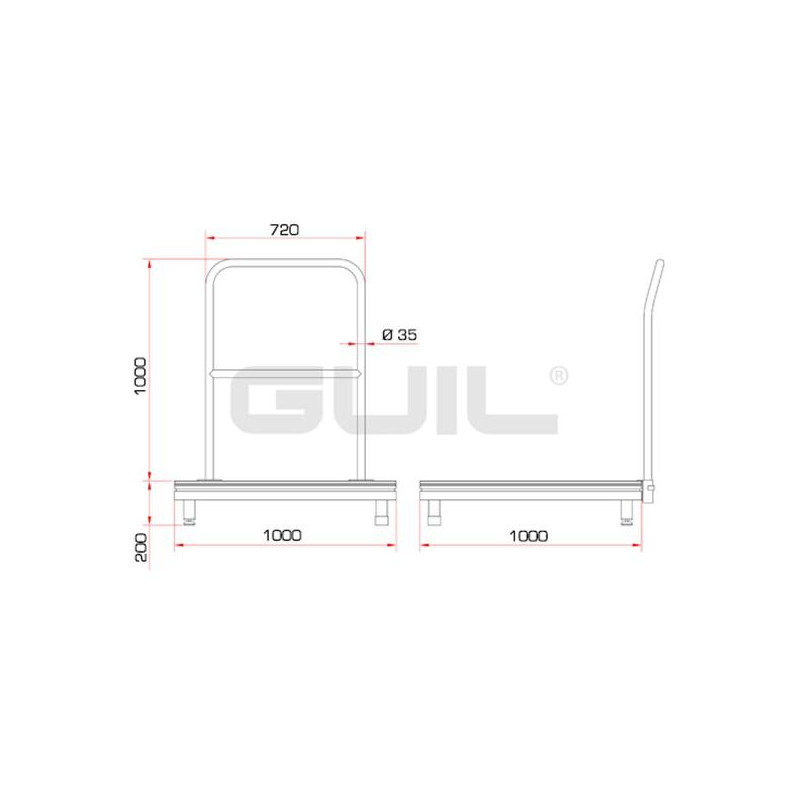

  • Measures: 1 x 1 m
  • Maximum height: 20 cm
  • Panel: WISA® 100% birch plywood
  • Legs Profile: 50 x 50 mm
  • Compliant with: DIN 15921: 2015-09
