Guil - TQN400XL-500
TQN400XL-500
400 x 400 mm square truss with joining systems included - Ref. TQN400XL (3 mm wall)
More info
Measurements: 400 x 400 mm
Color: Aluminum
Length: 500 - 1000 - 2000 - 3000 mm
Main tubes: Ø 50 x 3 mm
Sleepers: Ø 25 mm
Alloy: EN-AW 6082 T6

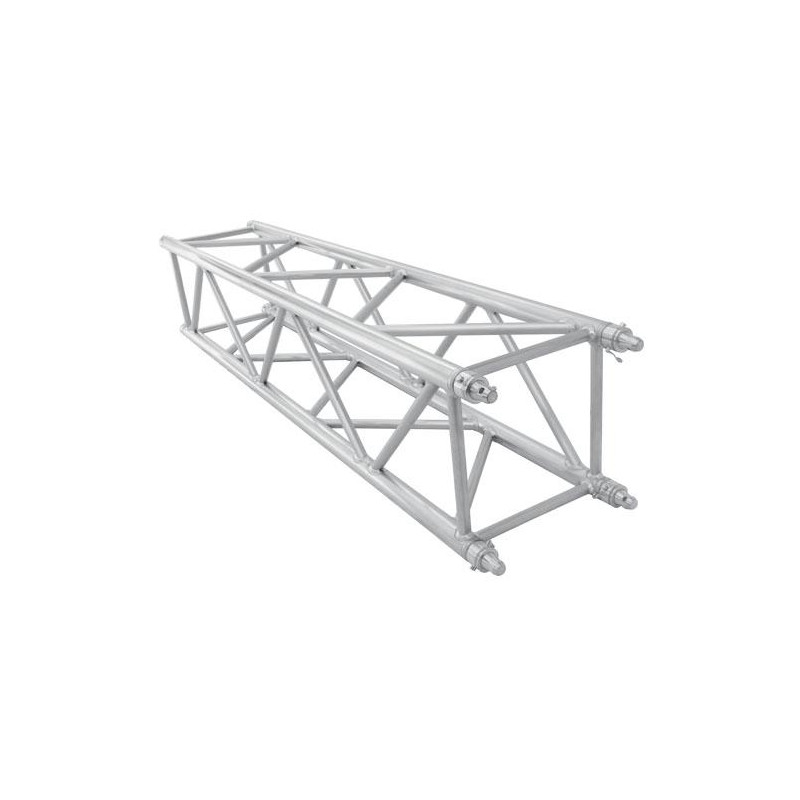

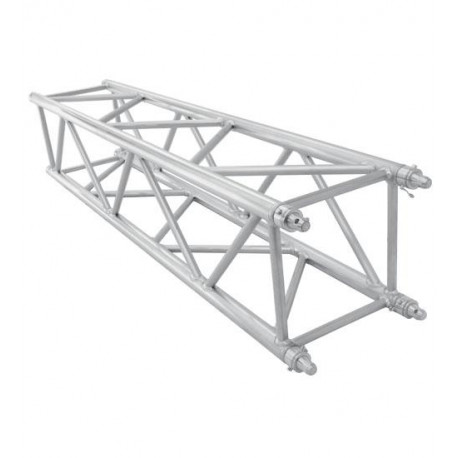

Aluminum truss with a square section of 400 x 400 mm with a quick connection system.
The TQN400XL modular structure is made of extruded aluminum with continuous bead TIG welding to guarantee maximum safety and resistance.
- Alloy: EN-AW6082 T6

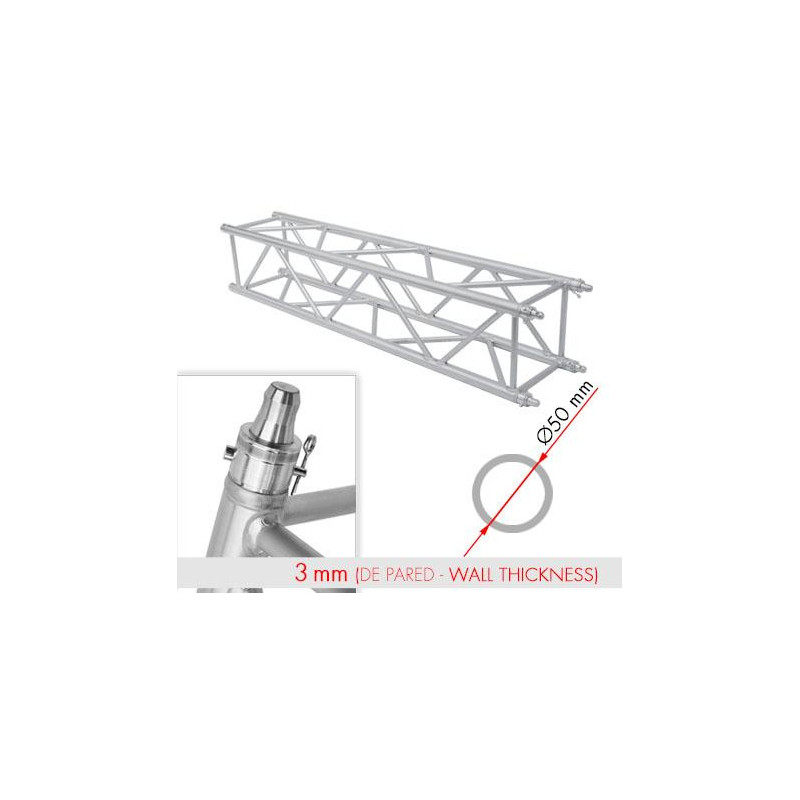

- Ø 50 mm main tubes (3 mm wall).
- Ø 25 mm sleepers.

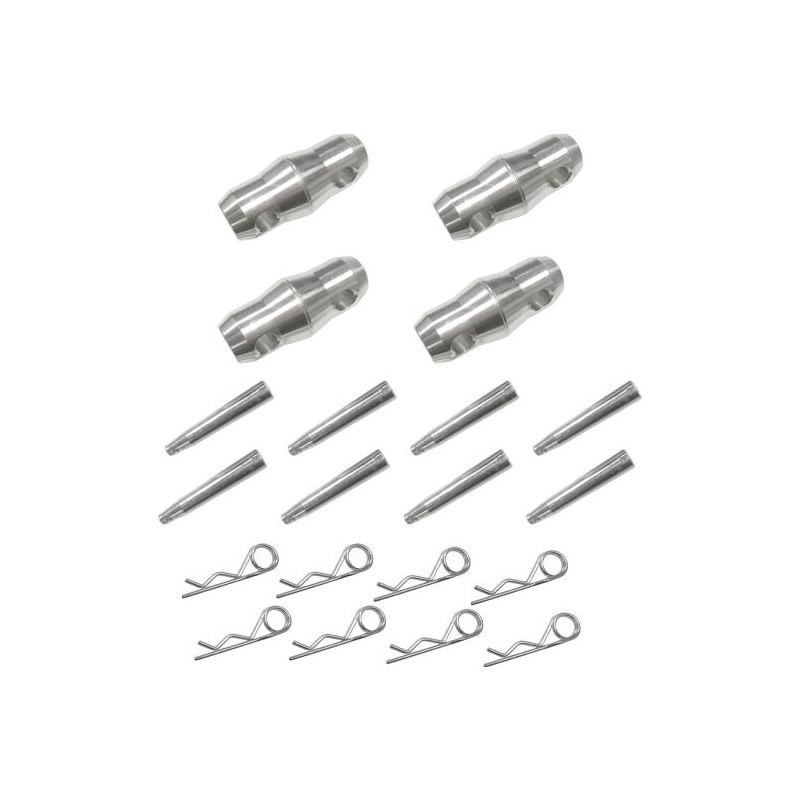

The modules are joined by means of a quick connection system with aluminum bolts and taper pins that guarantee a perfect fit of the assembled joints.

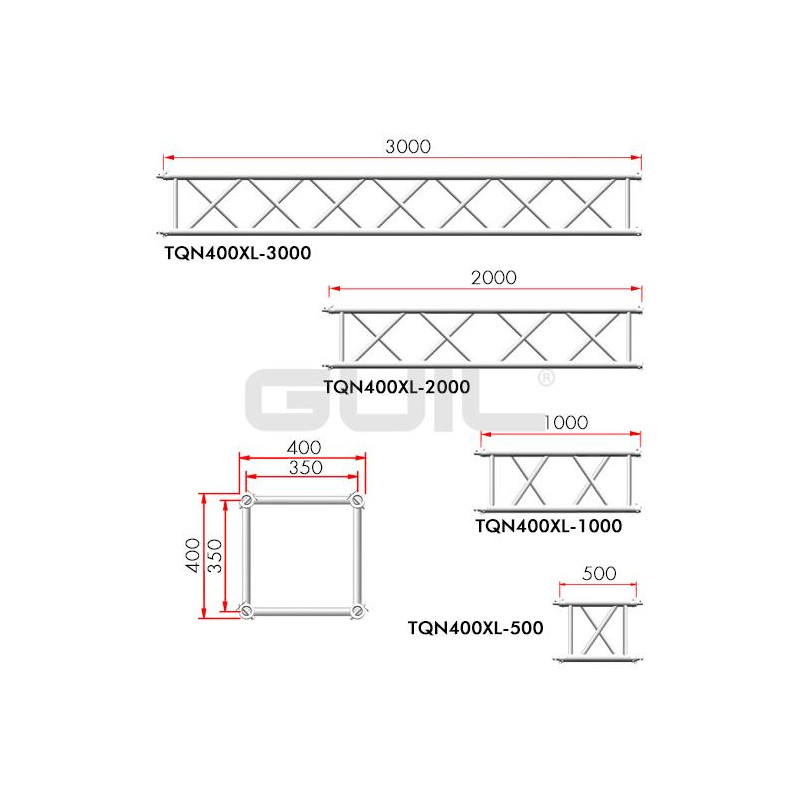

Available sizes:
• Ref. TQN400XL-500: 400 x 400 x 500 mm (Weight: 4.5 Kg)
• Ref. TQN400XL-1000: 400 x 400 x 1000 mm (Weight: 8.50 Kg)
• Ref. TQN400XL-2000: 400 x 400 x 2000 mm (Weight: 13.50 Kg)
• Ref. TQN400XL-3000: 400 x 400 x 3000 mm (Weight: 18 Kg)
Color: Aluminum
Length: 500 - 1000 - 2000 - 3000 mm
Main tubes: Ø 50 x 3 mm
Sleepers: Ø 25 mm
Alloy: EN-AW 6082 T6
Aluminum truss with a square section of 400 x 400 mm with a quick connection system.
The TQN400XL modular structure is made of extruded aluminum with continuous bead TIG welding to guarantee maximum safety and resistance.
- Alloy: EN-AW6082 T6
- Ø 50 mm main tubes (3 mm wall).
- Ø 25 mm sleepers.
The modules are joined by means of a quick connection system with aluminum bolts and taper pins that guarantee a perfect fit of the assembled joints.
Available sizes:
• Ref. TQN400XL-500: 400 x 400 x 500 mm (Weight: 4.5 Kg)
• Ref. TQN400XL-1000: 400 x 400 x 1000 mm (Weight: 8.50 Kg)
• Ref. TQN400XL-2000: 400 x 400 x 2000 mm (Weight: 13.50 Kg)
• Ref. TQN400XL-3000: 400 x 400 x 3000 mm (Weight: 18 Kg)
