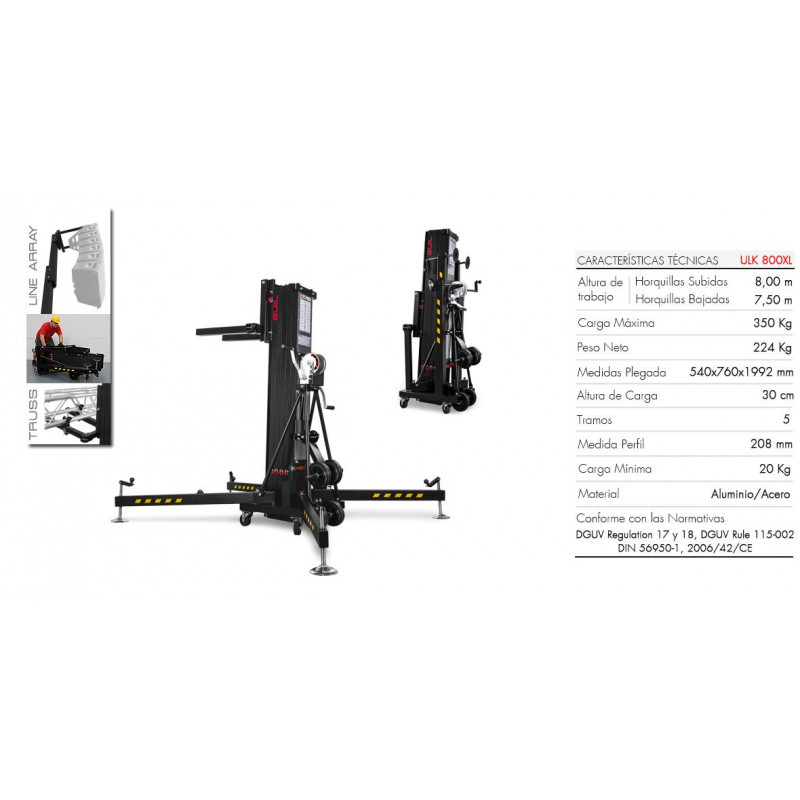

ULK 800XL Lifting Tower

Lifting tower designed to lift loads of up to 350 kg to a maximum height of 8 meters.

Multipurpose design lifting tower, made of aluminum and steel, developed to lift and maintain heavy loads at great heights.

Its compact design, its easy handling (without the need to use any type of tool), its unlimited number of applications and its great resistance make the ULK 800XL tower the ideal complement for any type of event.

The ULK 800XL tower is manufactured with the most advanced welding equipment, carefully selecting the materials used and controlling the quality of all its components during its manufacture. This guarantees maximum safety and firmness; complying at all times with the requirements of solidity, stability, lightness and maneuverability, necessary for lifting loads.

Thanks to the special system for loading in vehicles, the comfortable placement of the load to be lifted and its simple and quick assembly, this tower is considered one of the most functional on the market.

The ULK 800XL is equipped with three safety systems that guarantee maximum reliability during the lifting and lowering of loads.

1.- Self- braking winch safety system: Once the desired height is reached, when the winch stops operating the levers, its brake mechanism begins to act, preventing backward movement and paralyzing the load at the desired height.

2.- ASB System (Automatic Locking Security System): Composed of handles that allow the technician to lock / unlock each of the lift sections.

3.- IPB System (Internal Pendulum Brake): It is an extra security system composed of an internal pendulum system, which is automatically activated in each section when it suffers a small speed of fall and is unlocked by activating a trigger that has each section.

The ULK 800XL towers are equipped with the MSU System (Section Unlocking System): Release trigger to unlock the internal pendulum brake without having to completely disassemble the tower.

VERY IMPORTANT: ULK TOWERS ARE NOT MADE FOR LIFTING PEOPLE.

Important: For outdoor mounting, the structure must be secured using cables, slings, chains, etc.… to avoid any unforeseen movement as a result of the strong wind.

The ULK 800XL tower complies with the requirements of the Quality System according to the following Norms and Regulations:

• DGUV Regulation 17 & 18
• DGUV Rule 115-002
• DIN 56950-1
• 2006/42 / EC
