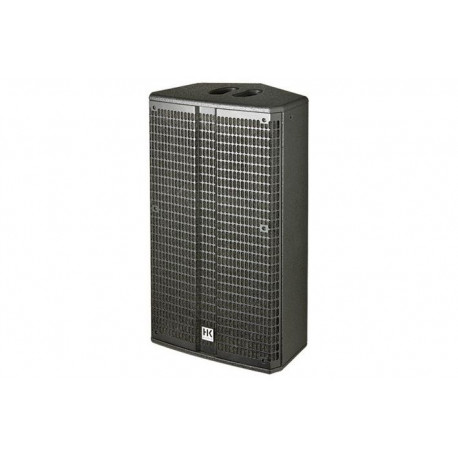

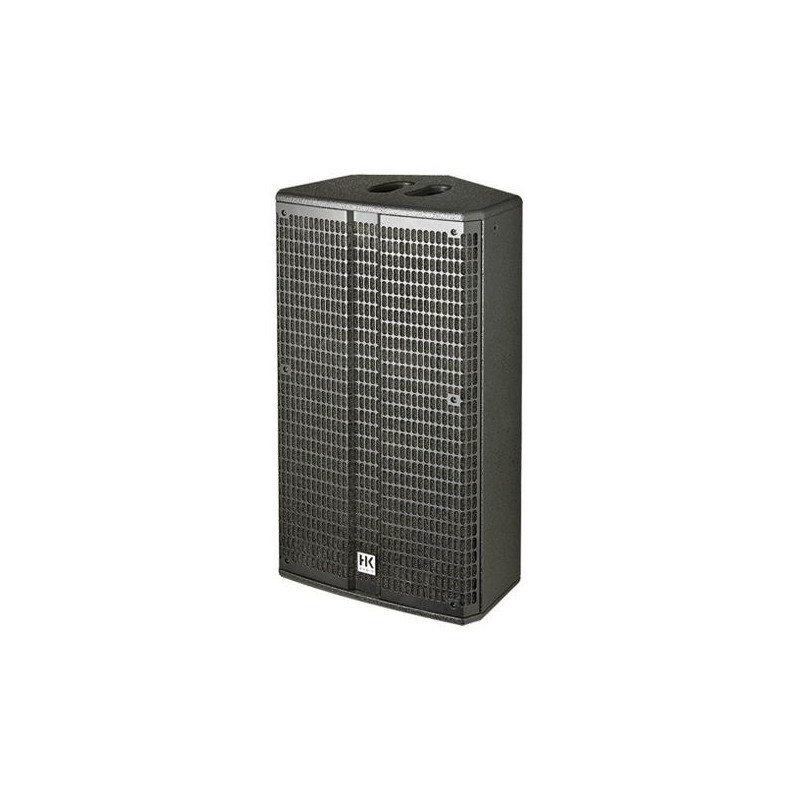

PA ENCLOSURE (PASSIVE) 'Compact 2-way full range system. Low-resonance multi-layer MDF/Birch cabinet with multi-angle trapezoidal design (vertical and horizontal orientation). Applications: multifunctional, ideal for sound reinforcement, live music installations, stage monitor, DJ sessions, among others. Works as a stand-alone speaker or in combination with other Linear 5 and Linear Sub series systems. LF: 1 x speaker with 12'' cone and 2.5'' voice coil. HF: 1 x 1.75'' diaphragm with 1'' motor. Frequency response: 100 Hz – 18 kHz (+/- 3 dB), 72 Hz – 20 kHz (-10 dB). Power: 500W RMS, 2000 peak. Protection: PTC circuit. SPL Max.: 135 dB peak. Coverage angle: rotatable diffuser 60° x 40°. Crossover Frequency: 1.7 kHz, 12 dB/oct. Connectors: 2 x Speakon NL4. Attachment Points: 1 x DuoTilt 3°/7°, 3 x M8, 2 x Integrated Handles. 2mm metal grille with black acoustic foam. Dimensions WxHxD: 37 x 67 x 30 cm. Weight: 19.5kg. Finish: acrylic enamel, black.'
