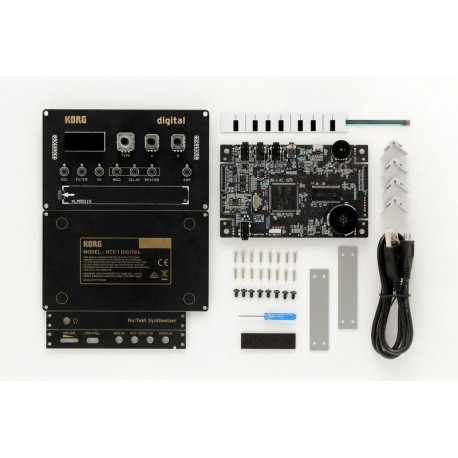

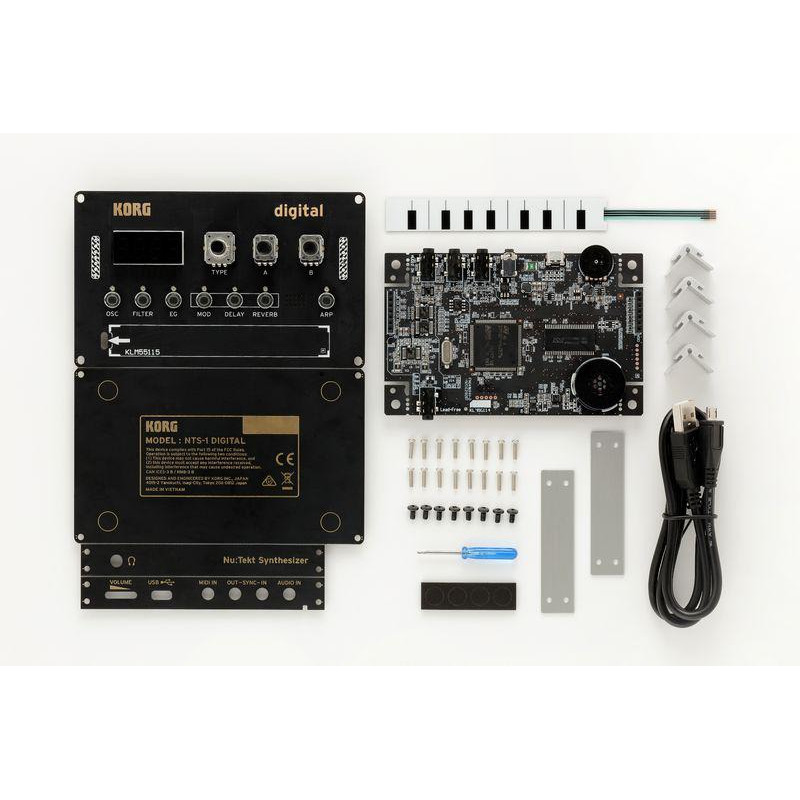

SYNTHESIZER MODULE The Nu: Tekt NTS-1 digital KIT is a unique, flexible and easy to assemble synthesizer that you can easily assemble yourself, without any soldering (tool included!).

The first in this DIY (do it yourself) range from KORG with the Nu: Tekt brand, it is a powerful synthesizer and multi-effects engine in a compact size that you can take and connect anywhere. Its DIY style means that it is also highly customizable. Explore its possibilities!

NTS-1 is fully compatible with the log-SDK *, making it possible to run any custom oscillator and effects content created for minilogue xd and prologue, or to create your own.

Free music software package
The NTS-1 has a variety of Izotope music software including “Ozone Elements” that allows you to not only create songs, but also improve them using AI, 'Skoove' that will help you improve your keyboard performance technique, the DAW software “Reason Lite ”, as well as software synthesizers from KORG and other brands.

Specifications

- Keyboard: Ribbon keyboard

- Sound Generation: 1 Digital Oscillator, 1 Multimode Filter, 1 EG, 3 LFO

- Effects: MOD (CHORUS, ENSEMBLE, PHASER, FLANGER), DELAY, REVERB

-Inlet / Outlet jacks:
Headphone jack (3.5mm stereo mini jack), AUDIO IN jack (3.5mm stereo mini jack), SYNC IN jack (3.5mm stereo mini jack, 20V maximum input level), SYNC OUT jack (3.5mm stereo mini jack, 5V level output), MIDI IN connector (3.5mm stereo mini jack), USB port (micro B type)

- Power supply: power mode via USB bus, Current consumption: 500 mA or less

- Dimensions (W x D x H): 129 mm x 78 mm x 39 mm / 5.08 "x 3.07" x 1.54 ",

- Weight: 124 g / 4.37 oz

- Items included: USB cable, User Manual, Screwdriver

* When using third-party plugins on the NTS-1, please check with the developer first as the content may sound different than with minilogue xd or prologue due to polyphony.
