DISTORTION PEDAL The HD-S effects pedal combines three different distortion circuits to create harmonic modulation that goes beyond the traditional concept of distortion. This new effects unit has been developed by Fumio Mieda, creator of many famous legendary devices such as the Univibe. This new type of effects unit differs from the usual fuzz or distortion pedal in many ways.

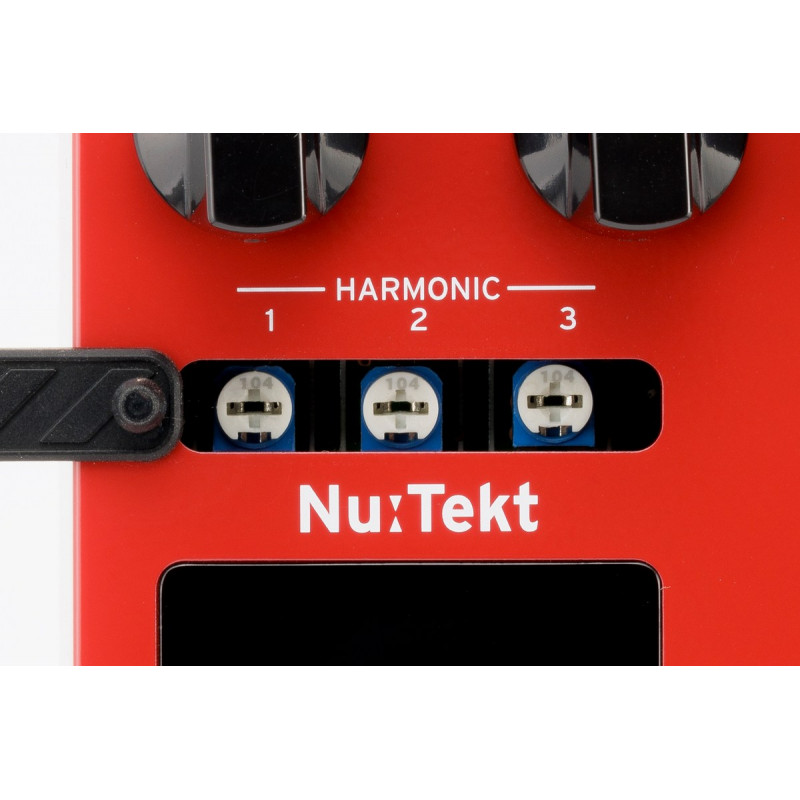

The HD-S allows you to freely combine the three different distortion circuits to produce a wide range of never-before-discovered sounds, from traditional fuzz to otherworldly distorted sounds and much more. This wide range of traditional and totally new sounds allows the HD-S to be used not only with guitars, but also with basses, synthesizers and anytime new and unique sounds are required. One of the advantages of the Nu series

: tekt is the possibility of assembling them yourself. The HD-S kit requires no soldering, and all tools needed for assembly are included in the package. This makes it quick and easy to put together the kit, offering the enjoyment and satisfaction of creating your own sound.

Specifications:
Connections: INPUT terminal (monaural jack), OUTPUT terminal (monaural jack). DC.9V terminal.
Power: 9V alkaline batteries
Power source: 9V alkaline batteries (6LF22/6LR61) (sold separately) or DC.9V AC adapter (sold separately)
Battery life: Approx. 10 hours (with alkaline batteries)
Power consumption: 45mA
Dimensions (W x D x H): 122 x 96 x 55mm
Weight: 340 g (batteries not included)

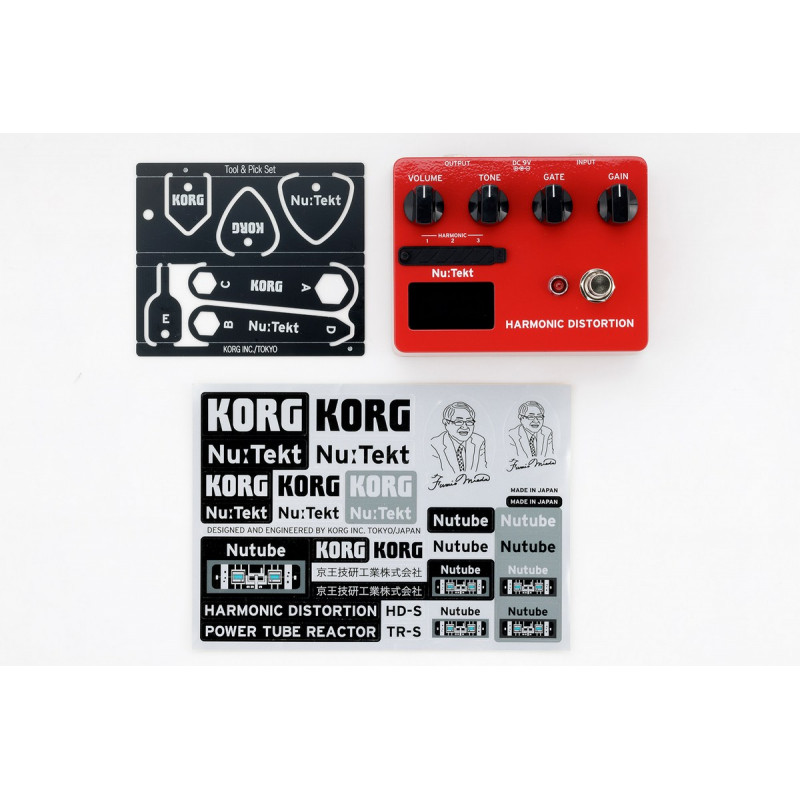

Included items: User manual, assembly tool, sticker set
