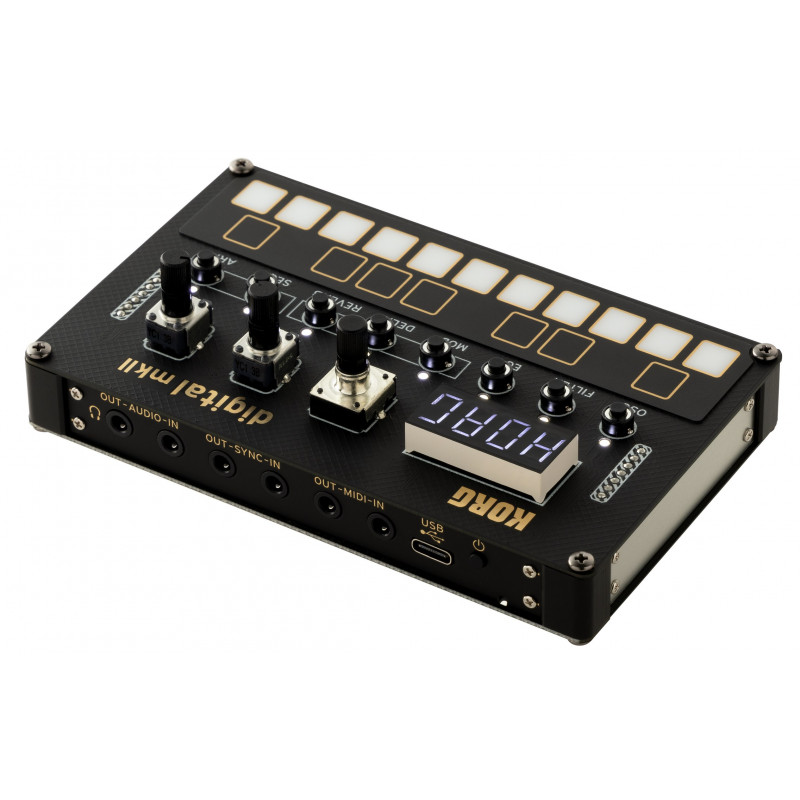

SOUND MODULE OR SYNTHESIZER The compact and incredibly powerful NTS-1 is back with new features, a renewed interface and more customization options than ever. With a new keyboard, built-in sequencer, new sounds and expanded MIDI functions, the NTS-1 mkII gives you a huge feature set in the palm of your hand. Powered by an even more powerful processor than its predecessor, the NTS-1 mkII unleashes its full potential and welcomes a new wave of personalized content through its updated logueSDK. This DIY synthesizer and effects unit is not only powerful but also versatile, a must-have for both the studio and stage.

Keyboard:

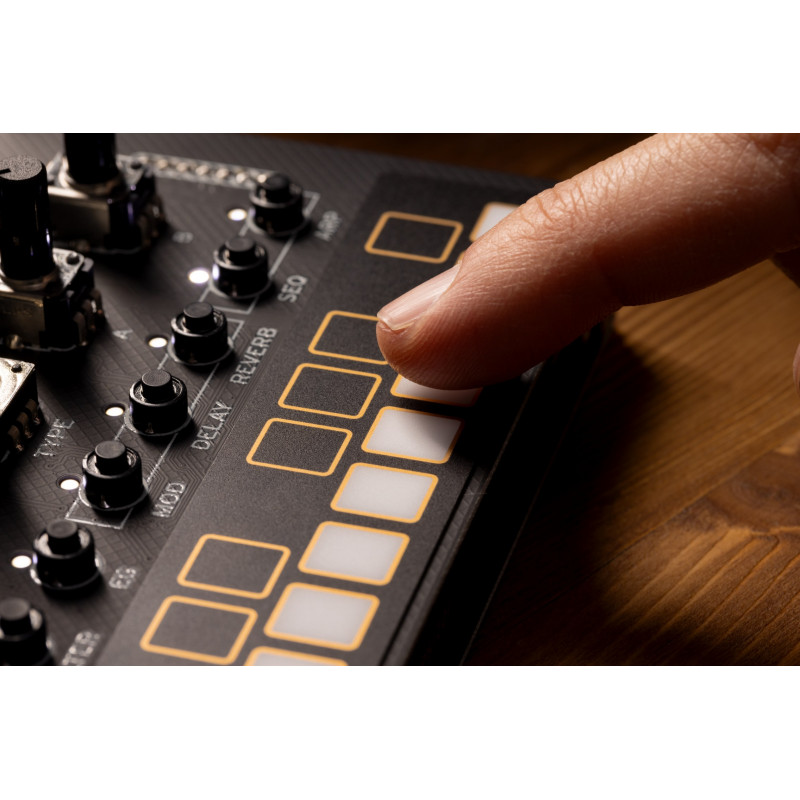

Multitouch keyboard

Sound generating system:
1 VCO, 1 multimode filter, 1 EG, 3 LFO

Effects:
MOD (CHORUS, ENSEMBLE, PHASER, FLANGER, SOFT CLIP, HARD CLIP, SINE FOLD, FUZZ), REVERB, DELAY

Input/output jack:

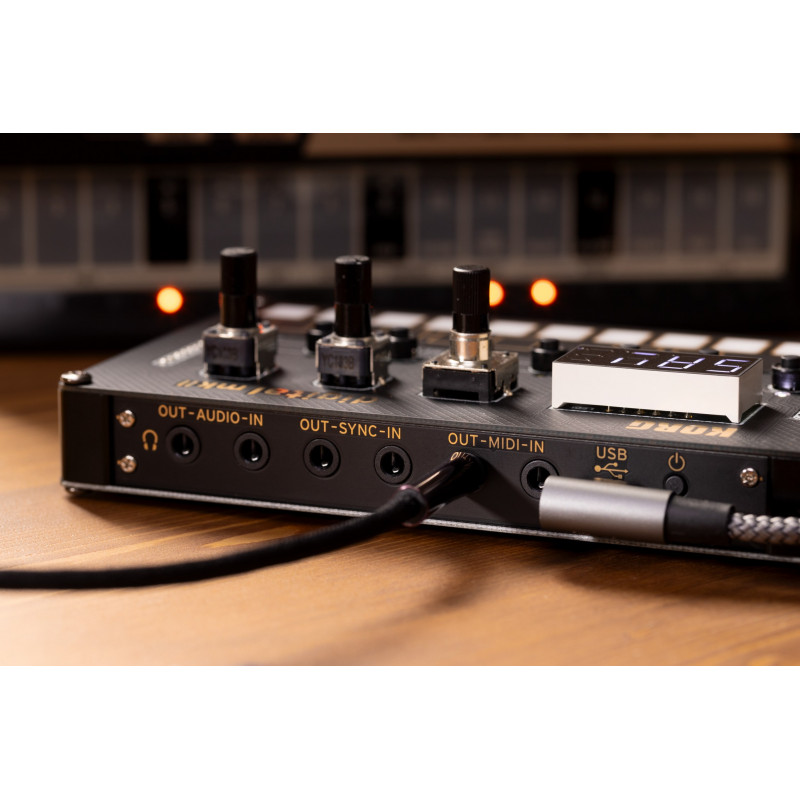

Headphone jack / AUDIO OUT (3.5 mm stereo mini-jack), AUDIO IN Jack (3.5 mm stereo mini-jack), SYNC OUT Jack (3.5 mm TRS mini-jack, level 3.3 V output), SYNC IN Jack (3.5 mm TRS mini-jack, maximum input level 20 V), MIDI OUT Jack (3.5 mm TRS mini-jack), MIDI IN Jack ( 3.5mm TRS mini-jack), USB port (Type-C)

Power supply:
USB bus powered

Current consumption:
500 mA or less

Dimensions (W × D × H):
129 × 78 × 39mm /5.08''×3.07''×1.54''

Weight
122g/4.30oz

Items included:
USB cable, Assembly instructions
