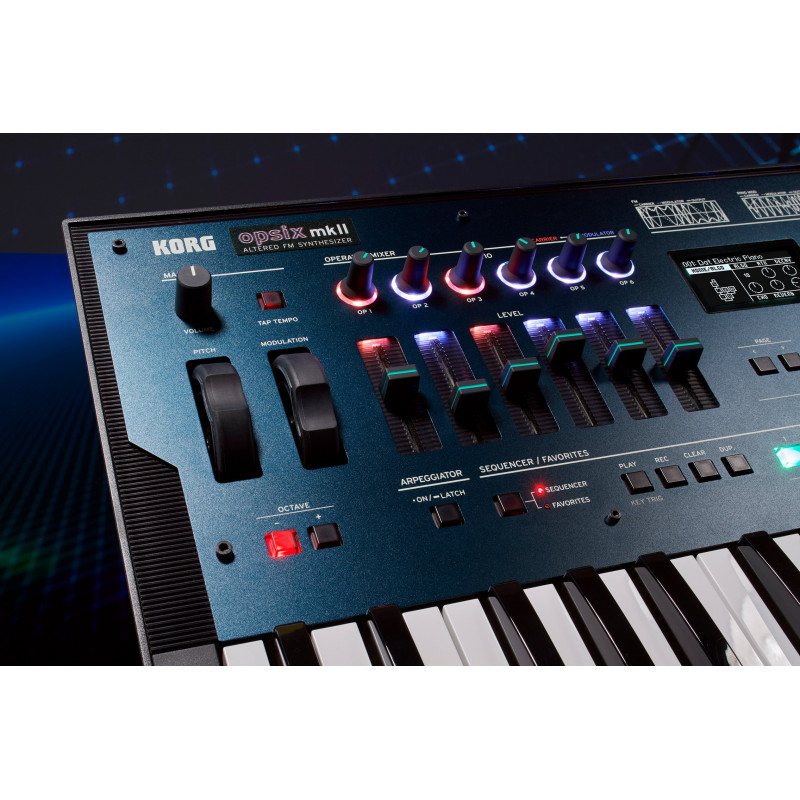

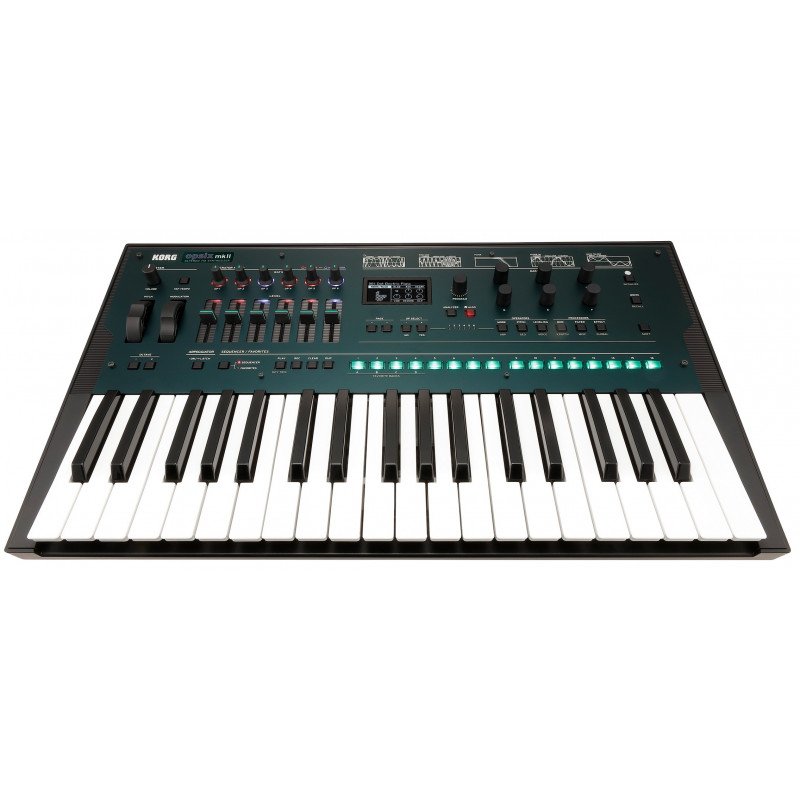

PROFESSIONAL SYNTHESIZER KEYBOARD 'opsix mk II is a digital synthesizer like no other. Based on the original opsix sound engine, the number of voices and simultaneous voicings has been expanded to a staggering 64 voices. The result is superior performance and precise control.

The opsix Operator Mixer simplified FM synthesis for the first time, making it not only understandable, but also controllable. With the addition of additional synthesis and programming capabilities, it offered a more efficient workflow and an even richer sound.

Additionally, it is fully compatible with sounds and samples from both the original opsix and opsix native software, including numerous high-quality libraries.

Specifications

Keyboard 37 keys (velocity and release sensitive)

sound generating system
Altered FM Sound Generator


Maximum polyphony
64 voices (varies depending on configuration)

Structure
6 operators, 1 filter, 3 EGs, 3 LFOs, 3 effects, step sequencer, arpeggiator
Algorithm: 40 presets + user algorithm (unique for each program)
Operator: 5 modes (FM, Ring Mod., Filter, Filter FM, Wave Folder)
Oscillator waveform: 21 waveforms (sine, 12-bit sine, 8-bit sine, triangular, saw, saw HD, square, square HD, additive saw3, additive sqr3, additive tri3, additive 12345, additive 1+2, additive 1+3, additive 1+4, additive 1+5, additive 1+6, additive 1+7, additive 1+8, S/H noise, white noise)
Filter: 11 types (LPF 12, LPF 24, LPF MS-20, LPF POLY6, HPF 12, HPF 24, HPF MS-20, BPF 6, BPF 12, BRF 6, BRF 12)

EG: ADSR

LFO: 23 waveforms (Triangle, Saw Down, Saw Up, Square, Sine, Sample and Hold, Guitar, Triangle Exp, Saw Exp Down, Saw Exp Up, Step4 Triangle, Step6 Triangle, Step4 Saw Down, Step6 Saw Down, StepRnd:Time, StepRnd:Lvl&Time, StepRnd:Level, Random:Time, Random:Lvl&Time, Triangle + , Saw Down + , Saw Up + , Square +)

V.Patch: 12 routes

Effects: 30 types (Chorus, Unison Ensemble, Phaser, Phaser (BPM), Auto Pan, Auto Pan (BPM), Flanger, Flanger (BPM), Rotary Speaker, Auto Wah, Exciter, Booster, LFO Filter, 3-Band EQ , Distortion, Guitar Amp, Decimator, Grain Shifter, Master Limiter, Compressor, Delay, Delay (BPM), Autopan Dly, Autopan Dly (BPM), Tape Echo, Tape Echo (BPM), Early Reflection, Reverb, Shimmer Reverb, Spring Reverb)

Sequencer: Step sequencer (up to 16 steps, up to 6 notes per step)

Motion sequencer (up to 6 lanes)

Arpeggiator: 7 patterns (MANUAL, UP, DOWN, ALT1, ALT2, RANDOM, TRIGGER)

Number of programs
500 (250 predefined programs and 250 default user programs)
cFAVORITES: 64 (16 Slots × 4 Banks)


Drivers

MODULATION wheel, PITCH wheel, RATIO OP 1-6 knobs, LEVEL OP 1-6 sliders, DATA ENTRY AF knobs

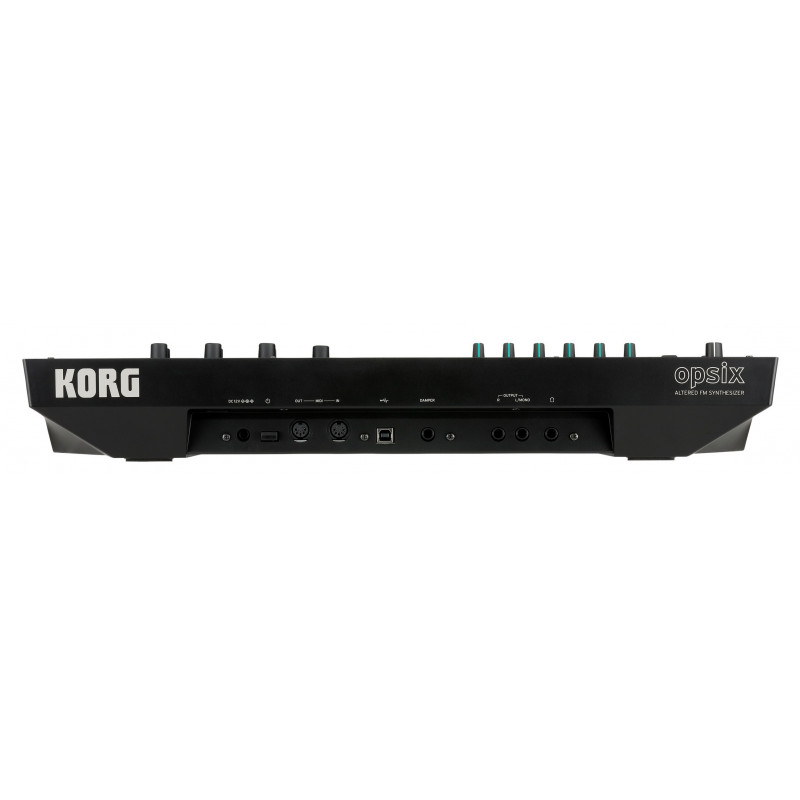

Inputs/outputs
Headphone (6.3 mm stereo phone jack)
L/MONO and R OUTPUT (6.3mm impedance balanced TRS Jack)
DAMPER (6.3 mm jack, does not support half pedal)
MIDI IN and OUT connectors
USB B port

Power supply
AC Adapter (DC12V)

Energy consumption
5W

Dimensions (W × D × H)
565 × 338 × 90mm / 22.24'' × 13.31'' × 3.54''

Weight
2.9 kg / 6.93 lbs.

Items included
AC adapter

Accessories (sold separately)
DS-1H damper pedal, PS-1 pedal switch, PS-3 pedal switch
'
