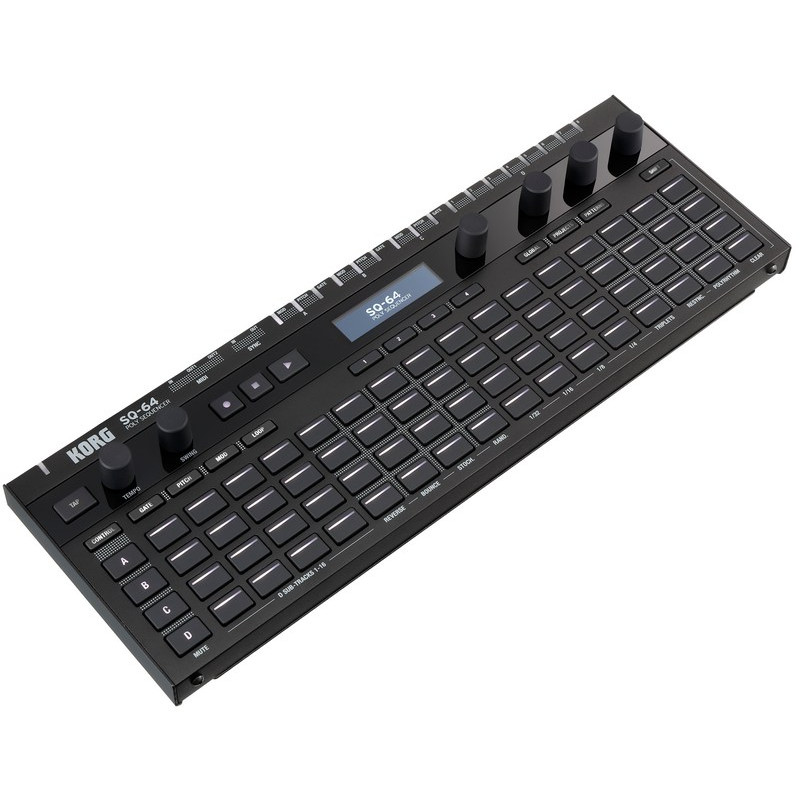

SEQUENCER-ARRANGER MODULE The SQ-64 is an incredibly powerful and compact polyphonic step sequencer, with excellent practical and intuitive controls, and complete editing options to give you all the flexibility and sequencing power necessary for all your musical projects. With its 64-step Patch Matrix, crystal-clear OLED display, sturdy and stylish aluminum body, a host of connections, plus a variety of modes and features, the SQ-64 will become the centerpiece of your music studio, providing complete, seamless control over all your instruments so you can focus on what's most important: your music!

Specifications:

64-step sequencer, with 3 melodic tracks and up to 8 polyphony notes, 16 monophonic rhythm tracks

Tempo: BPM30.0 - 300.0

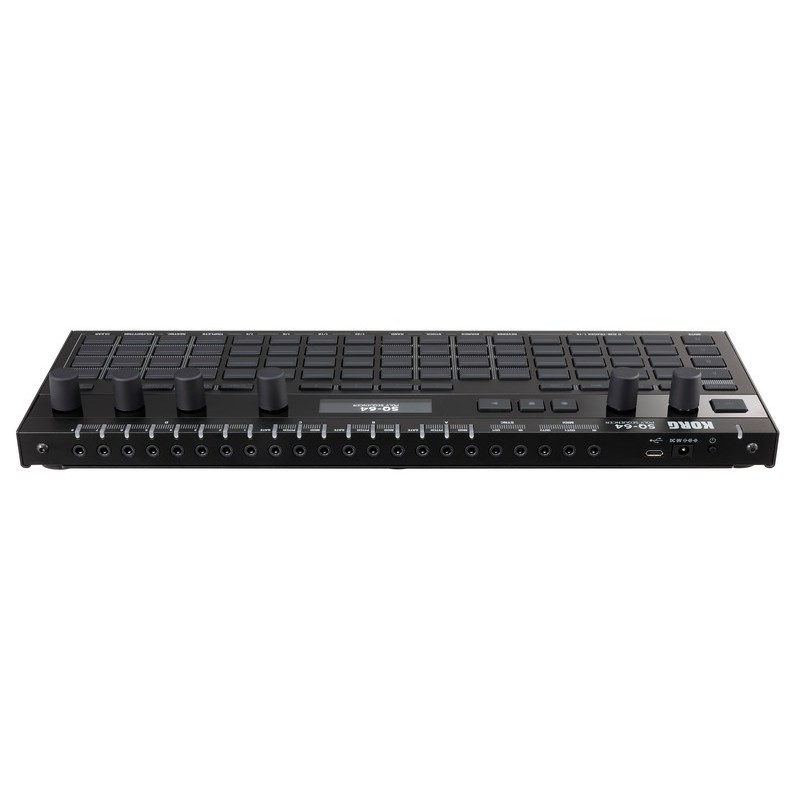

Inputs:
MIDI IN jack (φ3.5mm stereo mini jack, uses a type-A MIDI converter),
SYNC IN jack (φ3.5mm monaural mini jack, 20V maximum input level)

Outputs:
MIDI OUT1, 2 connector (φ3.5mm stereo mini jack, one type MIDI type-A converter),
SYNC OUT jack (φ3.5mm monaural mini jack, 10V maximum output level),
CV GATE output A/B/C jack (φ3.5mm monaural mini jack, 10V maximum output level),
CV PITCH output A/B/C jack (φ3.5mm monaural mini jack, 10V maximum output level),
CV MOD output A/B/C jack (φ3 .5mm monaural mini jack, 10V maximum output level),
TRIG output 1~8 jack (φ3.5mm monaural mini jack, 10V maximum output level)

Power: USB bus power, or DC 9V AC Adapter ([- or +], sold separately)

Dimensions: 341 mm x 13 mm x 40 mm

Weight: 1.0 kg

Items Included: User Manual, USB cable

Accessories (sold separately): KA350 AC Adapter, Patch cables MS-CABLE-18
