For a singer-songwriter performing on stage or giving a concert in a living room, sound is everything.

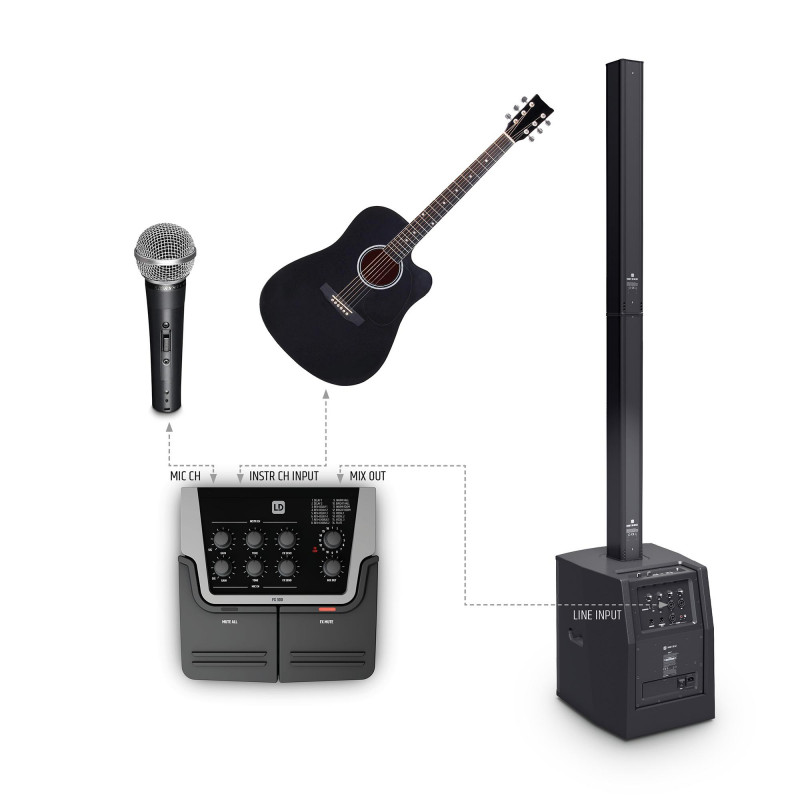

LD Systems FX 300 will blow you away right from the moment you start your show, even if you've had little to no time to carry out a soundcheck. This small yet handy device not only serves as an effect pedal for altering the sound of your voice and instrument but is also an easy-to-use two-channel mixer. Its best feature by far are the pedals that let you control the mute functions with your feet or hand. And if you've got something to say, you can simply mute all effects with the FX MUTE pedal so your voice can be heard loud and clear without any reverb or delay and everyone in the room can understand your message. To prevent the signal of your microphone or instrument from reaching the outputs, all you need to do is tap the MUTE ALL pedal - a lifesaver during breaks or when wrapping up your set.

The FX 300 is outfitted with 16 digital effects presets in 16-bit quality, two inputs with a separate gain setting and a balanced and unbalanced output. The +48 V phantom power provided at the microphone input allows condenser microphones to be used in addition to dynamic microphones. The high-impedance, low-noise instrument input is not only great for acoustic or bass guitars but also for all other instruments. Plenty of headroom ensures you no longer have to worry about distorted signals. And with a 9 V battery that lasts up to five hours, LD Systems FX 300 has got you covered even if there's no outlet in sight.

• Microphone input for dynamic and condenser microphones

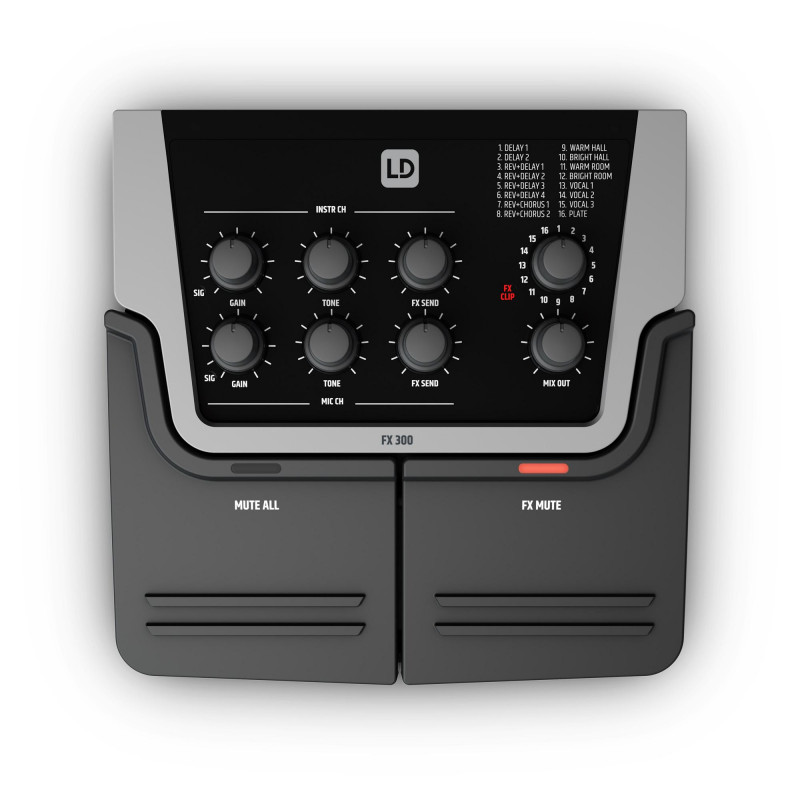

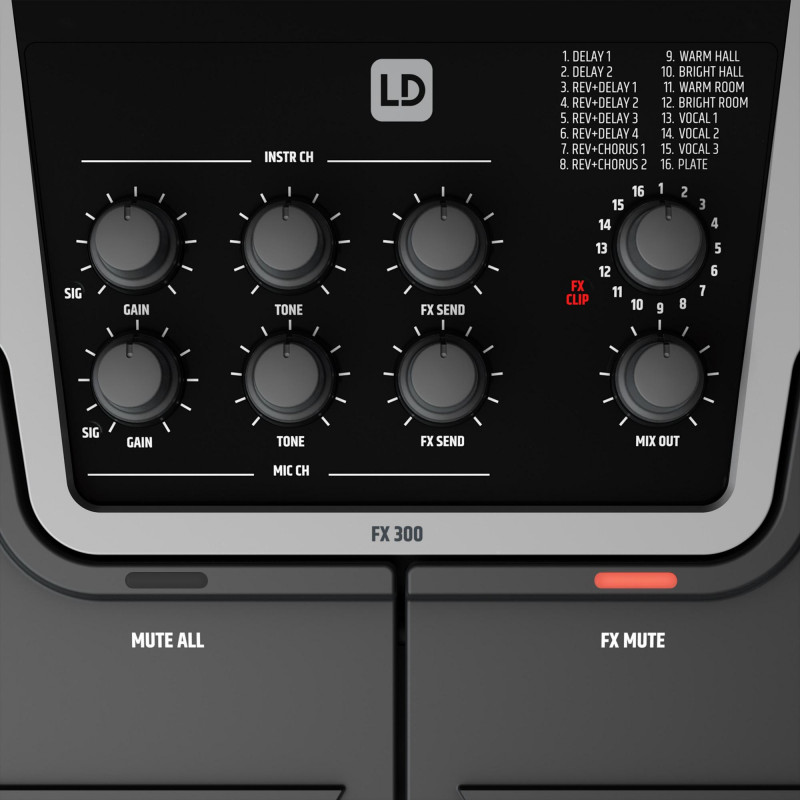

• 16 digital effect presets in 16-bit quality
• Low-noise instrument input with high input impedance for acoustic guitars, bass guitars or other instruments
• Separate FX sends for both channels, additional FX loop for the instrument input
• HPF and +48 V phantom power for microphone input
• Signal/peak LEDs for both channels and clip LED for the effects

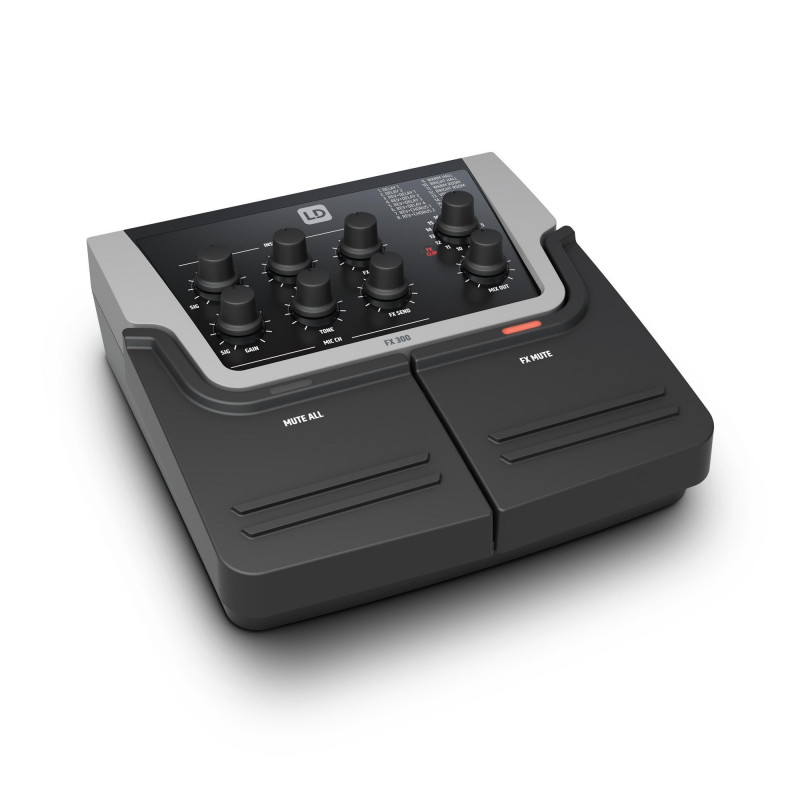

• FX MUTE pedal for muting effects
• MUTE ALL pedal for muting outputs

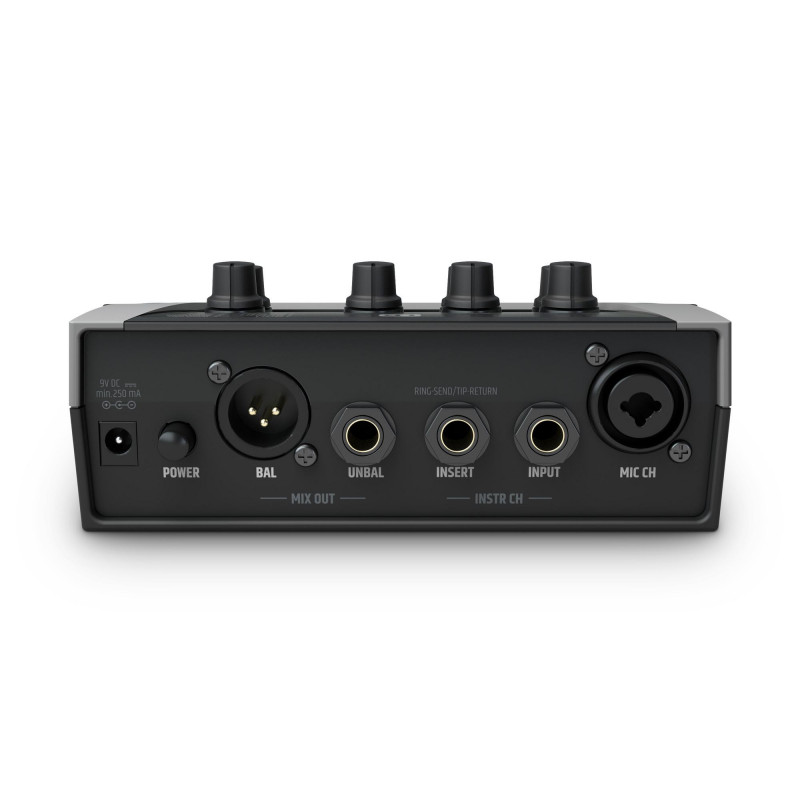

• Balanced and unbalanced output
• Operated on 9 V battery or optional power supply (LDFX300PS)

Microphone channels

Instrument channels

Main Section

General Specifications
