LD Systems - LDI02

LDI02

LD Systems LDI02 DI Box active. Price per piece.

In Stock

Europe Warehouse: 230
Spain Warehouse: 1

More info

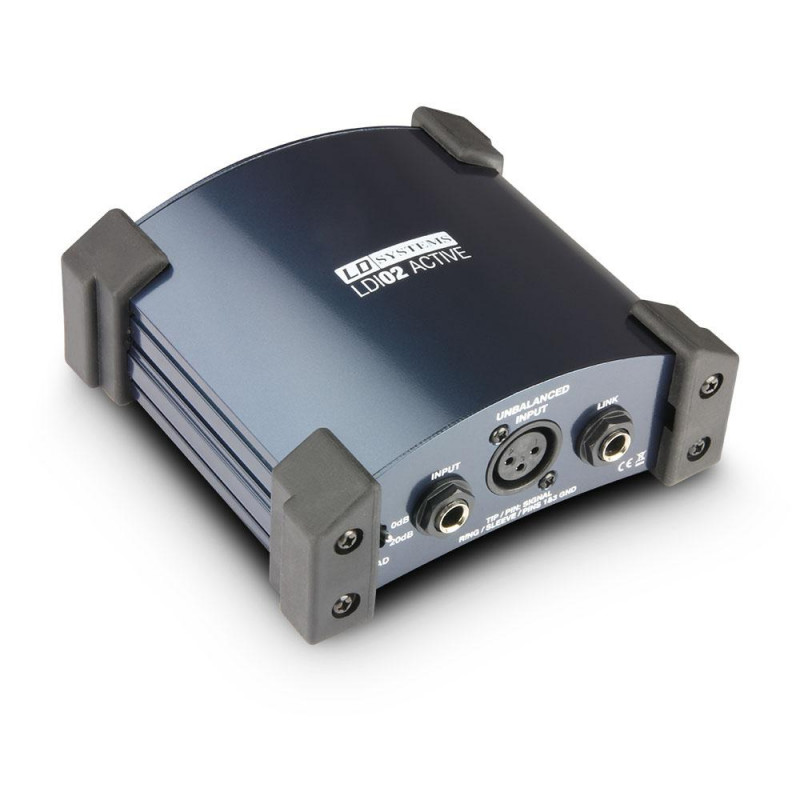

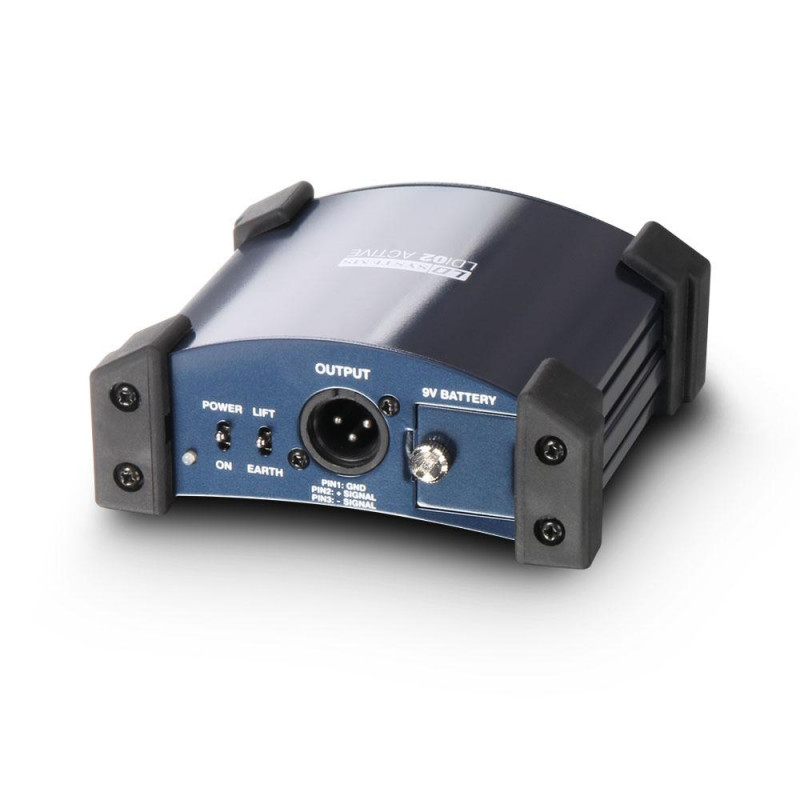

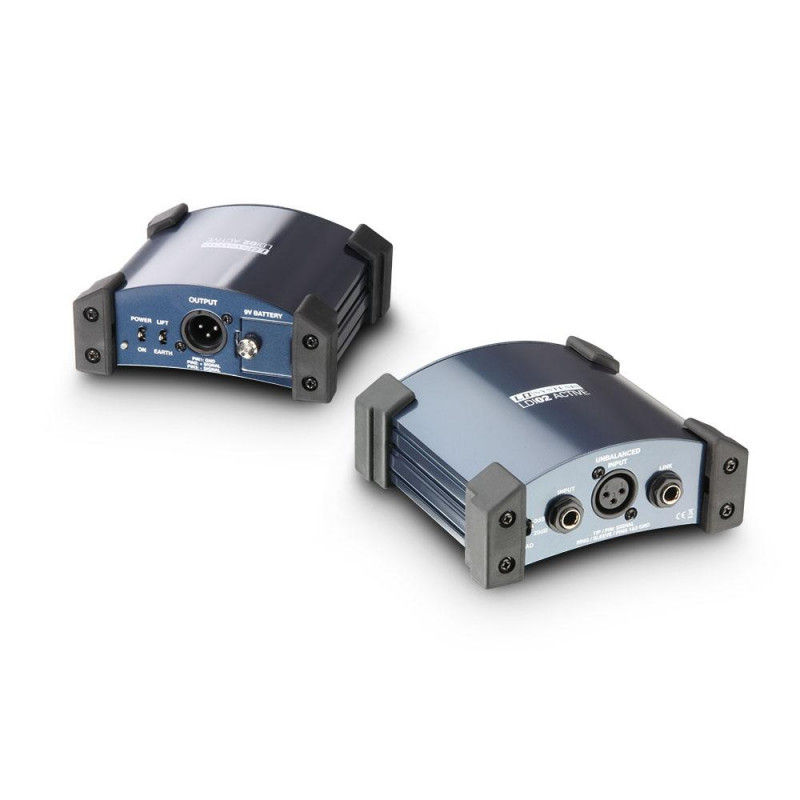

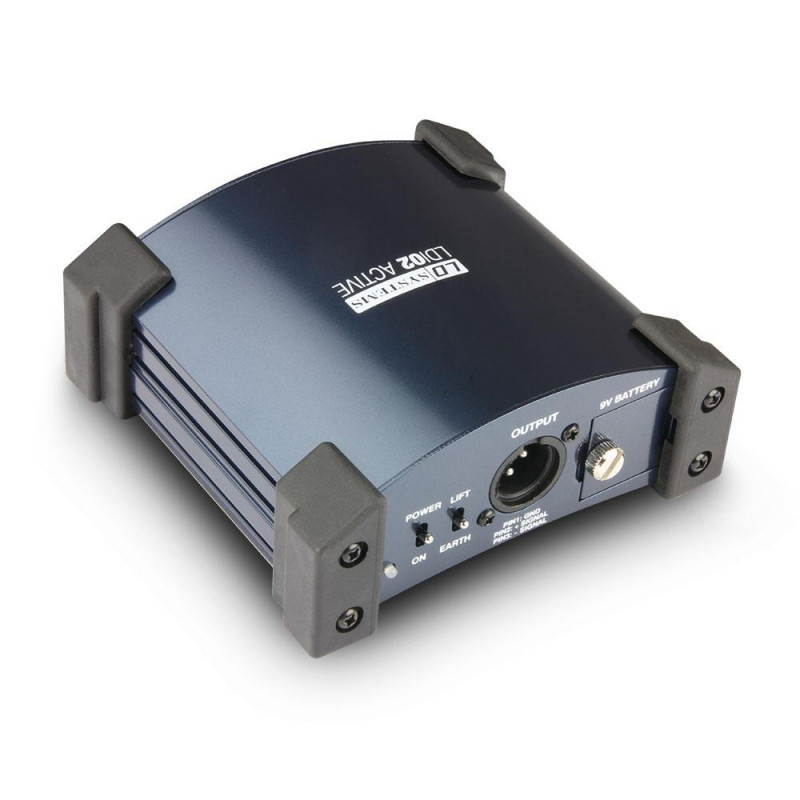

Active DI box in a sturdy metal housing (aluminium/steel) with protective corners, silver-blue metallic, internal battery (9 V flashes during operation) is switched off automatically when phantom power is used (LED permanently illuminated),

extremely low battery consumption. Battery: 9 V block (not included).

Product type
DI Boxes

Channels
1

Inputs
2

Input connectors
6.3 mm Jack , XLR

Max. input level
+ 10 / + 30 dBu dBu

Input impedance
1 M Ohm(s)

Outputs
1

THRU outputs/channel
1

Output connectors
XLR

Frequency response
20 - 20.000 Hz

THD
< 0.0015 % @ 1 kHz

Indicators
Power

Controls
ground lift , Power

Operating voltage
+48 V phantom power , 9 V block

Cabinet material
metal

Cabinet surface
painted

Width
135 mm

Depth
128 mm

Height
53 mm

Weight
0,645 kg
