LD Systems - LDMON101AG2

LDMON101AG2

LD Systems MON 101 A G2 10" active Stage Monitor. Price per piece.

379.60€%14.38 You save 54.60€
325,00 € tax incl.

Add to wishlist

Free shipping available for this product!

Discontinued

More info

LD Systems Stinger MON101AG2

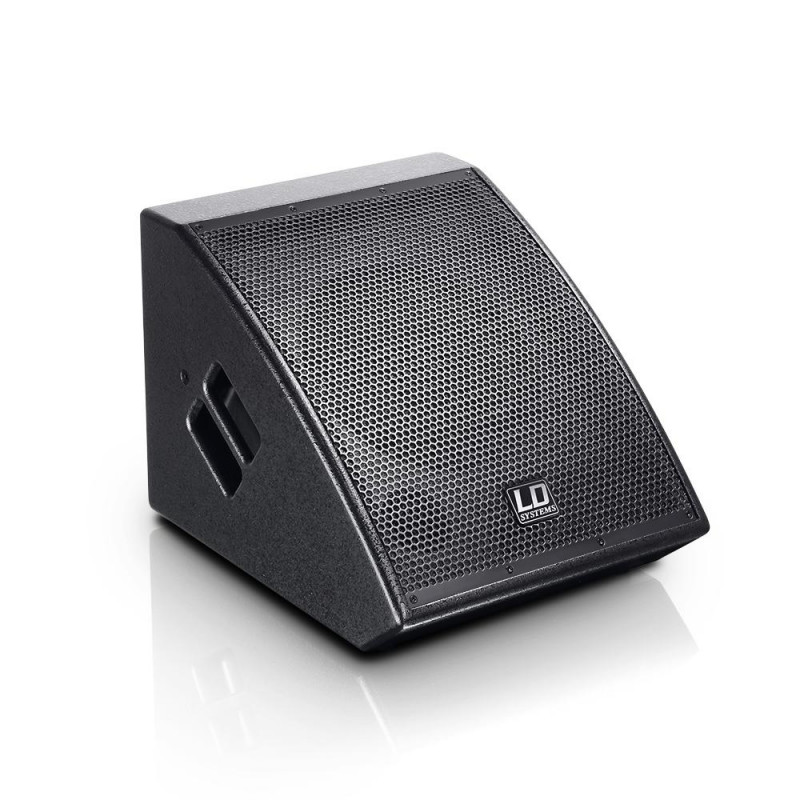

The LD Stinger MON101AG2 is an especially compact active monitor with broad frequency response and a maximum sound-level pressure of 121dB for versatile use on stage.

The 10" coaxial speaker with an integral 1" HF driver attains a dispersion angle of 75°x75°, which is beneficial in multifaceted applications as a stage monitor. The coaxial configuration results in a very homogenous sound in the entire dispersion area plus very low susceptibility to feedback. The active monitor is driven by a Class AB power amplifier with an output of 600W Peak. Short-circuit protection and a limiter ensure dependable operation.

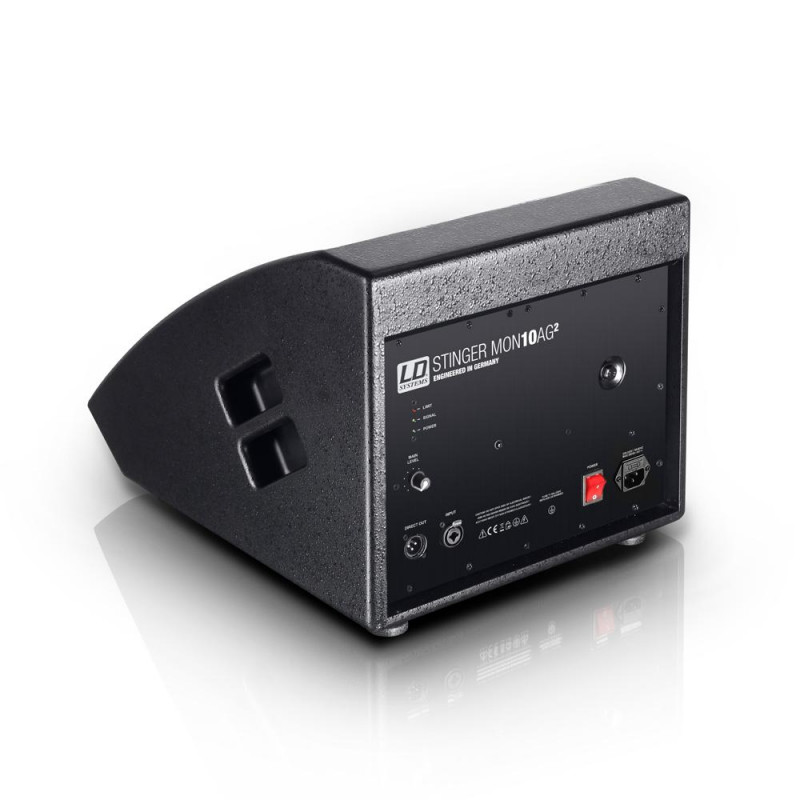

The rear connector panel offers an XLR-jack combo input and XLR output for looping through the signal; other features include a volume control, IEC power socket and switch, and LED indicators for power, signal, and limiter.

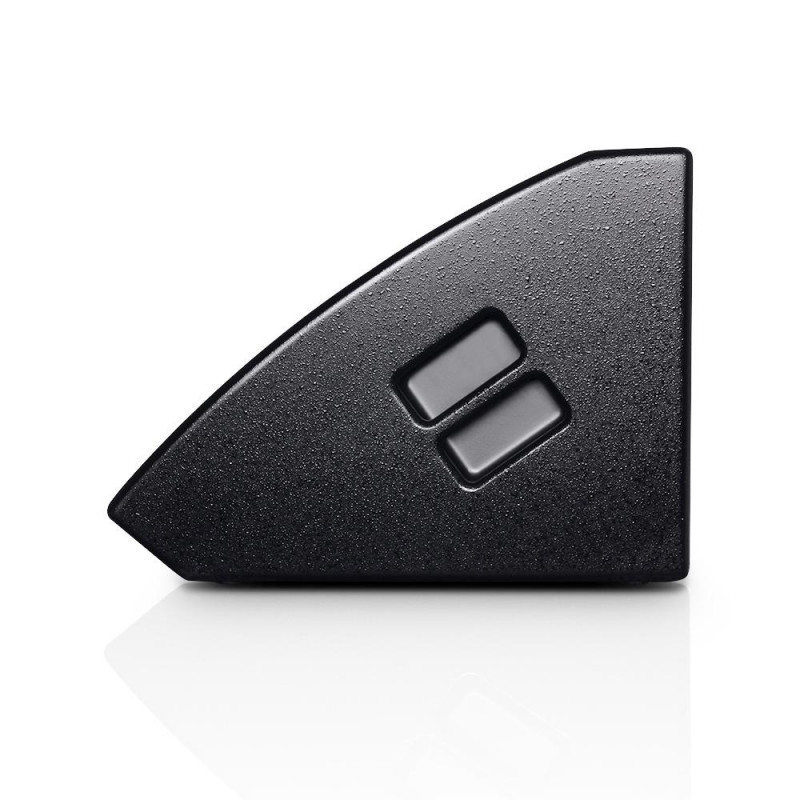

The elegant bass-reflex housing made of 15mm multiplex is finished with a durable coating and has ergonomically milled handles and a metal grille to protect the speaker. The monitor angle is 35°.

Product type
PA loudspeaker

Type
Actives

Low/mid driver dimensions
10 "

Woofer Size
254 mm

Woofer type
coaxial loudspeaker

Woofer magnet
Ferrite

Woofer brand
Custom-made

Woofer voice coil
2 "

Woofer voice coil (mm)
50.8 mm

HF driver dimensions
1 "

HF Driver Size
25.4 mm

HF driver magnet
Ferrite

HF driver brand
Custom-made

HF driver voice coil
1 "

HF Driver Voice Coil
25.4 mm

Amplifier
Class A/B

Dispersion (H x V)
75 x 75 °

RMS
150 W

Peak power
600 W

Frequency response
90 - 20000 Hz

Crossover frequency
3300 Hz

SPL (1W/1m)
99 dB

Max. SPL (continuous)
113 dB

Max. SPL (peak)
121 dB

Protection circuits
limiter , short circuit

Controls
On / Off , volume

Indicators
limit , Power , signal

Line Inputs
1

Line input connectors
6.3 mm Jack , XLR

Line Outputs
1

Line output connectors
XLR

Operating voltage
transformer

Operating voltage
230 V AC / 50-60 Hz

Cabinet material
15 mm Plywood

Cabinet construction
vented

Monitor angle
35 °

Width
380 mm

Depth
335 mm

Height
466 mm

Weight
15,3 kg

Features
ergonomically shaped insert handles
