Product type

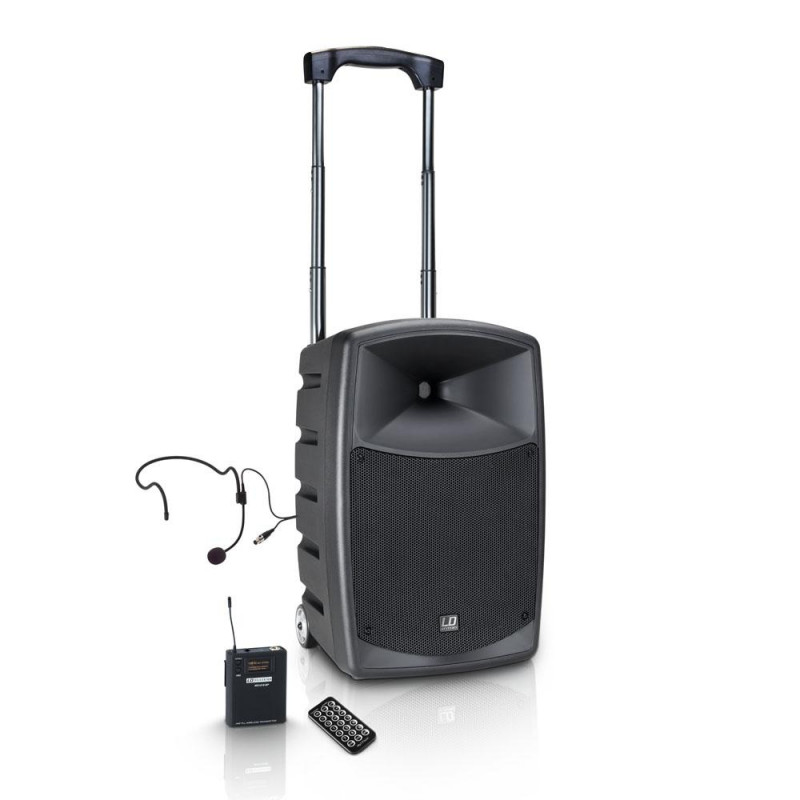

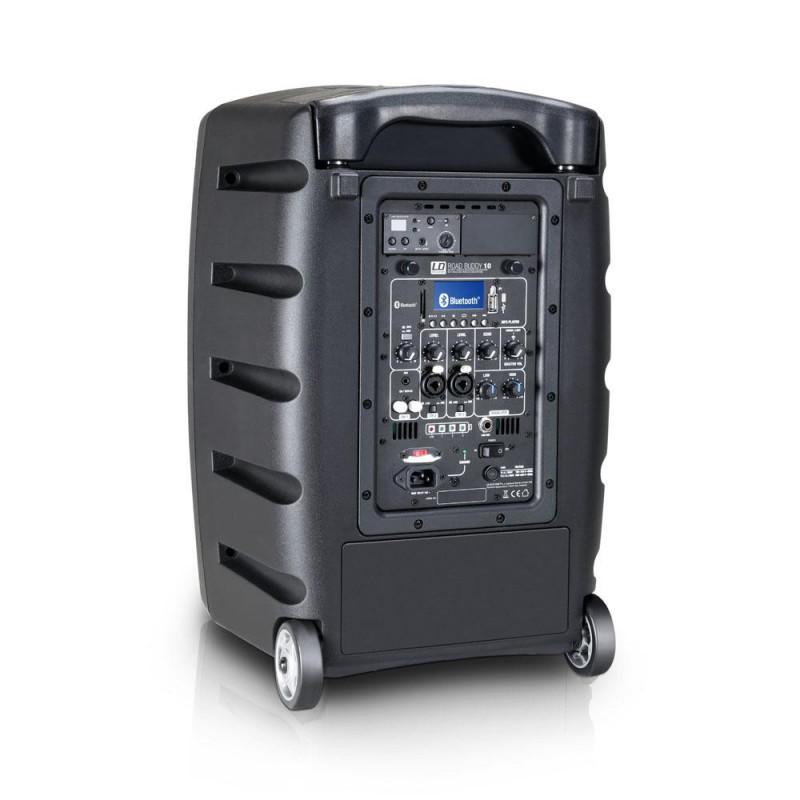

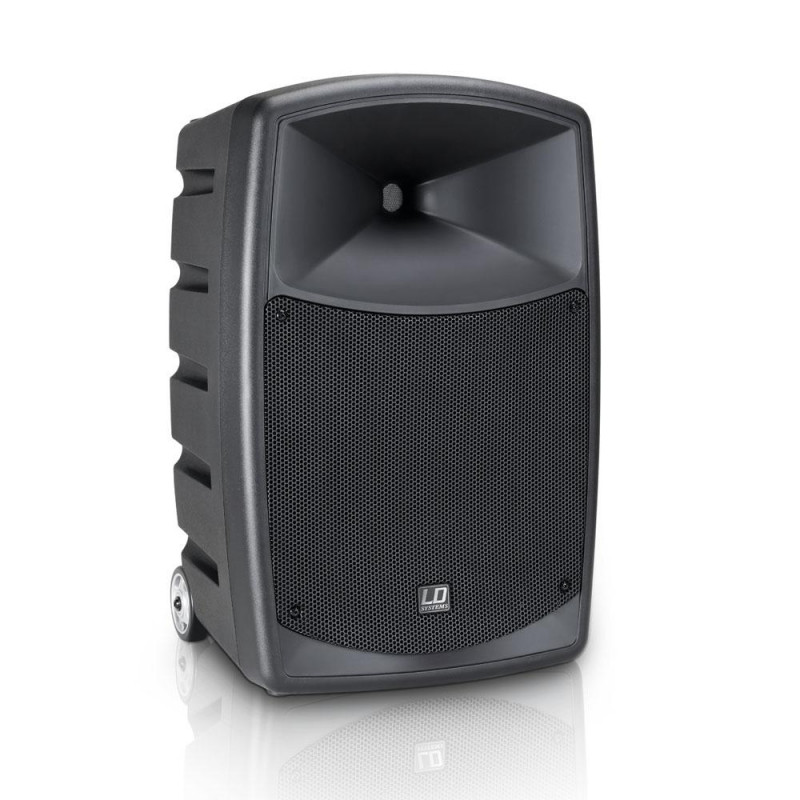

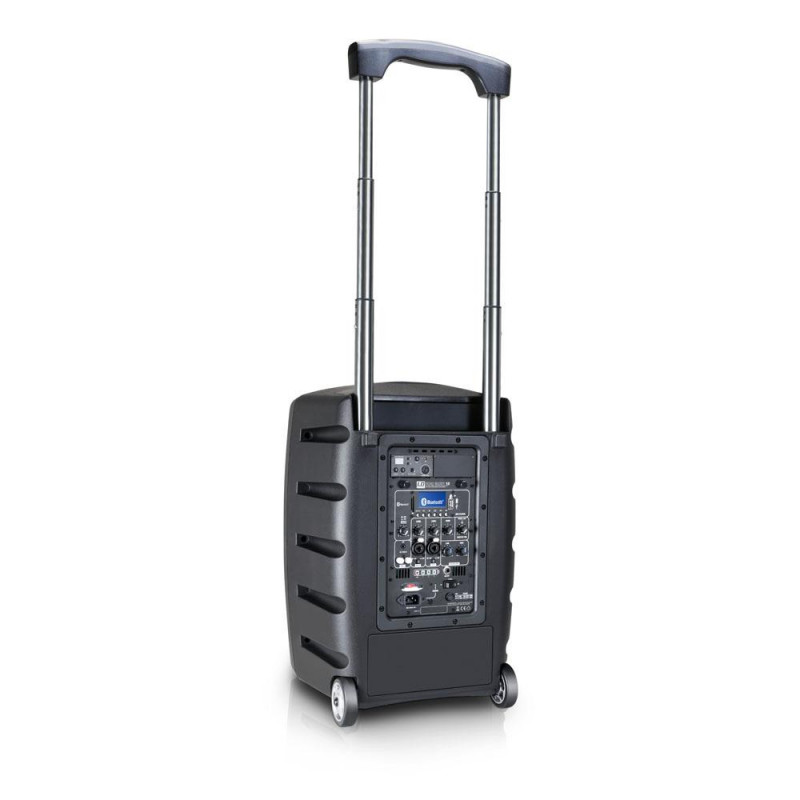

Battery-powered PA speaker

Low/mid driver dimensions

10 "

Woofer Size

254 mm

Woofer magnet

Ferrite

Woofer brand

Custom-made

HF driver dimensions

1 "

HF Driver Size

25.4 mm

HF driver magnet

Ferrite

HF driver brand

Custom-made

Amplifier

Class D

RMS

120 W

Peak power

480 W

Frequency response

55 - 18000 Hz

SPL (1W/1m)

96 dB

Max. SPL

115 dB

Protection circuits

over-current , overload protection , short circuit

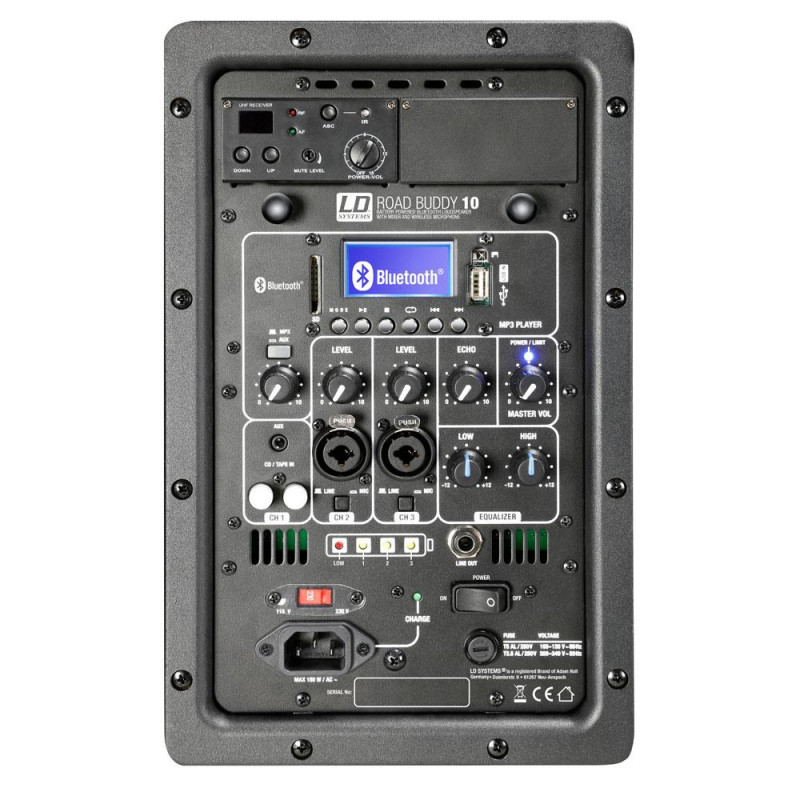

Controls

AUX / MP3 switch , CD / Tape IN Level , Echo , high , low , Master Volume , Mic 1 Level , Mic 2 Level , Total volume

Indicators

Charge/battery status , Power

Supported media

Bluetooth , SD Card , USB stick

Supported formats

MP3 file , WAV-CD , WMA file

Media player controls

equalizer , Mode (Menu / Bluetooth /SD / USB) , Next Track , Play / Pause , Previous Track , Repeat , Stop

Media player display elements

Lighted multifunctional LC display

Line inputs

1

Line input connectors

2 x RCA , 2 x XLR , 3.5 mm jack , 6.3 mm Jack

Mic inputs

2

Mic inputs

2 x XLR , 6.3 mm Jack

Transmission frequency range

584.000 - 607,000 MHz

Modulation Type

FM

Channels

16

Frequency Response Wireless Unit

50 - 17000lx @ 1m Hz

Controllers Wireless Unit

ASC , Mute Level (Squelch) , Power / Volume , Value Down , Value Up

Indicators Wireless Unit

AF (LED) , LED Display , RF (LED)

Connections Wireless Unit

nTNC for receiver antenna

RF Transmitter Power Output

10 mW

Bodypack weight

0.08 kg

Bodypack material

ABS plastic

Operating voltage

Switching Power Supply

Operating voltage

100 V - 120 V / 60 Hz , 220 V - 240 V AC / 50 Hz

Rechargeable batteries

12 V / 5 Ah

Cabinet material

polypropylene

Cabinet construction

vented

Width

415 mm

Height

525 mm

Depth

328 mm

Weight

16,5 kg

Other features

Stand mount 36 mm , Transport casters , transport handle
