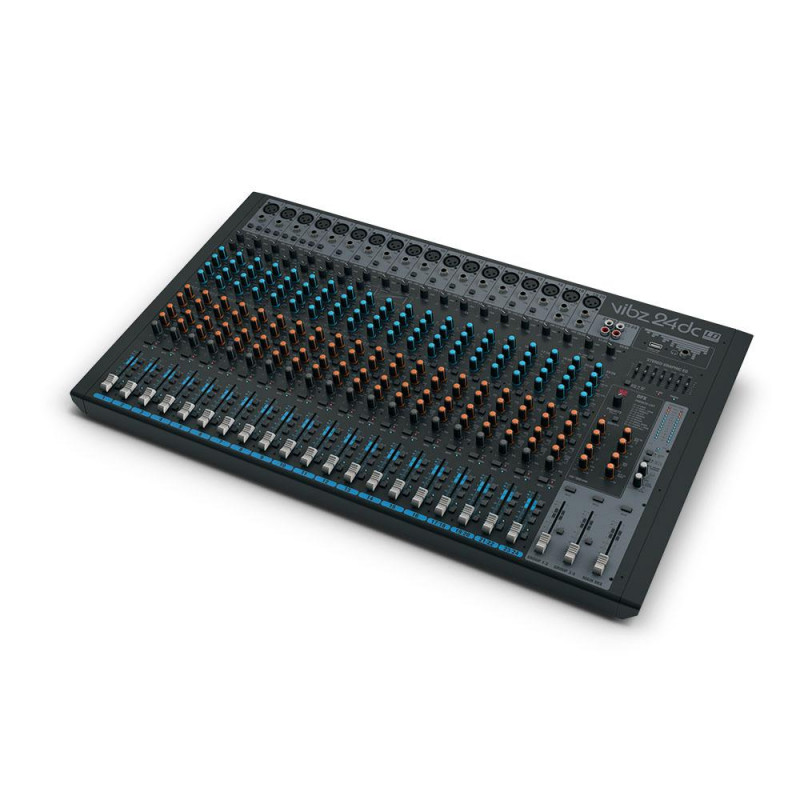

LD Systems - LDVIBZ24DC

LDVIBZ24DC

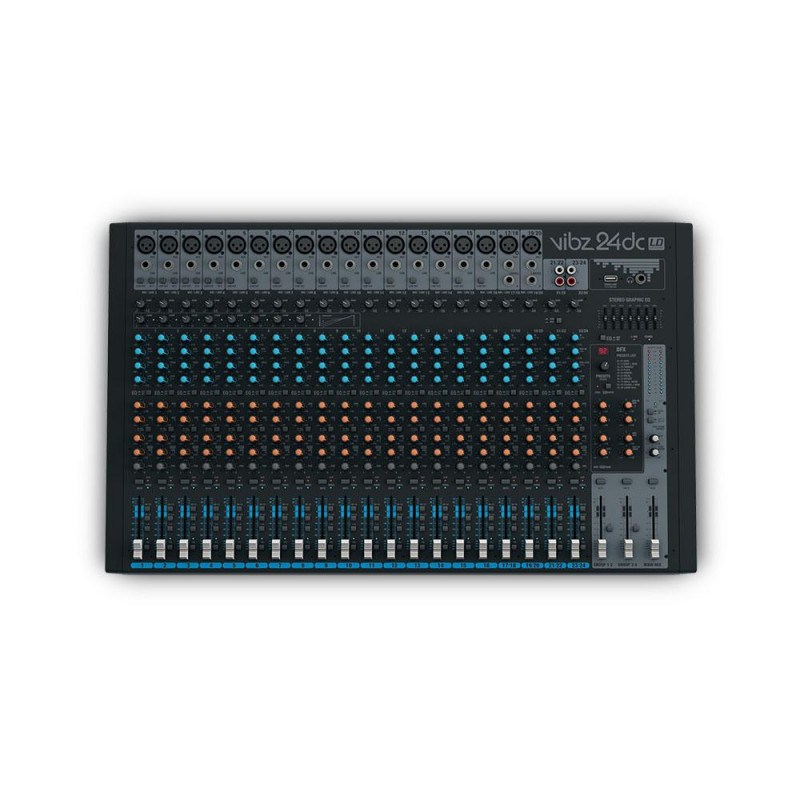

LD Systems VIBZ 24 DC 24 channel Mixing Console with DFX and Compressor. Price per piece.

In Stock

Europe Warehouse: 230

More info

  • 24-channel mixer with 16 mono and 4 stereo channels
  • Balanced mic and line inputs
  • 3-band EQ with semi-parametric mids
  • 4 aux sends, 2 pre or post fader switchable
  • 8 mono channels with inserts and compressor
  • Channel routing, mute and PFL switches
  • 48V phantom power
  • 4 subgroups with individual outputs
  • 24-bit digital effects and global 7-band graphic EQ
  • Balanced and unbalanced main outputs
  • Control room and headphone outputs
  • 10 Hz – 45 kHz frequency response
Product type
Mixers

Type
Home-Recording , Live

Channels
24

microphone


Mono Mic and Line Input Channels
16

Mono Mic input connectors
6.3 mm TRS , XLR

Mono Mic Input Type
electronically balanced

Mono Mic Input Frequency Range
10 - 45000 Hz

Amplification Range mono Mic Input
0 - 50 dB

Mono Mic Input Input THD-N
0.0058%

Mono Mic Input Impedance
4000 Ohm(s)

Mono Mic Input S/N Ratio
113 dB

Mono Line Input Type
electronically balanced

Mono Line Input Frequency Range
10 - 45000 Hz

Amplification Range mono Line Input
0 - 50 dB

Mono Line Input Input THD-N
0.0045 %

Mono Line Input Impedance
21000 Ohm(s)

Mono Line Input S/N Ratio
116 dB

Mono Channel Equalizer High
+/-15 dB @ 12.000 Hz

Mono Channel Equalizer Mid
+/-15 dB @ 2.500 Hz

Mono Channel Equalizer Low
+/-15 dB @ 80 Hz

Controls Mono Mic and Line Input Channels
3-band EQ (High, Mid, Low) , AUX Send 1-2 pre (AUX2 pre/post switchable) , AUX Send 3-4 (post) , Bal , Channel Fader , Fader Routing switch (Group 1/2, Group 3/4, Main L+R) , Gain , LINE/USB -switch (Channel 21 - 24) , PFL / Solo Switch

Phantom power
48 V DC switchable

Mono Inserts
8

Mono Inserts Connectors
6.3mm jack

Stereo Channels:


Stereo Line Input Channels
4

Stereo Line Input Connectors
6.3 mm TRS

Stereo Line Input Type
electronically balanced , unbalanced

Stereo Line Input Frequency Range
10 - 45000 Hz

Amplification Range stereo Line Input
0 - 50 dB

Stereo Line Input Input THD-N
0.0045 %

Stereo Line Input Impedance
37000 Ohm(s)

Stereo Line Input S/N Ratio
116 dB

Stereo channel equalizer treble
+/-15 dB @ 12.000 Hz

Stereo channel equalizer hi-mids
+/-15 dB @ 2.500 Hz

Stereo channel equalizer low-mids
+/-15 dB @ 2.500 Hz

Stereo channel equalizer bass
+/-15 dB @ 80 Hz

Controls Stereo Line Input Channels
7-band graphic EQ , AUX/DFX Send 1 - 4 , DFX Mute , DFX Presets , DFX to Aux , DFX to Main , EQ on/off , GROUP to Main -switch , Main Mix Fader , mains switch , Phantom Power , Phones/CTRL Fader , TK In To Main/To CTRL , USB Type B

Main Section:


AUX / Effects Send Channels
4

AUX / Effects Send Connectors
6.3 mm TS

Stereo AUX Return Channels
1

Stereo AUX Return Connectors
6.3 mm TS

Group Out
4

Group Out Connectors
4 x 6,3mm TRS

Max. Unbalanced Stereo Main Out Level
22 dBu

Stereo Control Room Out
1

Stereo Control Room Out Connectors
2x 6.3 mm TRS

Headphones ouput
1

Headphones outputs
6.3 mm TRS

Digital Effects Processor
yes

Number of Presets
100

DMX output
1

DMX output connectors
2x 6.3 mm TRS

Footswitch Connector DFX Mute
6.3 mm TS

Main section controls
7-band graphic EQ , AUX/DFX Send 1 - 4 , DFX Mute , DFX Presets , DFX to Aux , DFX to Main , EQ on/off , GROUP to Main -switch , Main Mix Fader , mains switch , Phantom Power , Phones/CTRL Fader , TK In To Main/To CTRL

Indicators
DFX Peak , DFX to Main , PFL indicator , Phantom Power , Power , signal

Operating voltage
100 V AC - 240 V AC, 50 - 60 Hz

Width
712 mm

Height
80 mm

Depth
425 mm

Weight
9,442 kg
