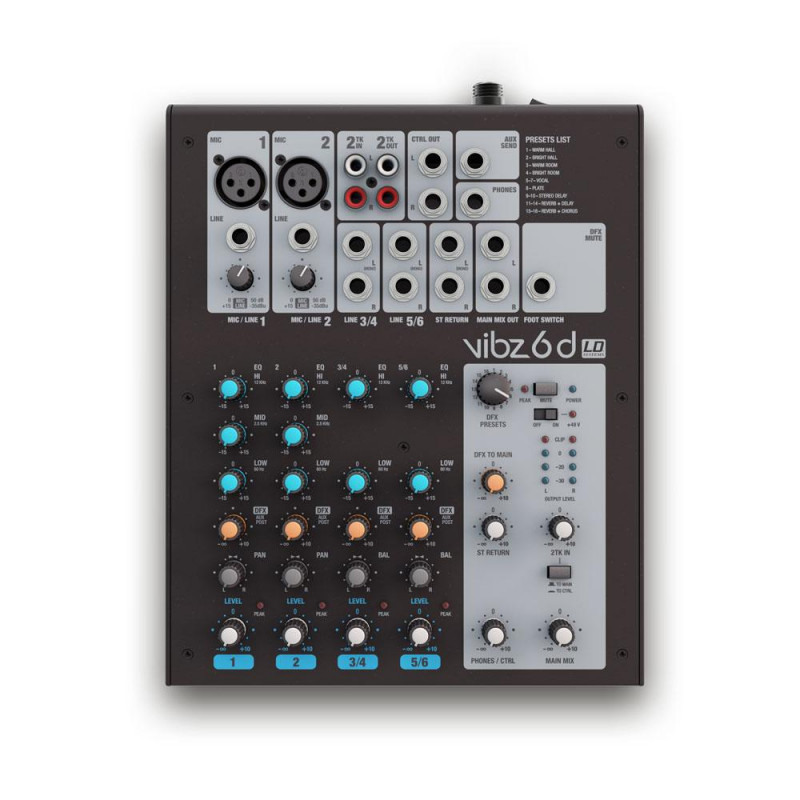

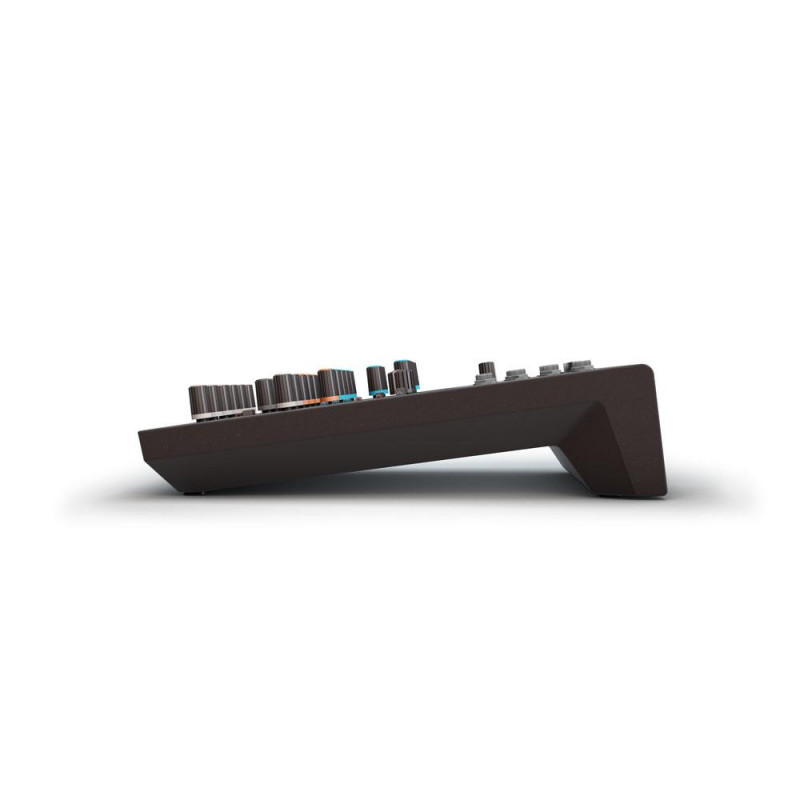

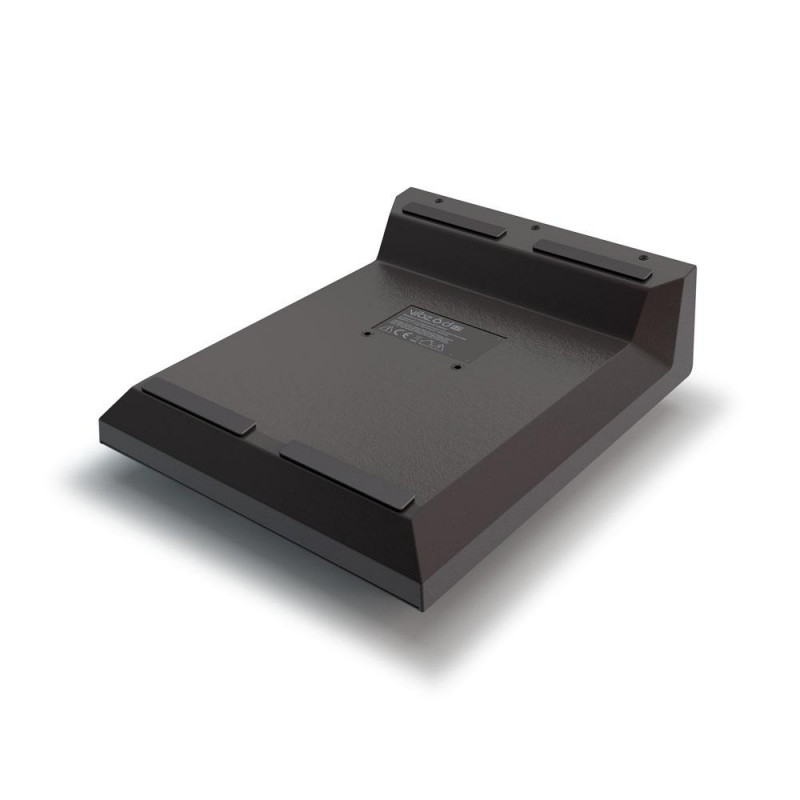

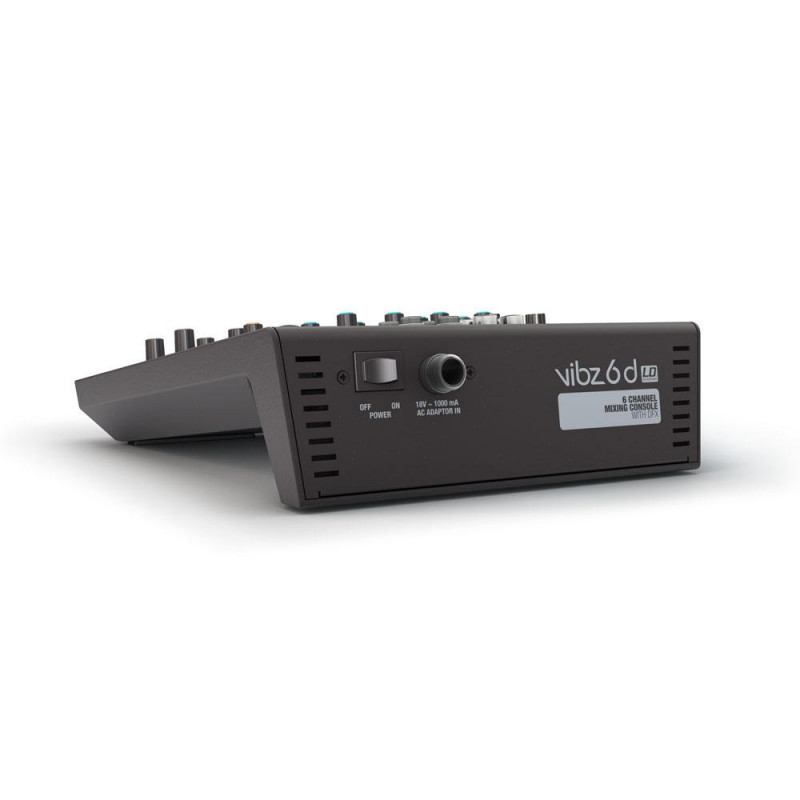

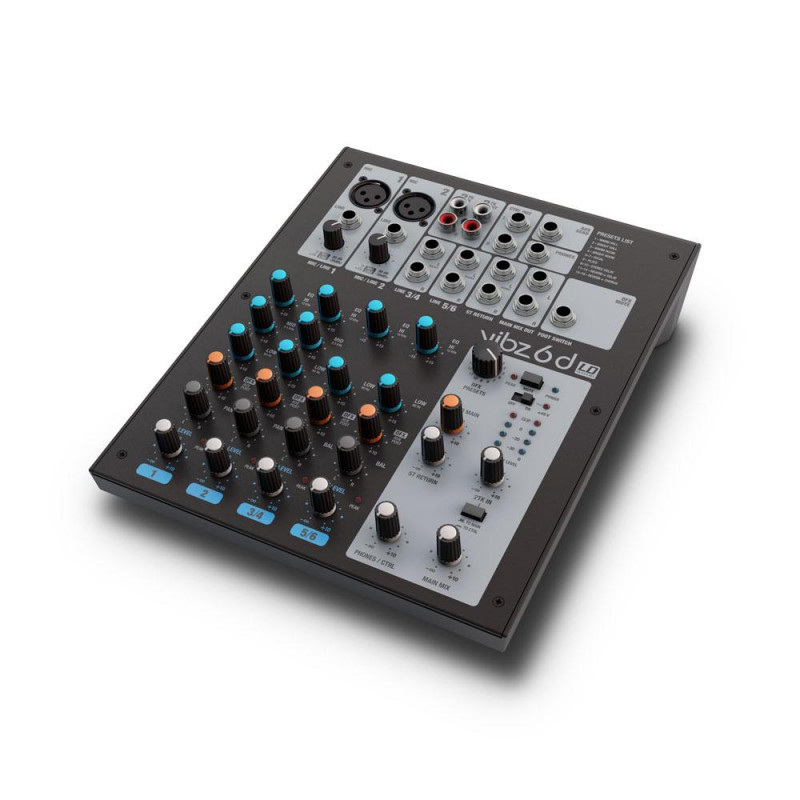

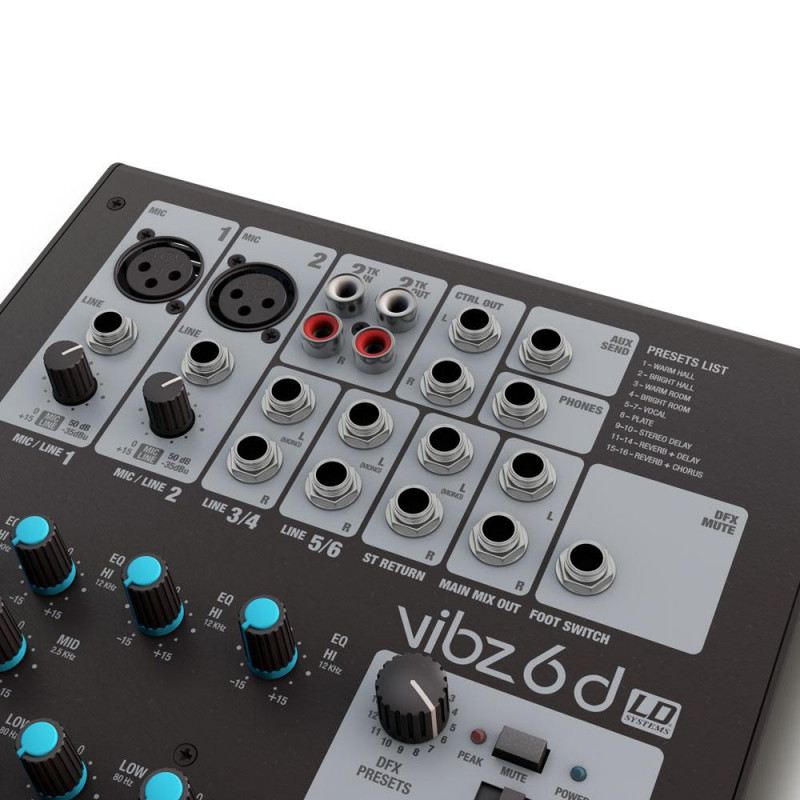

LD Systems - LDVIBZ6D
LD Systems VIBZ 6 D 6 channel Mixing...
-
Dap Audio - FS173
3 m Neutrik
More info
6-channel mixer with 16 digital effects
2 microphone channels with 3-band EQ
2 mono-compatible stereo line channels with 2-band EQ
Master, Monitor and headphone outputs
Securely fastening external power supply
Product type
Mixers
Type
Live
Channels
6
Mono Channels:
Mono Mic and Line Input Channels
2
Mono Mic input connectors
6.3 mm TRS , XLR
Mono Mic Input Type
electronically balanced
Mono Mic Input Frequency Range
10 Hz
Amplification Range mono Mic Input
0 - 50 dB
Mono Mic Input Input THD-N
0.0058%
Mono Mic Input Impedance
4k Ohm(s)
Mono Line Input Type
electronically balanced
Mono Line Input Frequency Range
10 Hz
Amplification Range mono Line Input
0 - 50 dB
Mono Line Input Input THD-N
0.0045 %
Mono Line Input Impedance
21k Ohm(s)
Mono Line Input S/N Ratio
116 dB
Mono Channel Equalizer High
+/- 15 dB @ 12000 Hz
Mono Channel Equalizer Low
+/- 15 dB @ 80 Hz
Controls Mono Mic and Line Input Channels
3-band EQ (High, Mid, Low) , AUX (DFX) Post , Channel Volume , Gain , pan
Phantom power
48 V DC switchable
Stereo Channels:
Stereo Line Input Channels
2
Stereo Line Input Connectors
6.3 mm TS
Stereo Line Input Type
unbalanced
Stereo Line Input Frequency Range
10 - 54000 Hz
Stereo Line Input Input THD-N
0.0045 %
Stereo Line Input Impedance
3,7k Ohm(s)
Stereo Line Input S/N Ratio
116 dB
Stereo channel equalizer treble
+/- 15 dB @ 12000 Hz
Stereo channel equalizer bass
+/- 15 dB @ 80 Hz
Controls Stereo Line Input Channels
2-band EQ (High,Low) , AUX (DFX) Post , Balance , Channel Volume
Main Section:
AUX / Effects Send Channels
1
AUX / Effects Send Connectors
6.3 mm stereo jack unbalanced
Stereo AUX Return Channels
1 x stereo
Stereo AUX Return Connectors
2 x 6.3 mm TRS
Stereo Tape Out Channel
1 x stereo
Stereo Tape Out Connectors
2 x RCA (Cinch)
Stereo Tape In Channel
1 x stereo
Stereo Tape In Connenctors
2 x RCA (Cinch)
Unbalanced stereo Main Outputs
1
Unbalanced stereo Main Output Connections
6.3 mm TRS
Unbalanced Stereo Main Out Impedance
120 Ohm(s)
Max. Unbalanced Stereo Main Out Level
+20 dBu
Stereo Control Room Out
1
Stereo Control Room Out Connectors
6.3 mm stereo jack unbalanced
Headphones ouput
1
Headphones outputs
6.3 mm TRS
Digital Effects Processor
Yes, 24-bit AD/DA Resolution
Number of Presets
16
Footswitch Connector DFX Mute
6.3 mm TRS
Main section controls
2-track Assignment (Main, Contr. Room) , 2-track In Volume , DFX Mute Schalter , DFX Presets , DFX To Main Volume , Master Volume , Phantom Power , Phones / Control Room Volume , Stereo Return Volume
Indicators
4-segment Level Meter , Channel Peak , DFX Peak / Mute , Phantom Power , Power
Operating voltage
18 V AC - 1 A, External PSU
Width
209 mm
Height
68 mm
Depth
260 mm
Weight
1,45 kg
