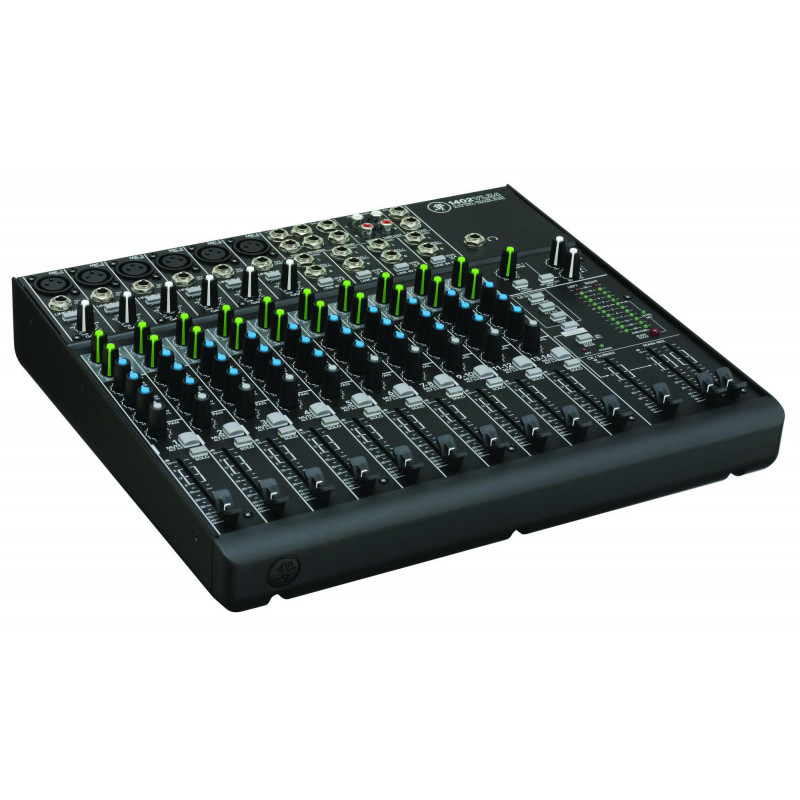

TABLE OF BLENDS Mackie mixer 1402VLZ4. The 14-channel 1402VLZ4, with the previous Mackie Onyx badge, offers a professional high-threshold / low-noise design, `` Built-Like-A-Tank '' construction, all in an ultra-compact format ideal for desktops. - 6 previous micro Onyx, ultra wide range of 60 dB gain, 128.5 dB dynamic range, line input + 22 dBu, extended frequency response, distortion less than 0.0007% (20Hz - 50kHz). Improved RF rejection, perfect for broadcast applications. Phantom power for condenser microphones. 14 high threshold line inputs with poetry control + 4 / -10. 3-band EQ (80 Hz, 2.5 kHz, 12 kHz). Low cut filter 18 dB / octave 75 Hz in the microphone input channels. 2 AUX, level, Pan and PFL shipments Only on each channel. 60mm faders 2 stereo returns to connect effect units or other stereo sources. ALT 3/4 stereo bus for flexibility in routing. Stereo 12-segment high resolution meters. Rotary controls sealed, resist dust and dirt. Robust '' Built-Like-A-Tank '' steel chassis with powder paint finish. Designed for rack with optional mounting kit. Universal power supply for worldwide use.
