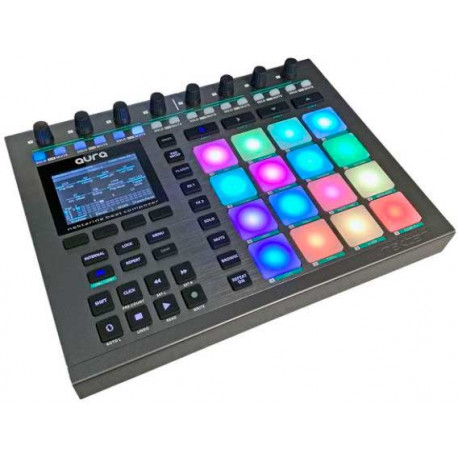

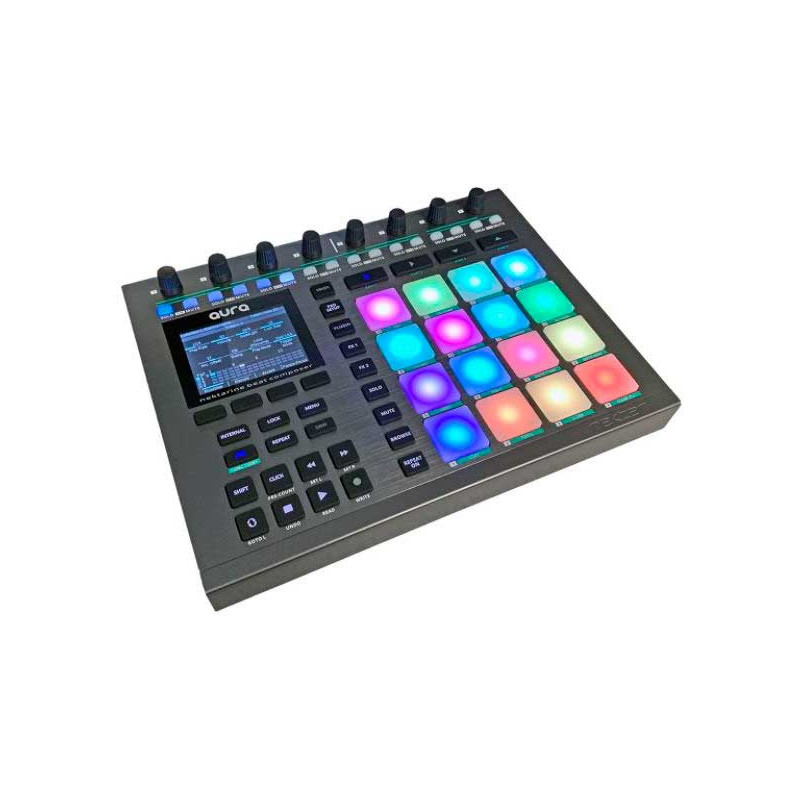

SEQUENCER-ARRANGER HARDWARE MODULE:• 16 pressure and speed sensitive pads illuminated in RGB colors
• 8 good touch potentiometers (360 degrees, endless)
• TFT color screen with 320 × 240 px that includes 4 soft buttons
• 16 RGB LED buttons
• 8 Nektarine buttons for direct access to patches, mixer, pad settings, plugins and more
• 6 mode buttons
• 7 transport buttons with LED illumination
• Pots, switches and pads fully programmable by MID
• 16 presets for store all internal mapping settings (not required when using Nektarine)
• Rugged case with aluminum lid

CONNECTIONS
• MIDI out connector
• 1/4″ TRS footswitch socket (for up to 2 footswitches with optional Y-adapter)
• USB connector
• Power connector (9V DC / 600 mA, center positive. Power supply not included)
• Slot Kensington anti-

theft WEIGHT AND DIMENSIONS
• 30.1 cm (length) x 23.1 cm (depth) x 4.5 cm (height), 1.4 kg SYSTEM

REQUIREMENTS
• AURA: compatible USB Class compliant Plug and Play (not need drivers) works with Windows XP, Vista, 7, 8, 10 or higher.
Mac OS

Mac OS
_
• Each pattern with up to 4 parts for a total of up to 64 steps
• Dedicated programming interface with 16 RGB buttons and part selection buttons
• Real-time performance functions (solo, mute, instant start options and more)
• Activate Sequencer parts in any combination at any time
• Independent settings per part (playback rate, step length, velocity, accent, gate, swing and more)
• Extensive editing functions down to the step level
• Internal and external clock operation PAD REPEAT MOTOR lock automation on/off
• 8 real-time adjustable parameters incl. note duration, accent level and interval and repetition frequency
• Repeat rate setting and dedicated trigger buttons
• Screen button for instant pressure-to-velocity mapping
• Tap tempo function
• NEKTARINE internal and external clock operation
• Compatible with AAX, AU, VST or VST3 plugin versions and app standalone for OSX and Windows
• Load VST, VST3 and AU instrument plugins
• 16 instrument plugin slots
• Each instrument slot with choke, volume, pan, mute/solo, sends 1-4 controls
• 4 instrument plugin slots effects insertion per instrument (AU/VST/VST3 FX)
• 4 slots for send effects plugins (AU/VST/VST3 FX)
• Storage and saving of effects and instrument plugin patches
• The sound browser configuration remembers the plugin slot in which we work
• Handles all the administration of sounds, plugins and their patches with complete control from AURA of everything
• Control page editor to customize Nektar plugin mappings or create new ones from scratch
• Full parameter feedback: display updated in real time
• Scale and chord mode to create our tracks
• Multi-Patch settings with Pad are saved as 'default' loading: all browser settings can be saved with labels for slots, 'kick' label, slot 1, etc.

AURA NEKTAR DAW INTEGRATION SUPPORTS
• Ableton Live Suite
• Apple Logic + Garageband
• Bitwig 8 Track + Studio
• Reaper
• Digital Performer MOTU
• Presonus Studio One
• Reason Studios Reason
• Steinberg Cubase + Nuendo
