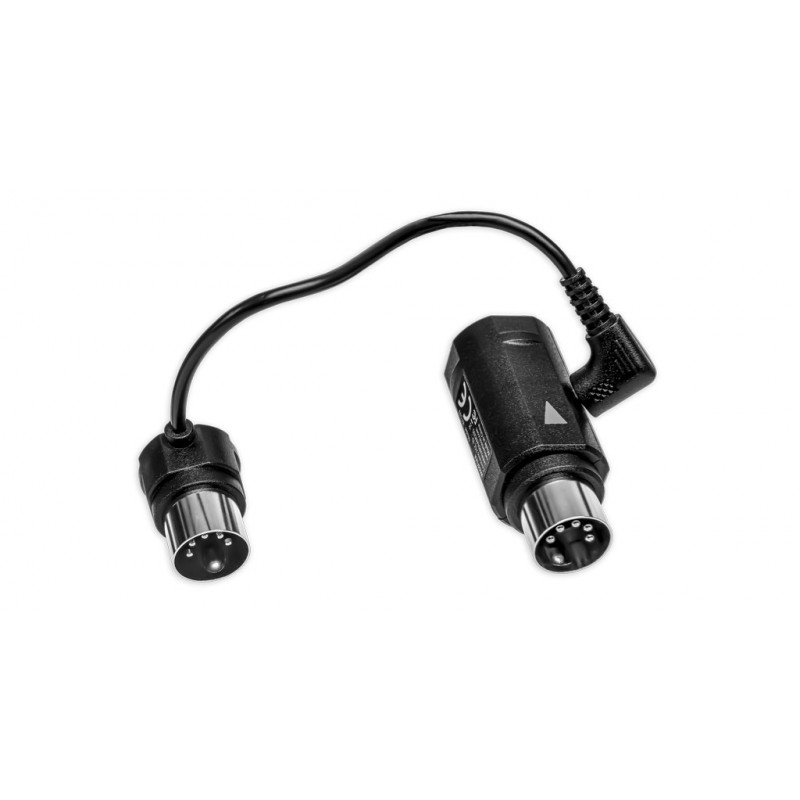

MIDI-USB INTERFACE The WIDIFLEX is a set of two 5-pin MIDI Din connectors that adds wireless BLE MIDI to almost any standard MIDI device. Connected to the device's MIDI jacks, Auto Pairing takes care of instant setup and connects the WIDIFLEX automatically with other BLE MIDI or WIDI products. The larger plug includes all wireless functionality and connects to the MIDI output, the smaller one to the MIDI input. As the WIDIFLEX is powered by the device's MIDI bus, it does not require any external power supply.

To connect two standard MIDI instruments, simply plug one set of WIDIFLEX each into the instruments' MIDI ports. It is also possible to establish a direct Bluetooth connection with MacOS and iOS devices - for Windows the best option is to use a WIDIFLEX USB to provide BLE MIDI functionality.

- Wireless MIDI via Bluetooth LE (BT4/5)
- 100% MIDI compatible: Transmits all MIDI data, including MIDI clock, SysEx and MPE
- Automatic pairing, also with standard BLE MIDI controllers
- Supports groups of up to 5 Bluetooth MIDI devices and multiple fixed pairs
- Extremely low latency: 3 ms (tested with 2 WIDIFLEX devices paired)
- Free WIDI app for iOS/Android to manage settings, groups and update Firmware easily.
- Direct connection with Bluetooth MIDI devices, Mac OS/iOS (BT 4.0 or later) and all WIDI devices
- Supported operating systems: iOS 8 or later, Mac OS Yosemite or later, any MIDI operating system
(Windows/Linux) if installed pair with optional WIDIFLEX USB, Windows 10 via Korg BLE MIDI controllers
- Range: 20 meters / 65 feet without obstruction
- Technology: High-performance Bluetooth Low Energy 5 (BLE5) with Adaptive Frequency
Hopping for minimal interference, Secure connectivity and optimal wireless performance.
- Connections: Set of two 5-pin MIDI DIN connectors (1x MIDI in / 1x out)
- Powered by the MIDI output of the host device (5V/3.3V)
Weight and dimensions:
-Main unit: 12 g, 21 x 21x 49mm
-Sub Unit: 11g, 18 x 18 x 24mm
