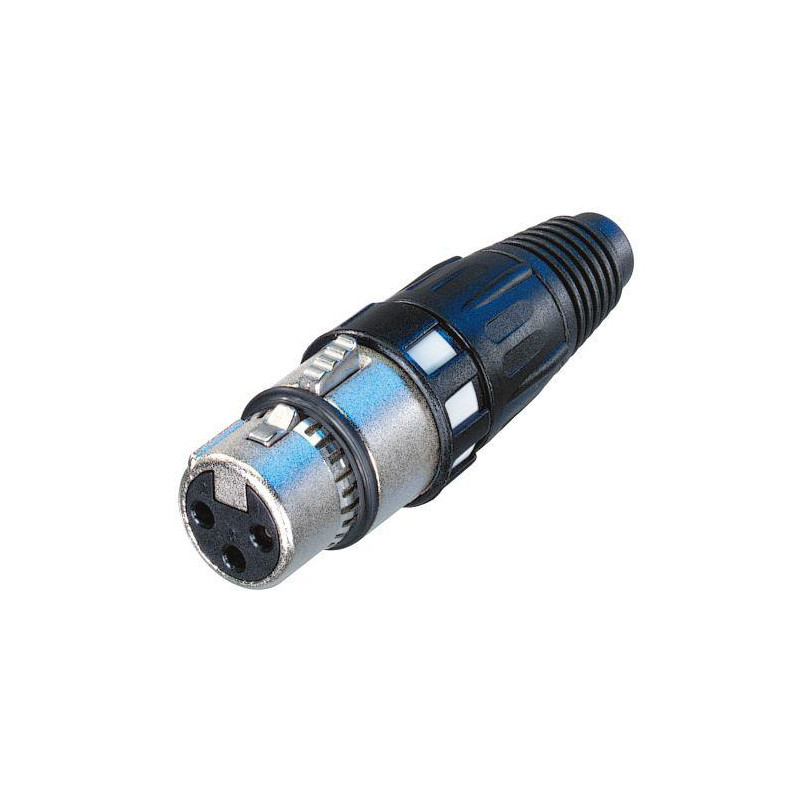

Neutrik - CONECTOR NC 3 FX CC 1 View larger

Neutrik - CONECTOR NC 3 FX CC

CONECTOR NC 3 FX CC

3 pole female cable connector, RF-protected, gold contacts Cable O.D.: 5.4 - 6.2 mm Crimp Size Shield: 6.5 mm (hex) The XCC XLR cable connector Series  with circumferential shield contact provides excellent RF-protection to transmit digital audio signals most efficient and reliable. This XLR features a coaxial ground spring and a coaxial hex crimp ferrule at the cable entrance for proper and reliable transition of the shield to the shell.

21,00 €

Add to wishlist

In Stock

Europe Warehouse: 193

More info

Features & Benefits

  • 3 pole cable connector with a circumferential shield contact for best EMI protection
  • XCCR coding ring to indicate digital AES signals included
  • Rugged zinc diecast shell, long lasting and durable
  • Chuck type strain relief system for secure clamping of cables
  • Boot with rubber gland gives high protection against bending stresses

Technical Information

Product
TitleNC3FXCC
Connection TypeXLR
Genderfemale
Electrical
Capacitance between contacts≤ 4 pF
Contact resistance≤ 3 mΩ
Dielectric strength1,5 kVdc
Insulation resistance> 10 GΩ (initial)
Rated current per contact16 A
Rated voltage< 50 V
Shielding effectiveness> 55 dB @ 1.3 GHz
Mechanical
Cable O.D.5.4 - 6.2 mm
Crimp size6,47 Hex crimp (shield) acc. IEC 60803 (die designation E)
Insertion force≤ 20 N
Withdrawal force≤ 20 N
Lifetime> 1000 mating cycles
Wiresizemax. 2.5 mm²
Wiresizemax. 14 AWG
WiringSolder contacts
Locking deviceLatch lock
Material
BootPolyurethan
Coding RingPA 6 15% GR
Contact plating0.2 µm Au hard alloy over 2 µm Ni
ContactsBronze (CuSn8)
Crimp ferruleCuZn39Pb3, Ni plated
InsertPolyamide (PA 6.6 30 % GR)
Locking elementSt3K32 (latch) / Ck 67 (spring)
ShellZinc diecast (ZnAl4Cu1)
Shell platingNickel
Strain reliefPolyacetal (POM)
Circumferential ground springCuSn6, Ni plated
Environmental
ApprovalsUL
FlammabilityUL 94 HB
Standard complianceIEC 61076-2-103
Protection classIP 40
SolderabilityComplies with IEC 68-2-20
Temperature range-30 °C to +80 °C

Reviews

No customer comments for the moment.

Write a review

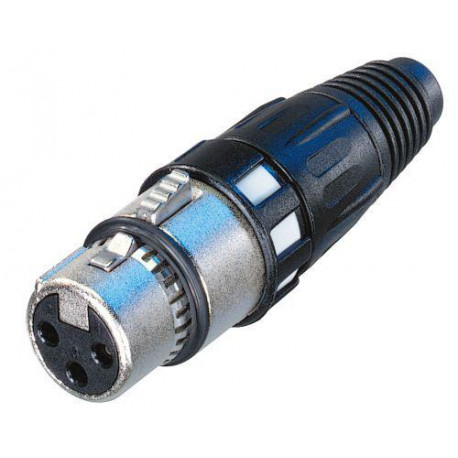

Neutrik - CONECTOR NC 3 FX CC
