  5. Neutrik - CONECTOR NE 8 FDP-R-B

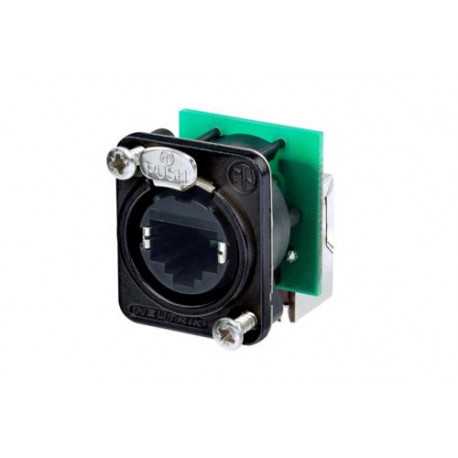

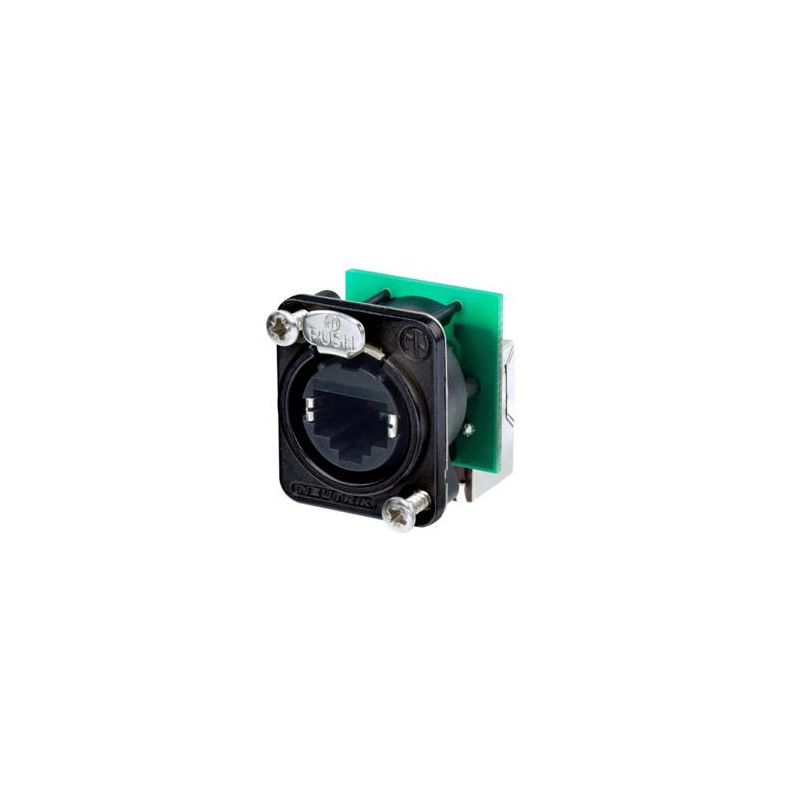

Neutrik - CONECTOR NE 8 FDP-R-B 1 View larger

Neutrik - CONECTOR NE 8 FDP-R-B

CONECTOR NE 8 FDP-R-B

Right angle RJ45 feedthrough receptacle, black D-shape metal flange with latch lock, mounting screws included The etherCON Series is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry. The D-Series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market. Attention! Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables.

26,00 €

Add to wishlist

In Stock

Europe Warehouse: 130

More info

Features & Benefits

  • Right angle CAT5e jack for space saving connections on the rear
  • Accommodates NE8MC* or any standard RJ45 plugs
  • Approved latch lock system
  • Mountable from the front or rear of the panel
  • Complies with CAT5e according to TIA / EIA 568B and ISO / IEC 11801 standards

Technical Information

Product
TitleNE8FDP-R-B
Genderfemale
Electrical
Contact resistance< 10 mΩ
Dielectric strength1 kVdc
Frequencyrange1 - 100 MHz
Insulation resistance> 0.5 GΩ
Rated current per contact1.5 A
Rated voltage< 50 V
Transmission performanceCAT 5e
Standard complianceTIA/EIA 586B, IEC11801
Mechanical
Insertion force≤ 20 N
Withdrawal force≤ 20 N
Lifetime> 1000 mating cycles
Panel thicknessmax. 4 mm , 0.16''
Wiresize
WiringFeedthrough
Locking deviceLatch lock
Chassis shapeD
Material
Contact plating0.2 µm Au over Ni plating
ContactsBronze (CuSn8)
InsertPBTP 15 % GR
ShellZinc diecast (ZnAl4Cu1)
Shell platingBlack chrome
Environmental
FlammabilityUL 94 V-0
Temperature range-30 °C to +80 °C
