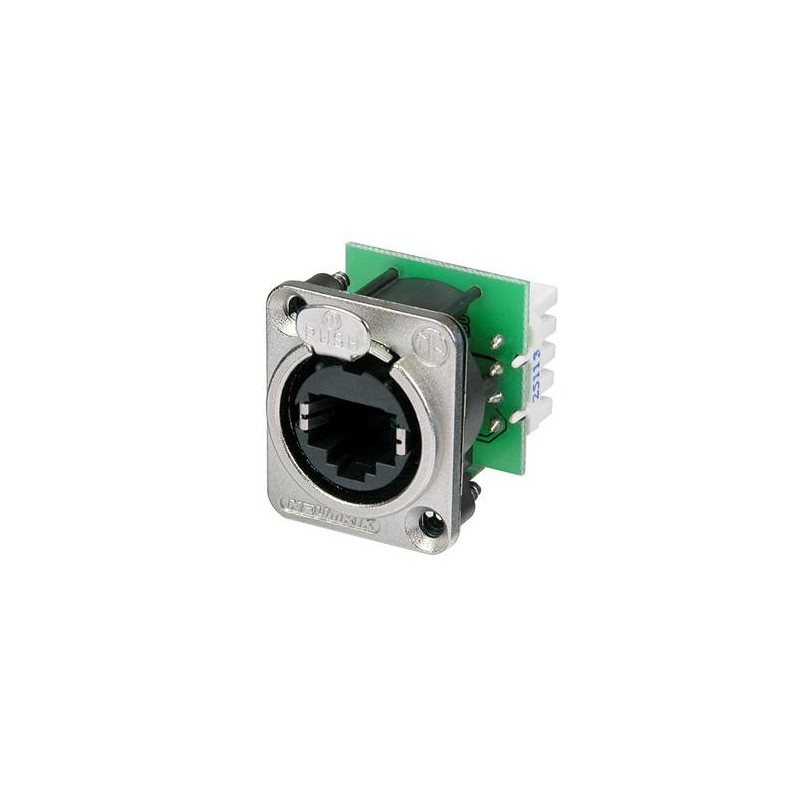

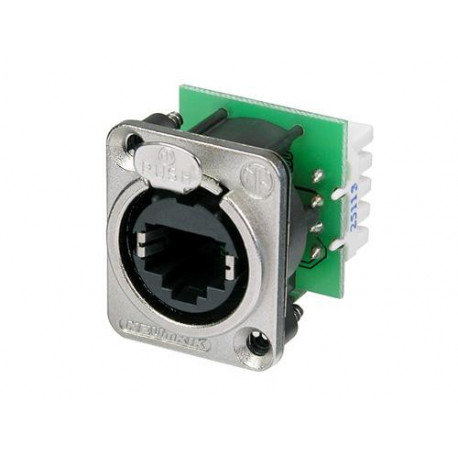

Neutrik - CONECTOR NE 8 FDV-YK 1 View larger

Neutrik - CONECTOR NE 8 FDV-YK

CONECTOR NE 8 FDV-YK

Panel mount receptacle with IDC punch down terminals, D-sized metal flange with latch lock, max. panel thickness 4 mm, mounting screws included The etherCON Series is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry. The D-Series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market. Attention! Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables.

19,00 € tax incl.

Receive it between %MINIMAL_DATE% and %MAXIMAL_DATE% depending on the chosen shipment. There are %NB_TOTAL_CARRIERS% shipping option/s. +info

Add to wishlist

Free shipping available for this product!

In Stock

Europe Warehouse: 70

More info

Features & Benefits

  • Accommodates NE8MC* or any standard RJ45 plug
  • Approved latch lock system
  • Mountable from the front or rear of the panel
  • Complies with Cat 5e according to TIA / EIA 568B and ISO / IEC 11801 standard
  • Selectable ground - panel connection
  • Easy and quick mounting using Krone punch down terminals

Technical Information

Product
TitleNE8FDV-YK
Genderfemale
Electrical
Contact resistance< 10 mΩ
Dielectric strength1 kVdc
Frequencyrange1 - 100 MHz
Insulation resistance> 0.5 GΩ
Rated current per contact1,5 A
Rated voltage< 50 V
Transmission performanceCAT 5e
Standard complianceTIA/EIA 586B, IEC11801
Mechanical
Insertion force≤ 20 N
Withdrawal force≤ 20 N
Lifetime> 1000 mating cycles
Panel thicknessmax. 4 mm 0.16'
Wiresize0.14 - 0.5 mm²
Wiresize26 - 20 AWG
Locking deviceLatch lock
Chassis shapeD
Material
Contact plating0.2 µm Au over Ni plating
ContactsBronze (CuSn8)
InsertPBTP 15 % GR
ShellZinc diecast (ZnAl4Cu1)
Shell platingNickel
Strain reliefCuZn35Pb2, Tin plated
Environmental
FlammabilityUL 94 V-0
Temperature range-30 °C to +80 °C
