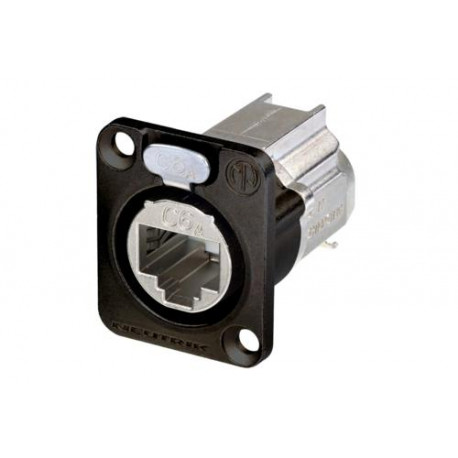

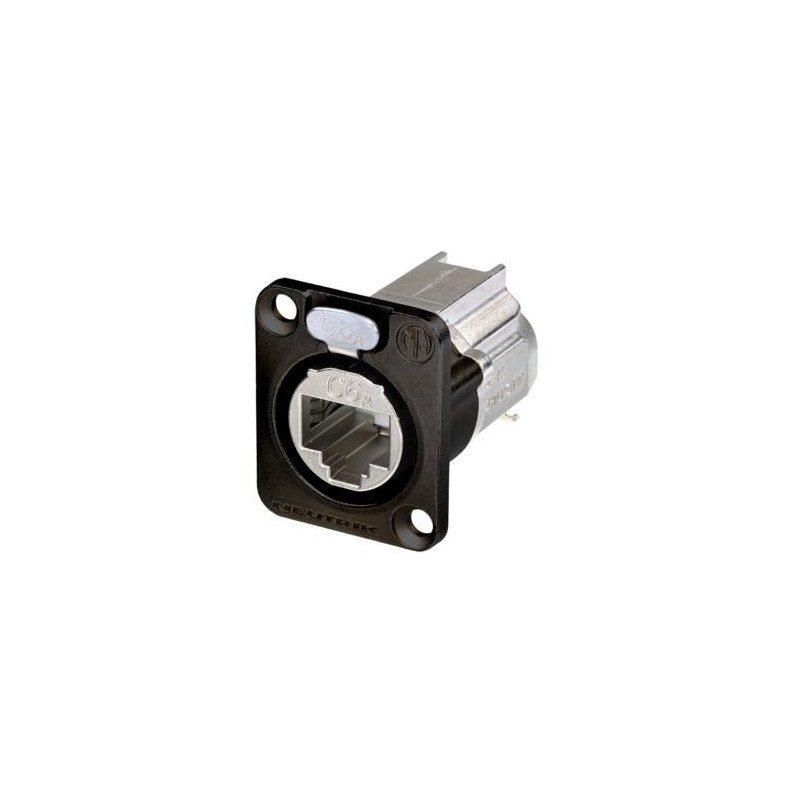

Reduced price! Neutrik - CONECTOR NE 8 FDX-Y6-B 1 View larger

Neutrik - CONECTOR NE 8 FDX-Y6-B

CONECTOR NE 8 FDX-Y6-B

D-shape CAT6A panel connector, shielded, IDC termination, black housing Attention! Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables.

46,00 € tax incl.

Receive it between %MINIMAL_DATE% and %MAXIMAL_DATE% depending on the chosen shipment. There are %NB_TOTAL_CARRIERS% shipping option/s. +info

Add to wishlist

Free shipping available for this product!

In Stock

Europe Warehouse: 115

More info

Features & Benefits

  • Ruggedized connector with CAT6A component compliance according to ISO/IEC 11801 and TIA/EIA 568-C.2
  • PoE+ compliant according to 802.3at Type2
  • Rugged latch lock system million fold proven
  • Intermateable with the existing etherCON CAT5 range
  • Shielded system - high noise immunity and EMI protection

Technical Information

Product
TitleNE8FDX-Y6-B
Genderfemale
Electrical
Dielectric strength1 kVdc
Insulation resistance> 0.5 GΩ
Rated current per contact1.5 A
Transmission performanceCAT6A, acc. TIA/EIA rating
CAT6A, acc. IEC/ISO/EN rating
Power over EthernetPoE+ acc. IEEE 802.3at
Mechanical
Lifetime> 1000 mating cycles
Wiresize
Wiresizesolid: AWG 26/1 - AWG 22/1
stranded: AWG 26/7 - AWG 22/7
Locking deviceLatch lock
Mounting directionFront mounting
Insulation diameter0.85 - 1.6 mm
Material
Contact platingAu
ShellZinc diecast (ZnAl4Cu1)
Shell platingBlack
Environmental
FlammabilityUL 94 V-0
Temperature range-40 °C to + 70 °C
