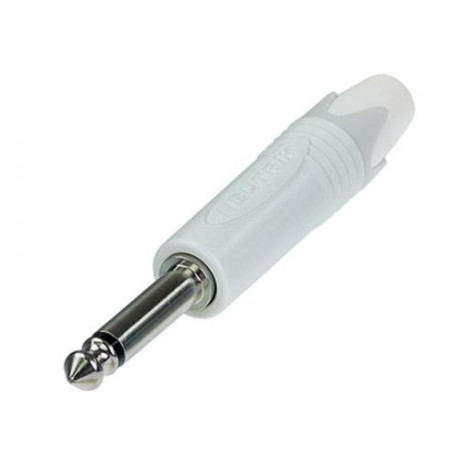

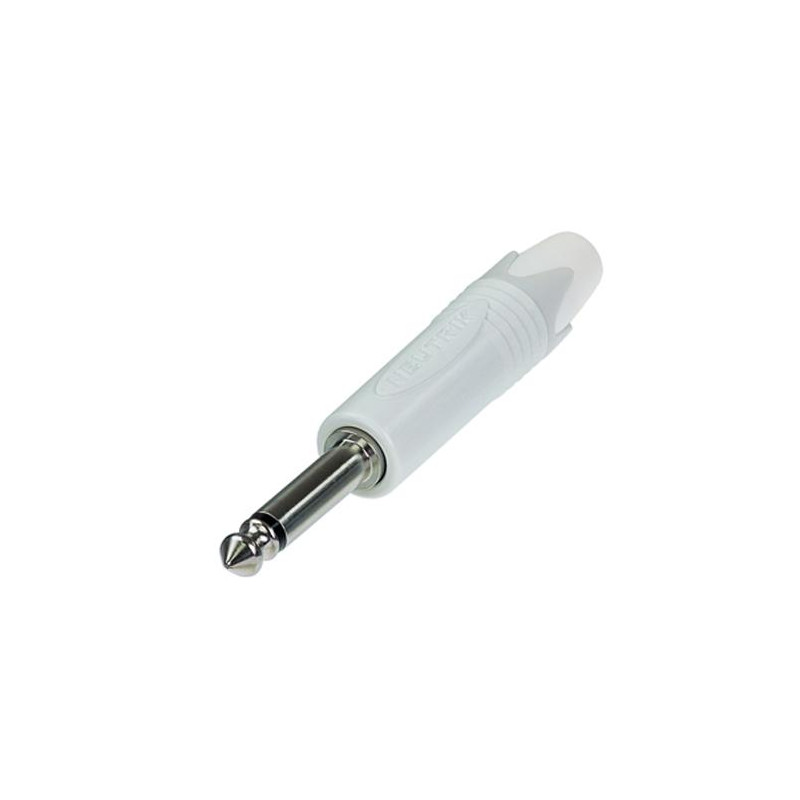

Neutrik - CONECTOR NP 2 X-WT 1 View larger

Neutrik - CONECTOR NP 2 X-WT

CONECTOR NP 2 X-WT

1/4" professional phone plug, 2 pole, nickel contacts, white painted shell The heavy duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4" plug with unique Neutrik chuck type strain relief on the market. The slimline shell with a width of 14.5 mm meets the most recent requirements for highest density jackfields (15.88mm jack pitch). The precise machined one-piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip. The Plug X Series serves all applications such as guitar applications, audio cables, snakes, speakers, amplifiers and mixing desks.

In Stock

Europe Warehouse: 172

More info

Features & Benefits

  • Extra slim 1/4" plug for highest packing density
  • Robust diecast shell in stylish design
  • Proven chuck type strain relief for reliable cable retention
  • Sleek design for best handling convenience
  • Precision machined one-piece contacts - avoid hook up of tip contact

Technical Information

Product
TitleNP2X-WT
Connection TypePlug
Gendermale
Electrical
Contact resistancedepends on mating connector mΩ
Dielectric strength1 kVdc
Insulation resistance> 2 (initial) GΩ ≥ 1 GΩ (after damp heat test)
Rated current per contactdepends on mating connector A
Rated voltage< 50 V
Mechanical
Cable O.D.4 - 7 mm
Lifetime> 1000 mating cycles
Wiresize1 mm²
Wiresize18 AWG
WiringSolder contacts
Material
BushingPolyacetal (POM) + PU
Contact plating2 µm Ni (Su)
ContactsBrass (CuZn38Pb3)
InsertPolyamdie (PA 6.6 30 % GR)
ShellZinc diecast (ZnAl4Cu1)
Shell platingWhite painted
Strain reliefPolyacetal (POM)
Environmental
Standard complianceIEC 60603-11 / EIA RS-453
SolderabilityComplies with IEC 68-2-20
Temperature range-20 °C to +65 °C
