  5. Neutrik - CONECTOR NP 2 XL

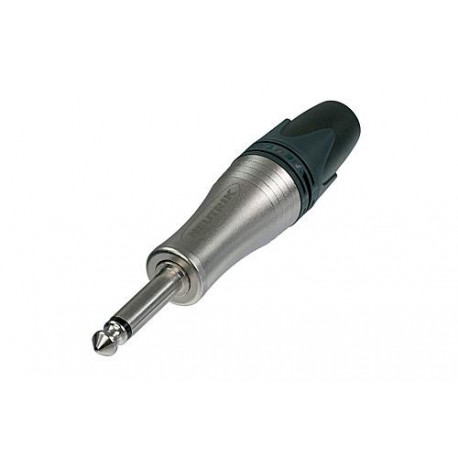

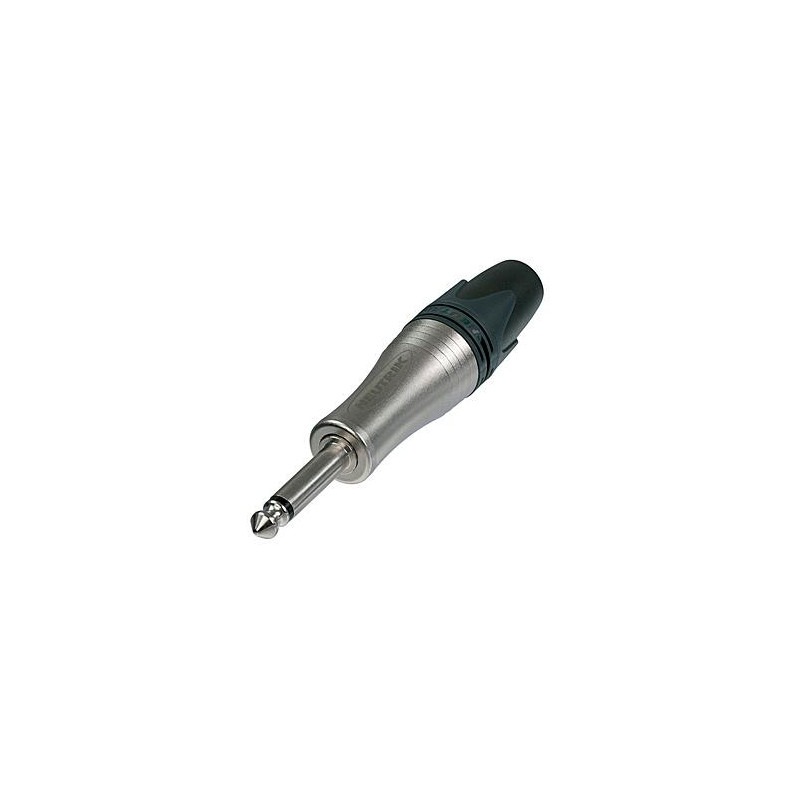

Neutrik - CONECTOR NP 2 XL 1 View larger

Neutrik - CONECTOR NP 2 XL

CONECTOR NP 2 XL

2 pole 1/4'' professional phone plug, up to 10 mm cable O.D. The professional 1/4'' jumboPLUG for thick instrument and loudspeaker cables offers an ergonomic barrel and incorporates the proven features and benefits of the standard PX range.

14,00 € tax incl.

Receive it between %MINIMAL_DATE% and %MAXIMAL_DATE% depending on the chosen shipment. There are %NB_TOTAL_CARRIERS% shipping option/s. +info

Add to wishlist

Free shipping available for this product!

In Stock

Europe Warehouse: 91

More info

Features & Benefits

  • Robust diecast shell in stylish design
  • Proven chuck type strain relief for reliable cable retention
  • Ergonomic design for best handling convenience
  • Precision machined one-piece contacts - avoid hook up of tip contact

Technical Information

Product
TitleNP2XL
Electrical
Contact resistance? mΩ depends on mating connector
Dielectric strength1 kVdc
Insulation resistance> 2 GΩ (initial), ≥ 1 GΩ (after damp heat test)
Rated current per contact? A depends on mating connector
Rated voltage< 50 V
Mechanical
Cable O.D.≤ 10 mm
Lifetime> 1000 mating cycles
Wiresize1 mm²
Wiresize18 AWG
Environmental
Standard complianceIEC 60603-11 / EIA RS-453
Temperature range-20 °C to +65 °C
