Neutrik - NAC3FCA

NAC3FCA

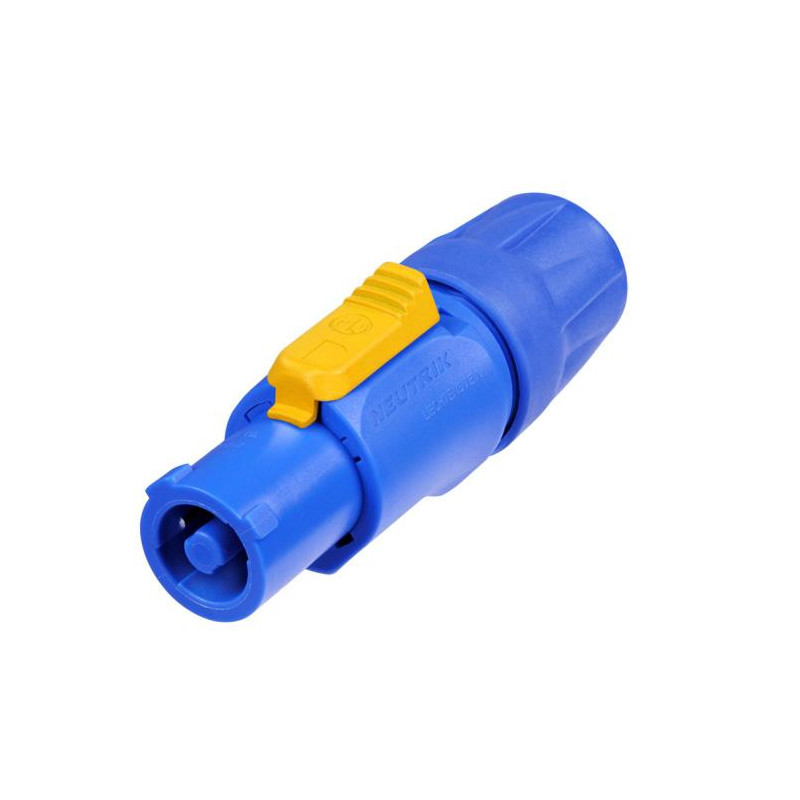

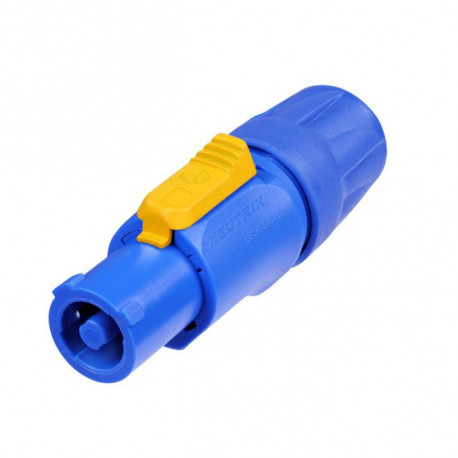

Neutrik NAC 3 FCA PowerCon Plug blue

In Stock

Spain Warehouse: 3

More info

Lockable cable connector, power-in, screw terminals, blue

The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

Attention: The powerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or disconnected under load or live!

Features & Benefits
  • Locking 20 A / 250 V ac appliance coupler
  • 3 contacts for line, neutral and premating safety ground

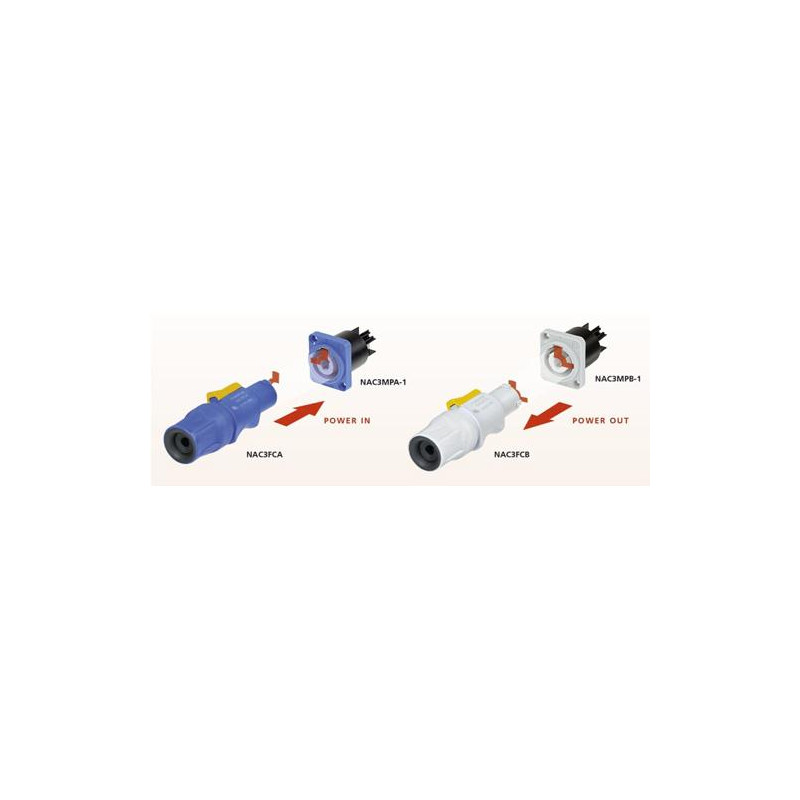

  • Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
  • Fast and easy twist lock latching system
  • Extremely robust and reliable
  • Ergonomic design
  • User friendly latch design for easy handling
  • Unique Neutrik chuck type strain relief
  • UL, cUL recognized components VDE certified SEV approved
  • Branded with unique hologram - guarantees genuine and authentic Neutrik product
Product type
Plugs and Connectors

Type
Loudspeaker Connectors

Poles
3

Gender
female

Colour marker
blue

Contacts
nickel plated

Connection type
Screw terminals

Housing
polyamide

Width
26 mm

Height
26 mm

Depth
76.5 mm

Weight
0,0358 kg
