Omnitronic - EM-260 Entertainment Mixer

EM-260 Entertainment Mixer

EM-260 Entertainment Mixer

199.00€%11.45 You save 22.79€
176,21 €

Add to wishlist

In Stock

Europe Warehouse: 70

More info

OMNITRONIC Entertainment Mixer SeriesThe modern entertainment industry, especially hotels, bars or theme parks, requires very high standards in quality and features for sound devices.The OMNITRONIC EM-series is especially designed for this industry and offers the highest flexibility and quality in very small mixer casings.The EM-series offers a variety of connection possibilities and also convinces by an ergonomic design and easy use.The special housing design and the state-of-the-art construction are further reasons which make the EM-series the first choice for installers.

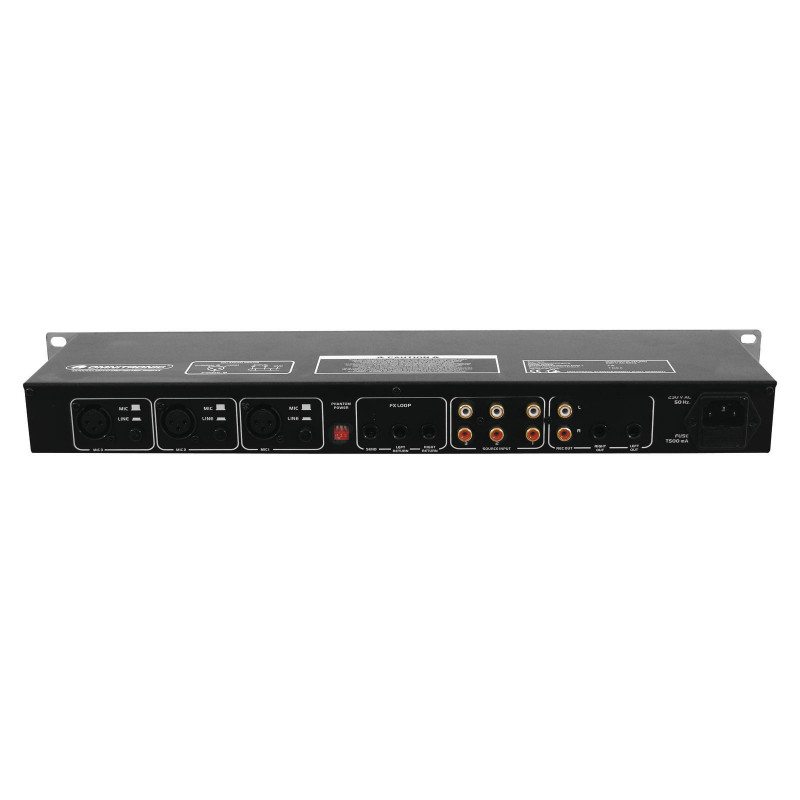

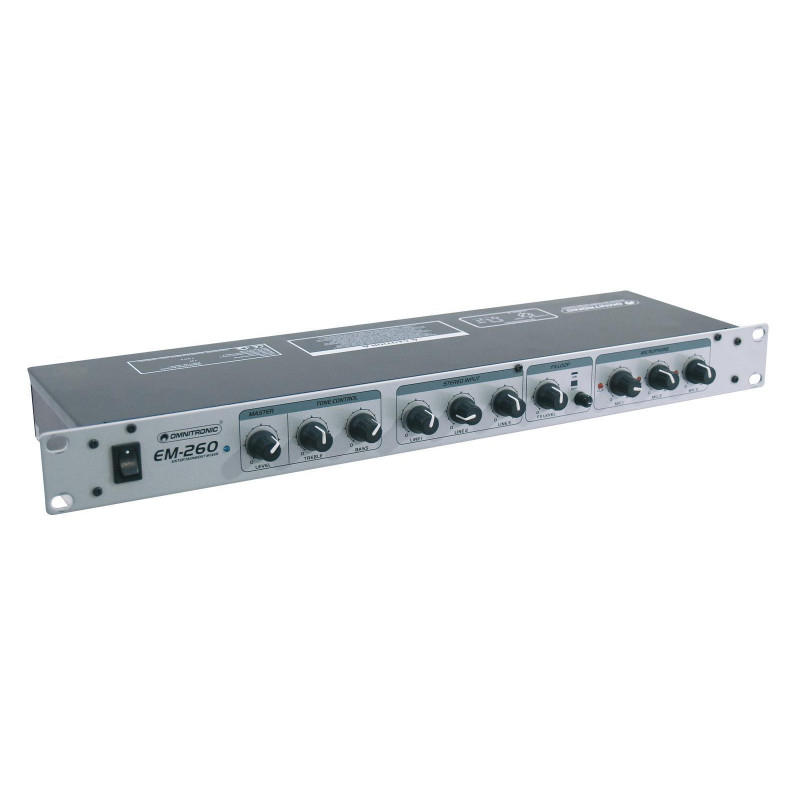

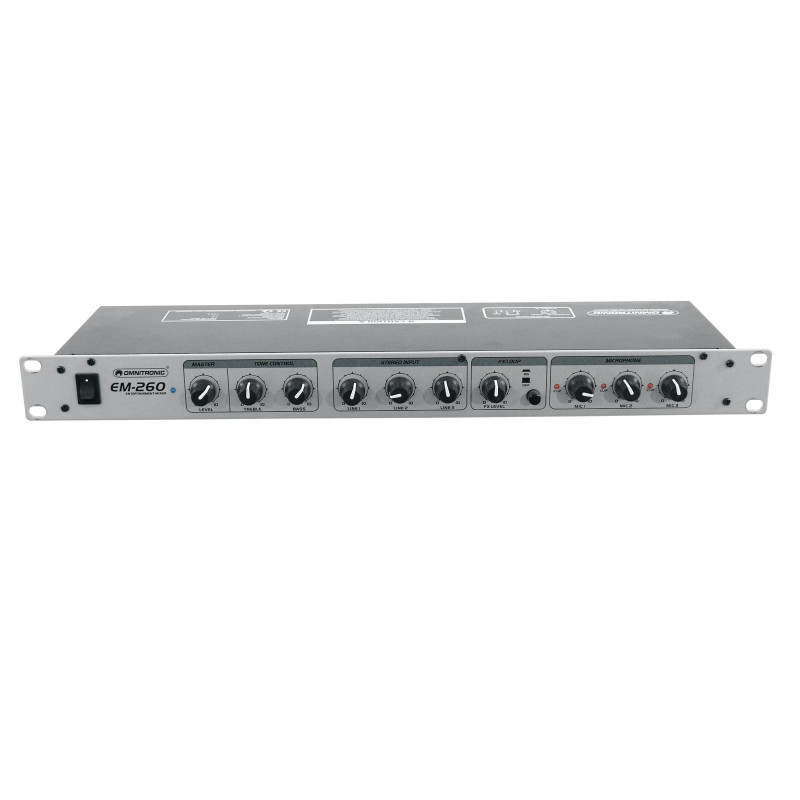

6-channel microphone/line mixer, silver

  • 6 inputs (3 x mic/line and 3 x line) for mixing to 1 stereo output
  • Ideal e.g. for karaoke when microphones need to mixed with CDs
  • 3 mono input channels mic/line (XLR, bal.), switchable
  • 3 stereo line input channels (RCA)
  • Clip LED for each microphone channel
  • Each microphone input with optional 12 V phantom power
  • FX send/return with FX level control
  • Stereo master out (6.3 mm jack) with 2-band equalizer (highs and lows) and level control
  • Stereo record output (RCA)
  • Rack installation, 1 U
  • Housing design: (19") 48,3 cm rack installation
  • Master equalizer: 1 x 2 band tone control Stereo
  • Height unit: 1 U
  • Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided)


Inputs MIC 1-3:XLR
Max. input level:-14 dB
Inputs LINE 1-3:stereo RCA
Max. input level:24 dB
RETURN:6.3 mm stereo jack
Outputs:
MASTER:6.3 mm stereo jack
REC:stereo RCA
SEND:6.3 mm jack
Tone control:
High:-12 dB to +12 dB/ 10 kHz
Bass:-12 dB to +12 dB/ 100 Hz
S/N ratio:69 dB
Frequency range:20-20000 Hz
Distortion:0.025 %
Weight:2,2 kg
Power consumption:35,00 W
Height:4,45 cm
Depth:12,3 cm
Width:48,3 cm
Power connection:Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M)
Power supply:115/230 V AC, 50/60 Hz
