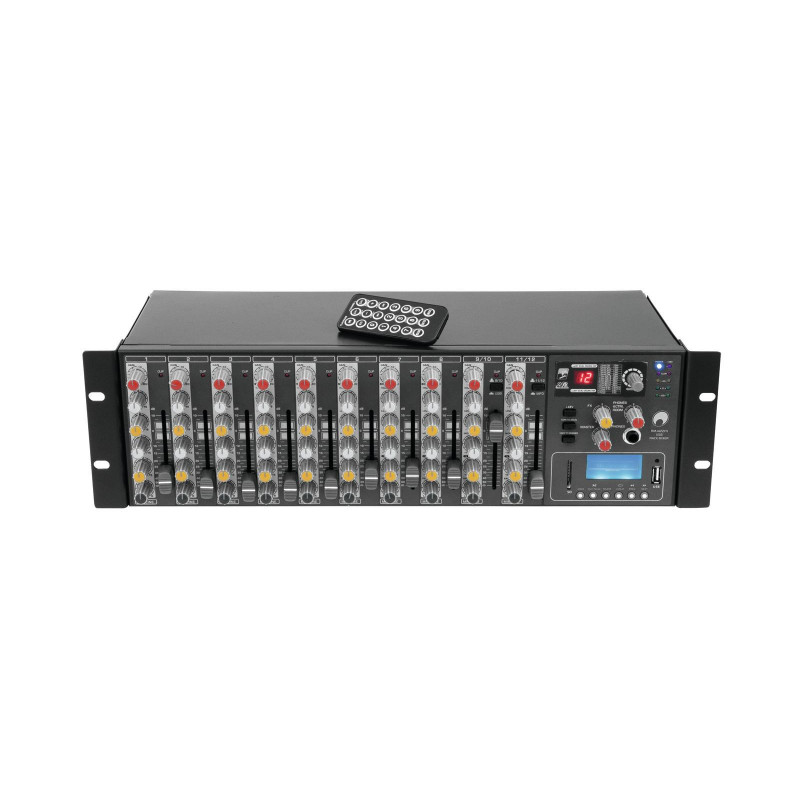

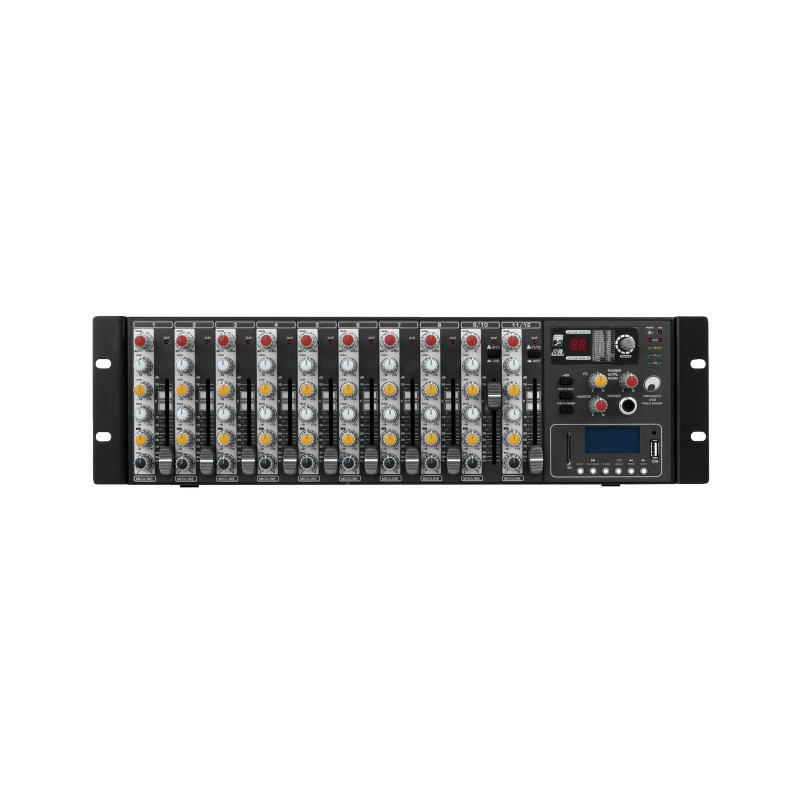

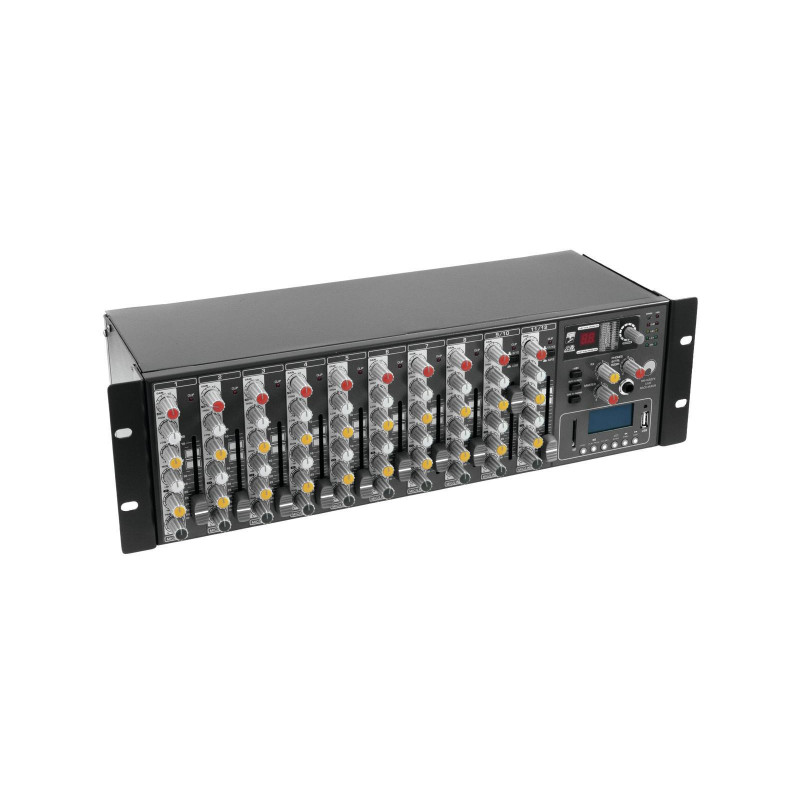

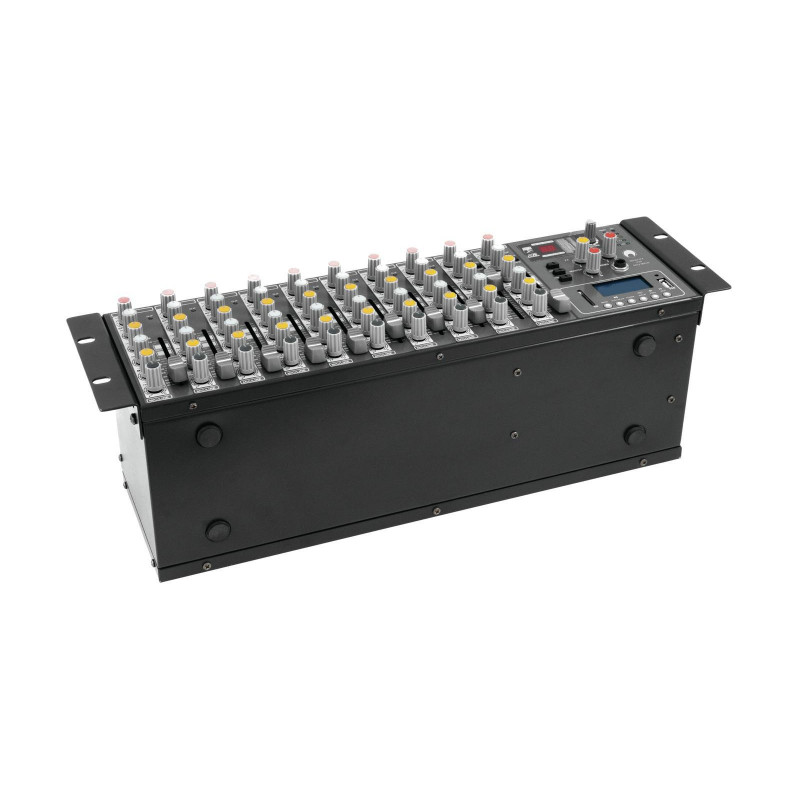

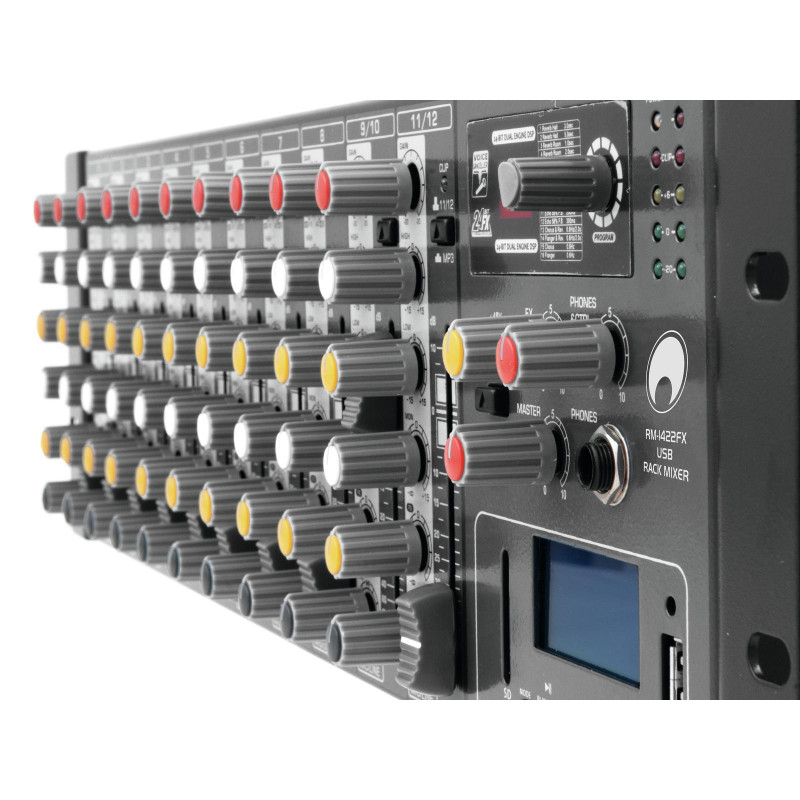

Compact all-rounderWhether it is used as small live mixer, recording studios or permanent installations-the RM--1422FX is the right answer for your 19" rack. Along with a full-fledge audio mixer, you'll get an FX unit, an MP3 player for external USB and SD storage media, and most importantly, a USB audio interface for recordings and playback with your computer in the smallest of spaces.

Professional 19" mixer with 12 channels, DSP FX unit and MP3 player

• Built-in USB audio interface allows recordings and playback of digital audio files with a computer (PC and Mac)
• 24 bit DSP FX unit with 16 different effects, e.g. reverb, echo and flanger
• 6 mono input channels with gain control, 2-way EQ, pan control and channel fader
• 2 stereo input channels with 2-way EQ, balance control and channel fader
• 8 channel inserts
• Tape input and output
• Separate main mix and control room outputs
• 2 aux send outputs
• Adjustable headphones output
• +48 V phantom power, can be switched centrally
• 4-digit stereo LED level display
• MP3 player with SD card slot, USB input, LCD and IR remote control
• Rack installation, 3 U
• Housing design: (19") 48,3 cm rack installation
• Height unit: 3 U
• Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided)
• DSP: Digital signal processor
• Control: IR remote control (provided)
• Battery: 1 x Button cell 3.0 V CR2025 lithium manganese built-in

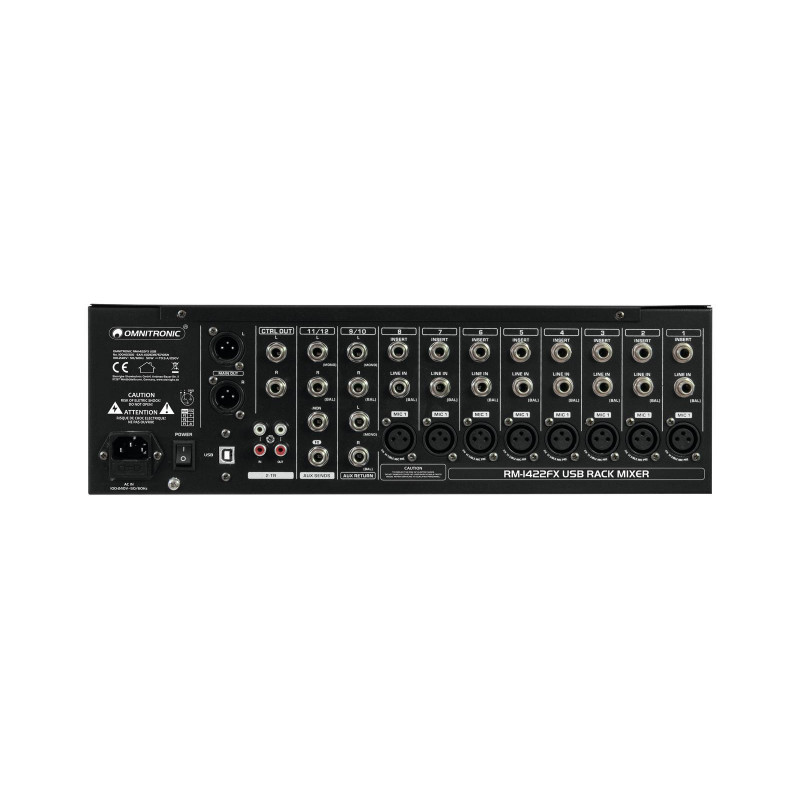

Inputs:
Mic, mono	XLR bal.
Line, mono	6.3 mm jack bal.
Channel Insert	6.3 mm jack unbal.
Aux Return, stereo	6.3 mm jack L/R bal.
Line, stereo	6.3 mm jack L/R bal.
Tape	RCA L/R
Outputs:
Main Out:	XLR L/R bal.
Control Room	6.3 mm jack L/R unbal.
Aux Send:	6.3 mm jack unbal.
Tape	RCA L/R
Headphones	6.3 mm jack unbal.
Headphones impedance:	>8 ohms
USB port:	1.1, type B
Distortion:	0.05 %
S/N ratio:	89 dB
Tone control/channel:
Treble:	±15 dB at 12 kHz
Bass:	±15 dB at 80 Hz
Dimensions (L x W x H):	180 x 483 x 136 mm
Weight:	4,07 kg
Power consumption:	50 W
Audio player:	USB + SD
Frequency range:	20 - 20000 Hz
Height:	13,35 cm
Depth:	18 cm
Width:	48,3 cm
Power connection:	Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M)
Power supply:	110-240 V AC, 50/60 Hz
Battery:	1 x Button cell 3.0 V CR2025 lithium manganese built-in
