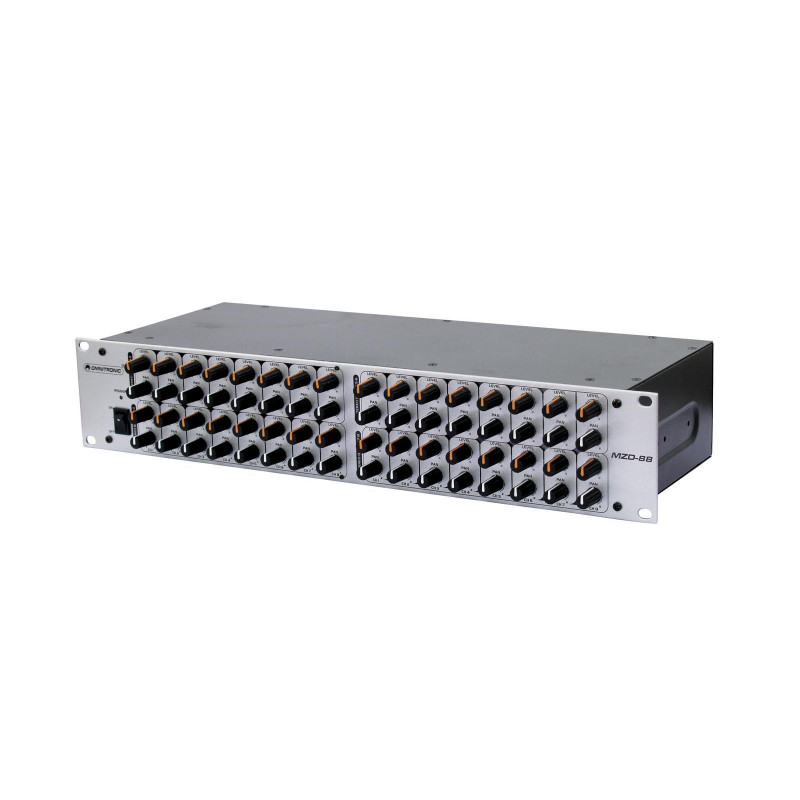

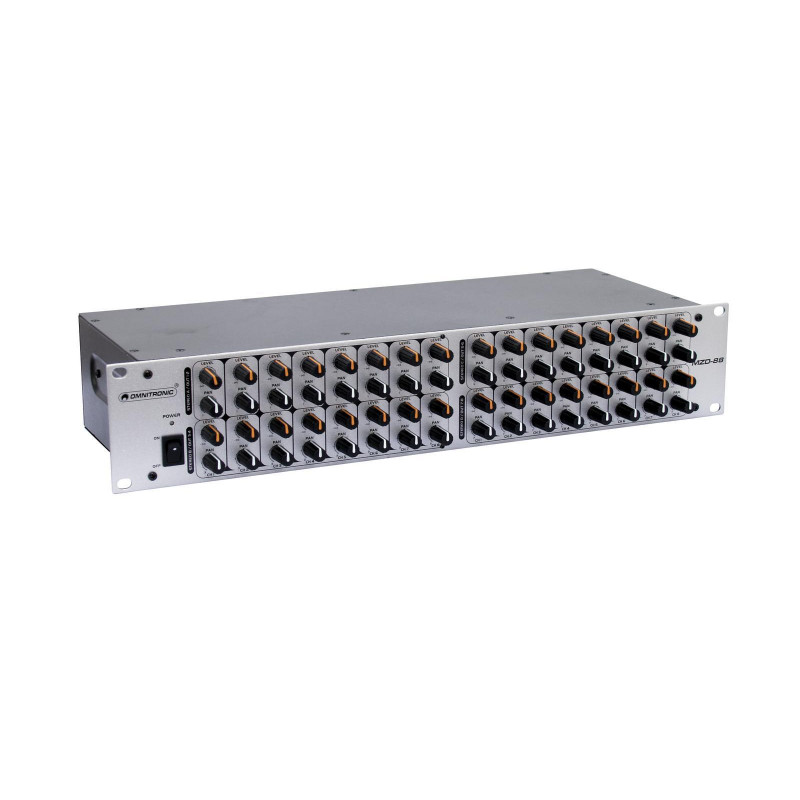

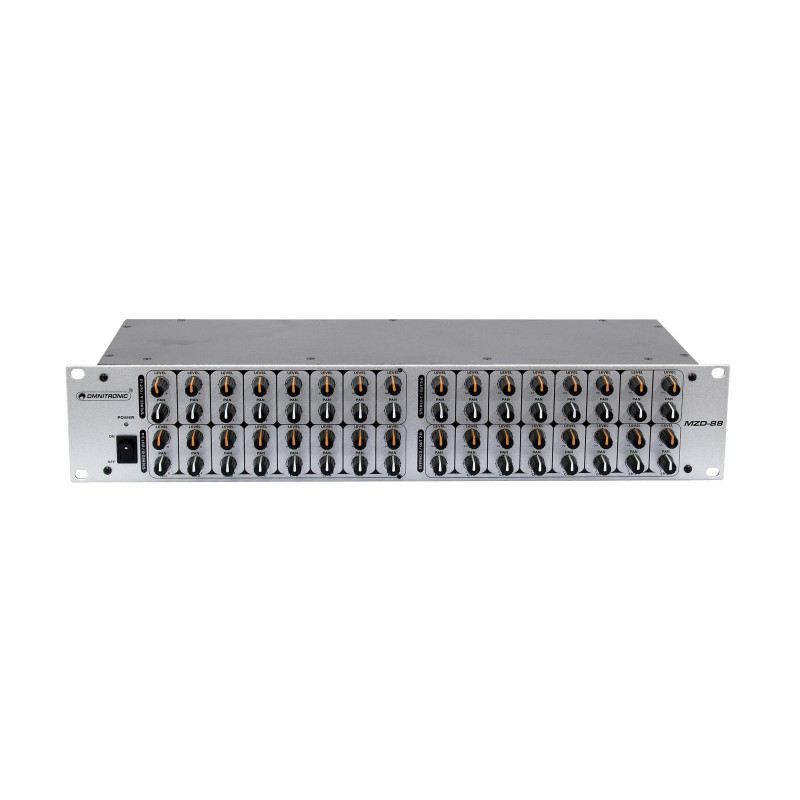

Matrix Reloaded!There is a lot that can be distributed: newspapers, food, leaflets or rather signals as well. Yes, because concerning the sound it is often necessary to mix it in different ways and to distribute it on sundry loudspeakers. The OMNITRONIC MZD-88 will help you with that, after all it is an audio mixer with an analog matrix of 8 input and 8 outputs which allows for multiple output configurations and inputs mixing. The 8 outputs are divided in 4 groups. Thus it's possible to supply 4 different PA zones with a stereo output by routing different input signals to these zones without having to change the cable configuration. It's also possible to obtain 8 outputs with different mixing as every input has its own level and PAN controls. Perfect for any place where multi-zone or multi-room solutions are required, just like in theme parks, conference centers, schools or as the case may be. By the way, the MZD-88 could also be used for personal monitoring. Amazing what can be distributed.

8-channel audio mixer with 8 outputs and matrix

• Matrix input assignment: 8 audio inputs are freely assignable to each of the 8 outputs
• Division of the 8 outputs into 4 groups; each with separate level and pan control per channel
• Ultra flexible configuration modes; distributes the signal of up to 8 audio sources to e.g. 8 mono zones or 4 stereo zones, each with a different output signal

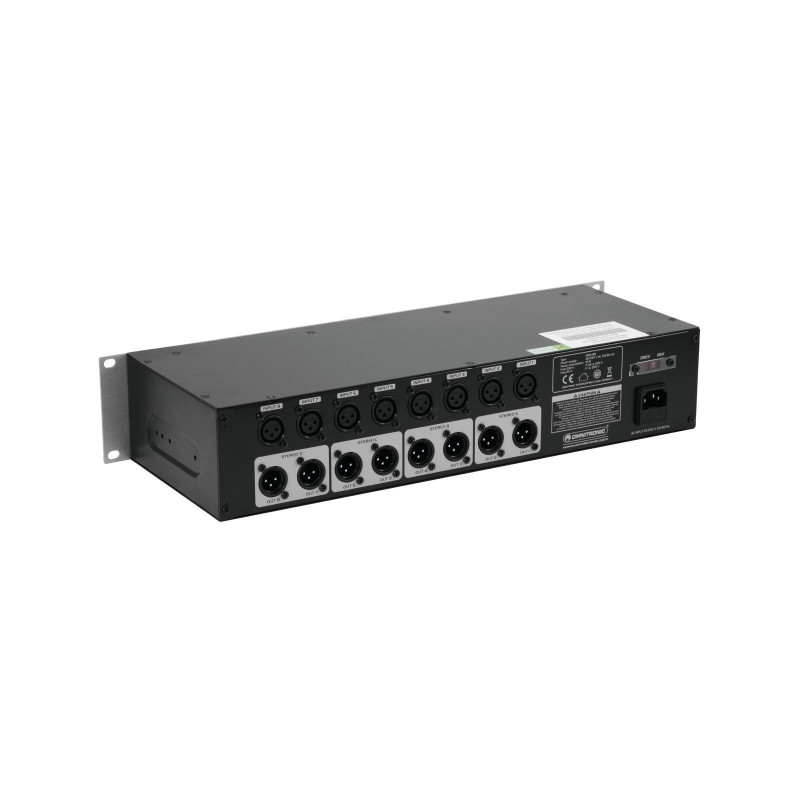

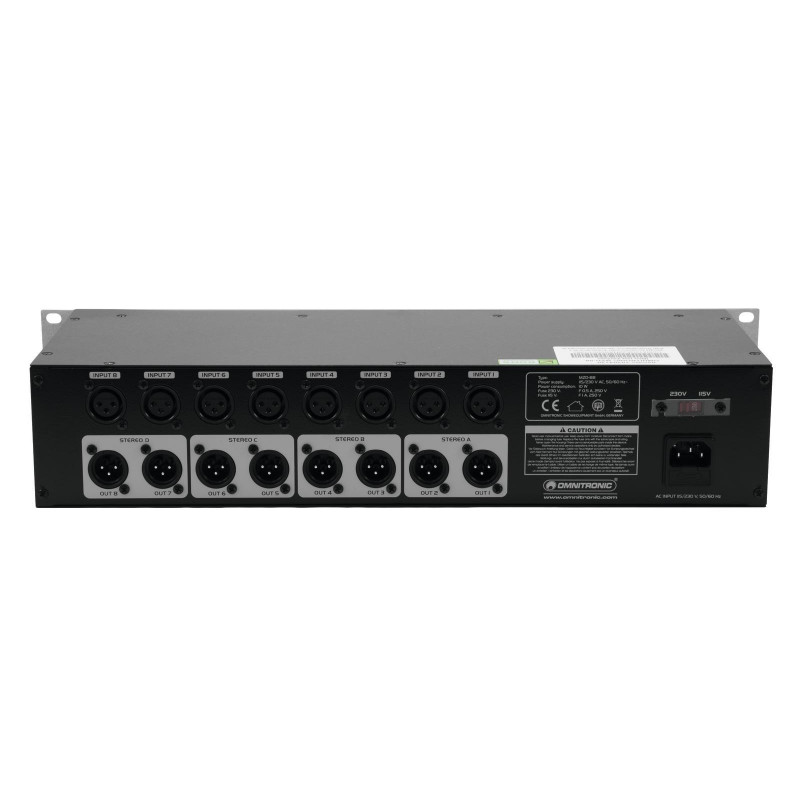

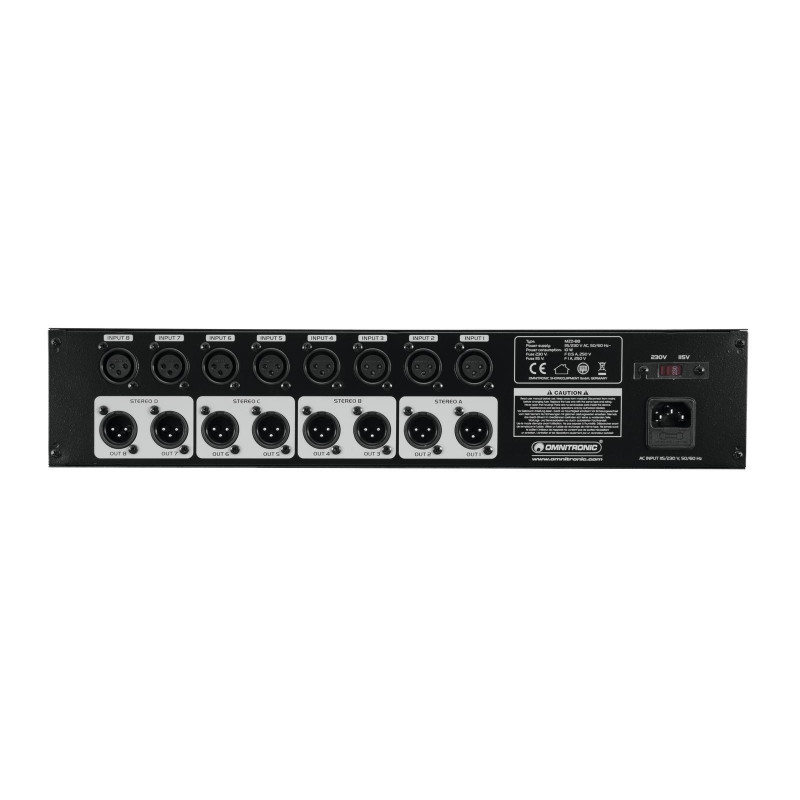

• Inputs and outputs via balanced XLR jacks
• Frequency range 20-20000 Hz
• Rack installation, 2 U
• Housing design: (19") 48,3 cm rack installation
• Height unit: 2 U
• Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided)

Power supply:	115/230 V, 50/60 Hz
Dynamic range:	100 dB
Max. input level:	+21 dBU
Input impedance:	10 kohms
Max. gain:	+12 dB, per channel
Weight:	3,5 kg
Power consumption:	10,00 W
Frequency range:	20 - 20000 Hz
Height:	8,9 cm
Depth:	19,5 cm
Width:	48,3 cm
Power connection:	Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M)
