Omnitronic - LH-020...
LH-020 3-Channel Mic Mixer
-
AFX - DMX-XLRF-XLRM-5
AFX CONNECTION DMX-XLRF-XLR-M-5
More info

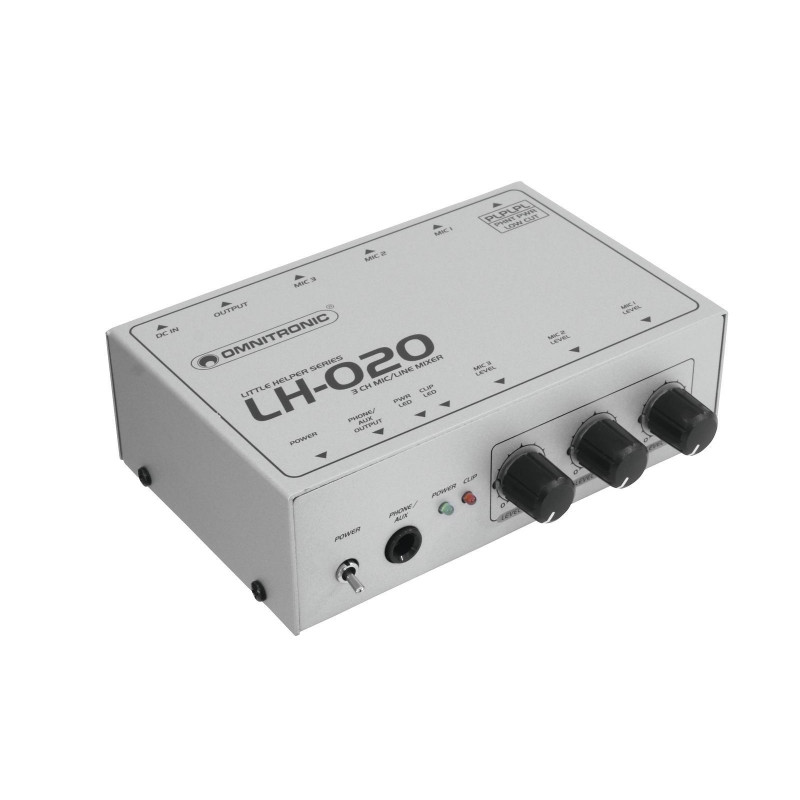

3-channel microphone mixer
- Compact mixer to mix 3 microphones to 1 line output, with individual level control
- 3 microphone input channels with separate level controls, switchable phantom power and low cut
- 1 master output with line level, clip LED
- 1 headphones output (6.3 mm jack)
- On/off switch and power LED

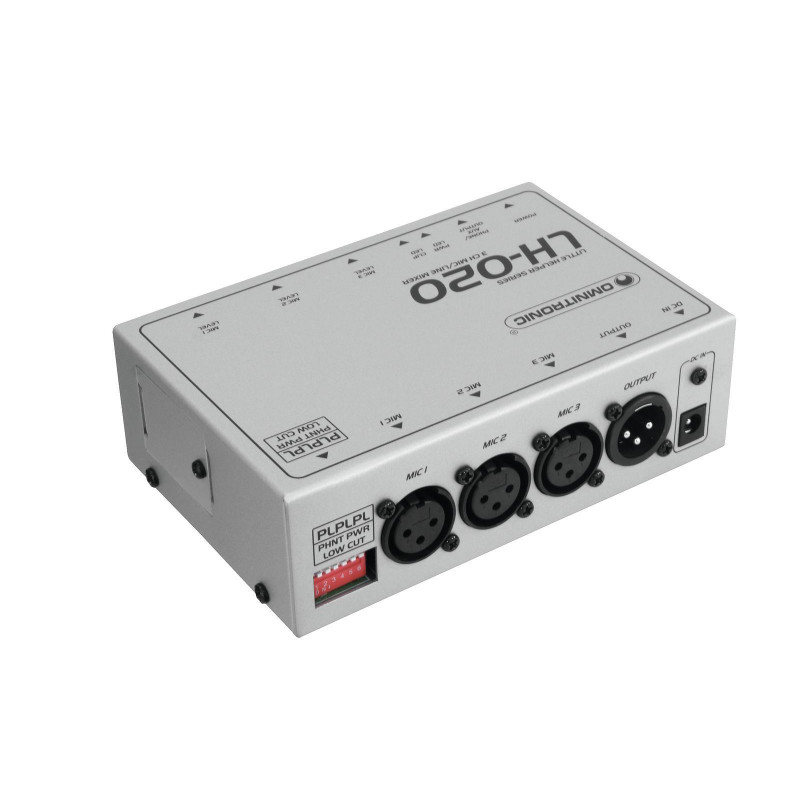

- Inputs and output via balanced XLR connectors

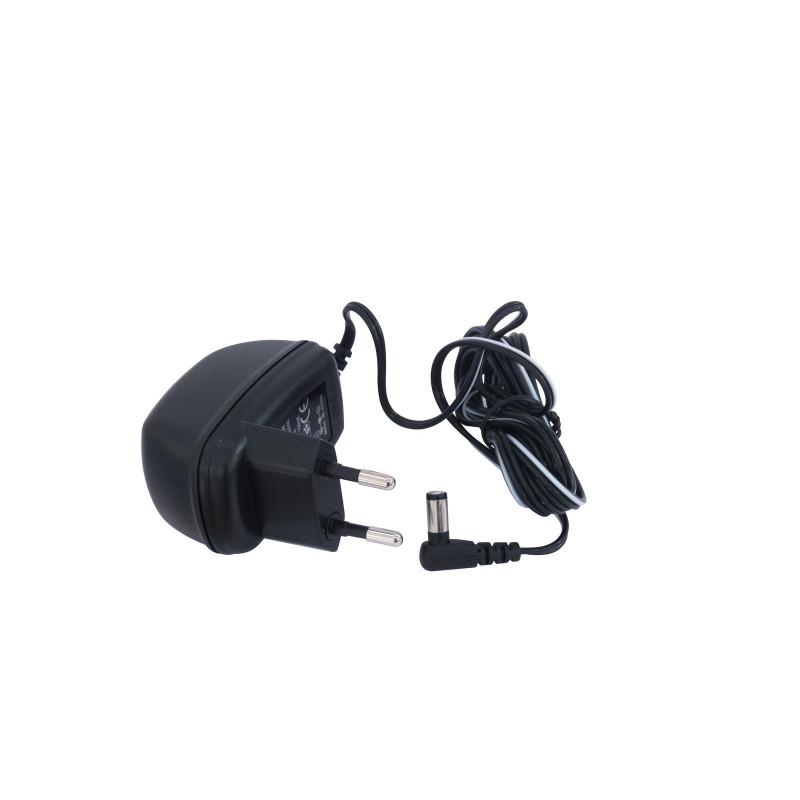

- Operation via supplied power unit
- Power connection: Mains Input Socket (M) Coaxial power connector (M) Power supply cord with AC adapter (m) (provided)
| Power supply: | 12 V DC, 150 mA |
| Phantom power output: | 18 V DC |
| Input impedance: | 600 ohms |
| Output impedance: | 600 ohms |
| Max. input level: | -14 dB |
| Max. output level: | +14 dB |
| Gain: | 60 dB |
| T.H.D.: | 0.02 % |
| S/N ratio: | >75 dB |
| Weight: | 0,76 kg |
| Frequency range: | 25 - 16000 Hz |
| Height: | 4,5 cm |
| Depth: | 9,3 cm |
| Width: | 14,3 cm |
| Power connection: | Mains Input Socket (M) Coaxial power connector (M) Power supply cord with AC adapter (m) |
