Omnitronic - LH-060 PRO Passive Dual DI Box

LH-060 PRO Passive Dual DI Box

LH-060 PRO Passive Dual DI Box

In Stock

Europe Warehouse: 70

More info



Passive 2-channel DI box/splitter, Silver

  • Passive 2-channel DI box with split mode

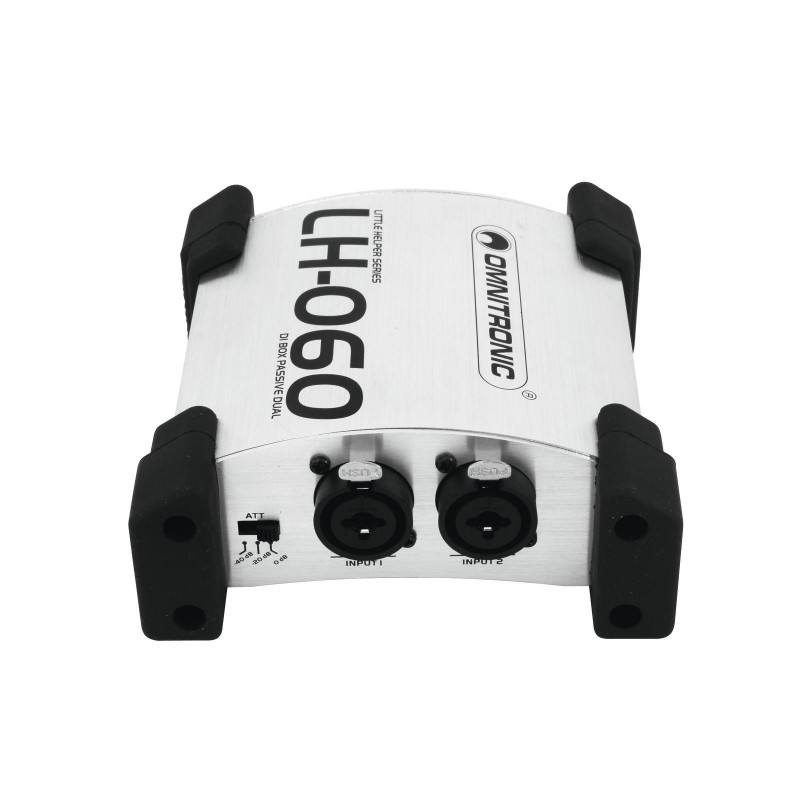

  • 2 high-impedance signal inputs via combo connectors (XLR/6.3 mm jack)

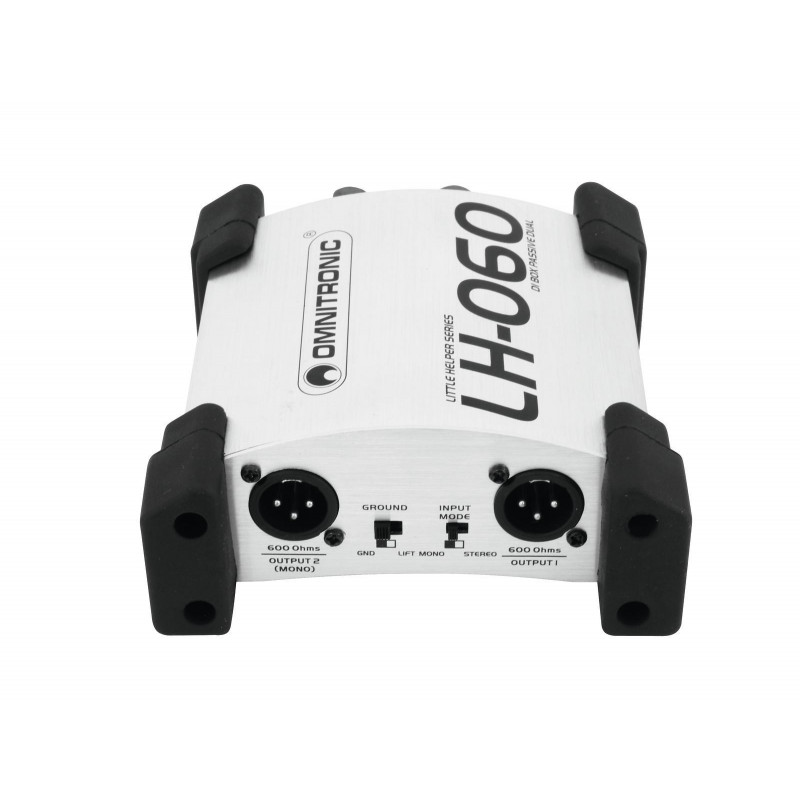

  • 2 low-impedance XLR outputs
  • Converts 2 separate unbalanced line inputs (e.g. instruments) into 2 balanced XLR outputs, for connecting a mixer
  • Switchable to split mode (input 2 routes the signal to both outputs)
  • Switchable input attenuation: 0 dB, -20 dB, -40 dB
  • Ground-lift switch eliminates signal interference and ground loop problems
  • Modern convex housing design with rubber corners for safe positioning
  • Stackable
  • Cables can be routed under the housing


Frequency range:15 - 30000 Hz
Width:15 cm
Height:6 cm
Depth:13 cm
Weight:0,65 kg
Input impedance:50 kohms
Output impedance:600 ohms
Maximum output level:6 dBu
Dynamic range:>95 dB
Input connectors:2 x combo XLR/6.3 mm jack
Output connectors:2 x XLR, bal.
