Omnitronic - LH-061 PRO Passive Dual DI Box

LH-061 PRO Passive Dual DI Box

LH-061 PRO Passive Dual DI Box

49.90€%6.01 You save 3.00€
46,90 €

Add to wishlist

In Stock

Europe Warehouse: 70

More info



Passive 2-channel DI box/splitter, Black

  • Passive 2-channel DI box with split mode
  • 2 high-impedance signal inputs via two 6.3 mm jacks
  • 2 low-impedance XLR outputs
  • 2 feed-through outputs (6.3 mm jack)
  • Converts 2 separate unbalanced line inputs (e.g. CD player, instruments) into 2 balanced XLR outputs, for connecting a mixer

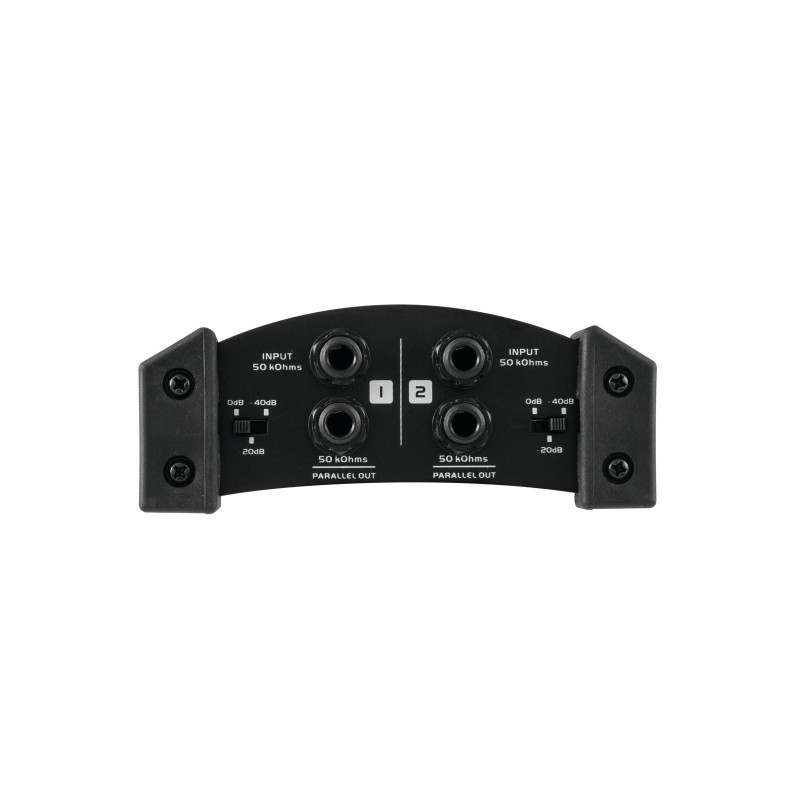

  • Switchable input attenuation: 0 dB, -20 dB, -40 dB

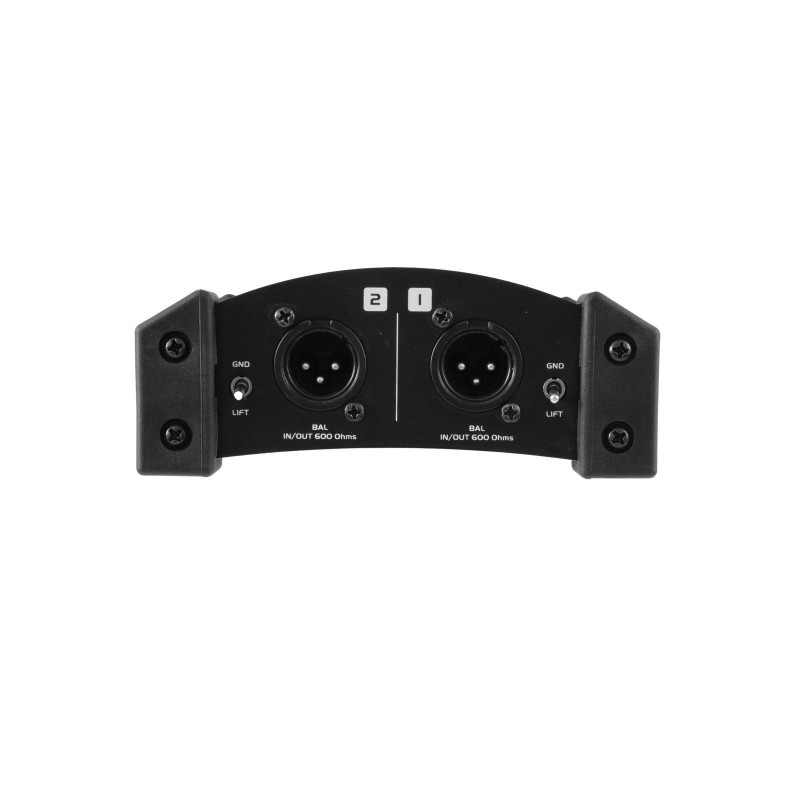

  • Ground-lift switch eliminates signal interference and ground loop problems
  • Modern convex housing design with rubber corners for safe positioning
  • Stackable
  • Cables can be routed under the housing


Frequency range:15 - 30000 Hz
Width:13,3 cm
Height:5,4 cm
Depth:11,5 cm
Weight:0,61 kg
Input impedance:50 kohms
Output impedance:600 ohms
Maximum output level:6 dBu
Dynamic range:>95 dB
Input connectors:2 x 6.3 mm jack
Output connectors:2 x XLR
2 x 6.3 mm jack (parallel out)
