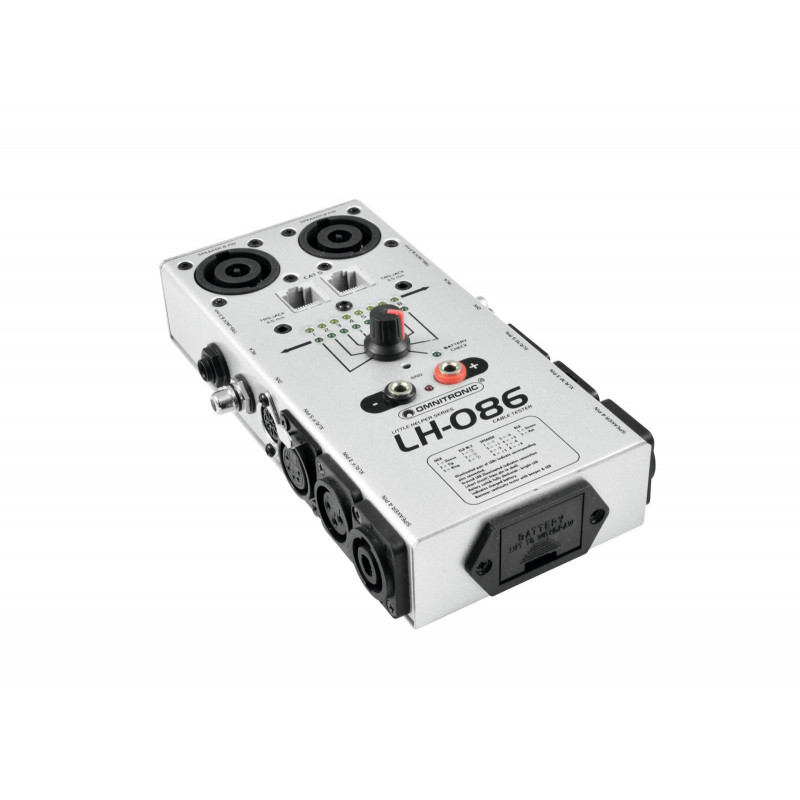

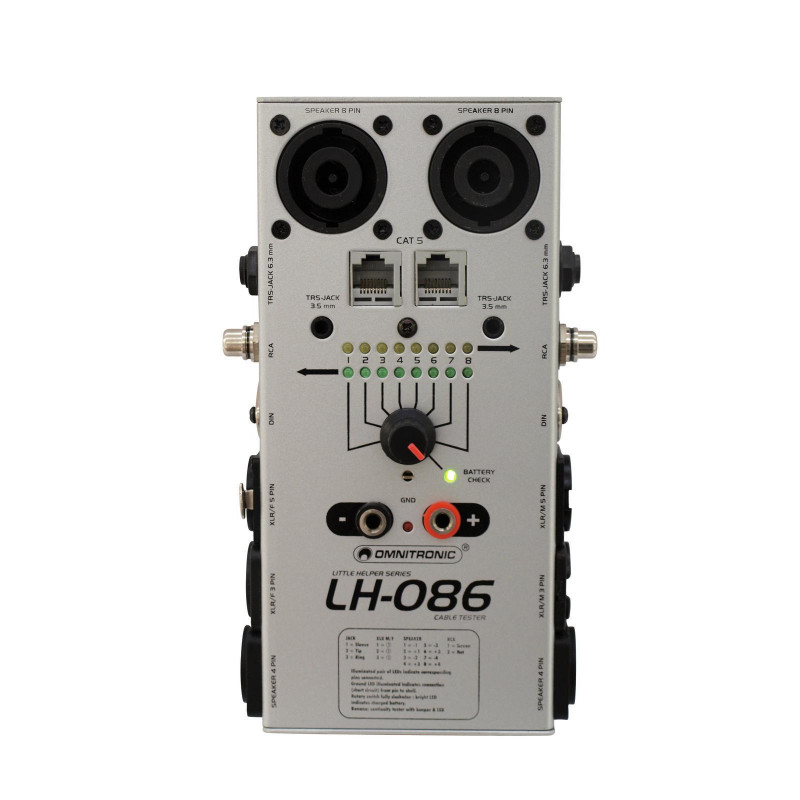

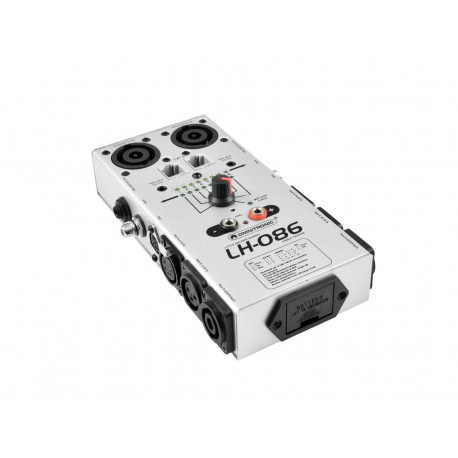

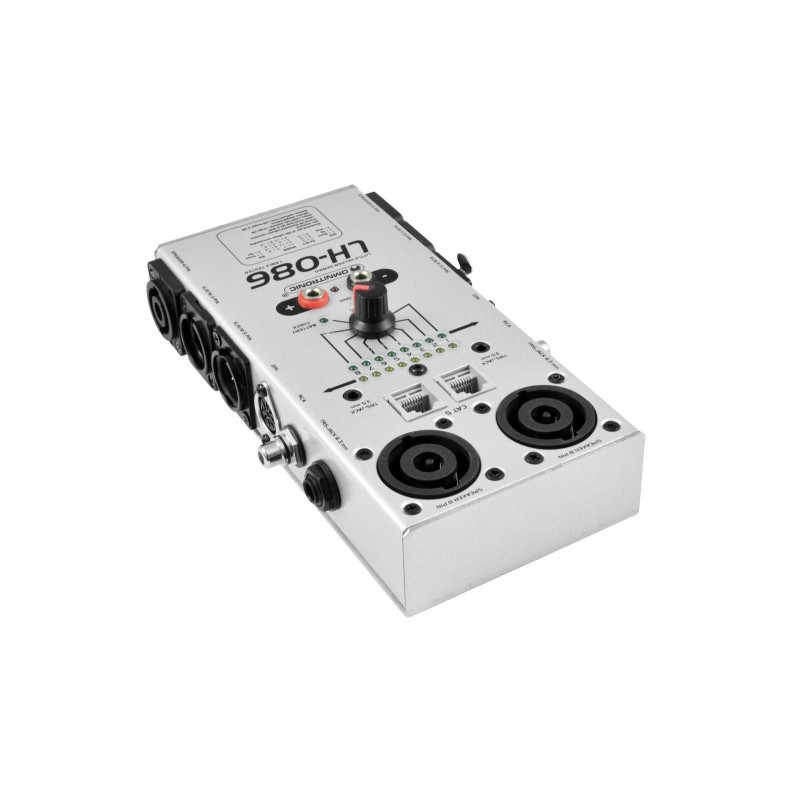

The OMNITRONIC LH-086 controls the function of 3 and 5-pin XLR-, 3.5/6.3 mm jack (also stereo), CAT5, DIN, RCA and 4 and 8-pin speaker cables and connections. A polarity and short-circuit display enables an easy control. Testing the continuity via two banana sockets is possible as well.
Cable tester for XLR, jack, CAT5, DIN, Cinch, Speaker
- Ideal cable test for all cable connections in the studio and for live applications
- Tests 3+5-pin XLR, 3.5/6.3 mm jack (also stereo), CAT5, DIN, RCA and 4+8-pin Speaker cables and connections
- Polarity and short-circuit display
- Comfortable selection via rotary switch

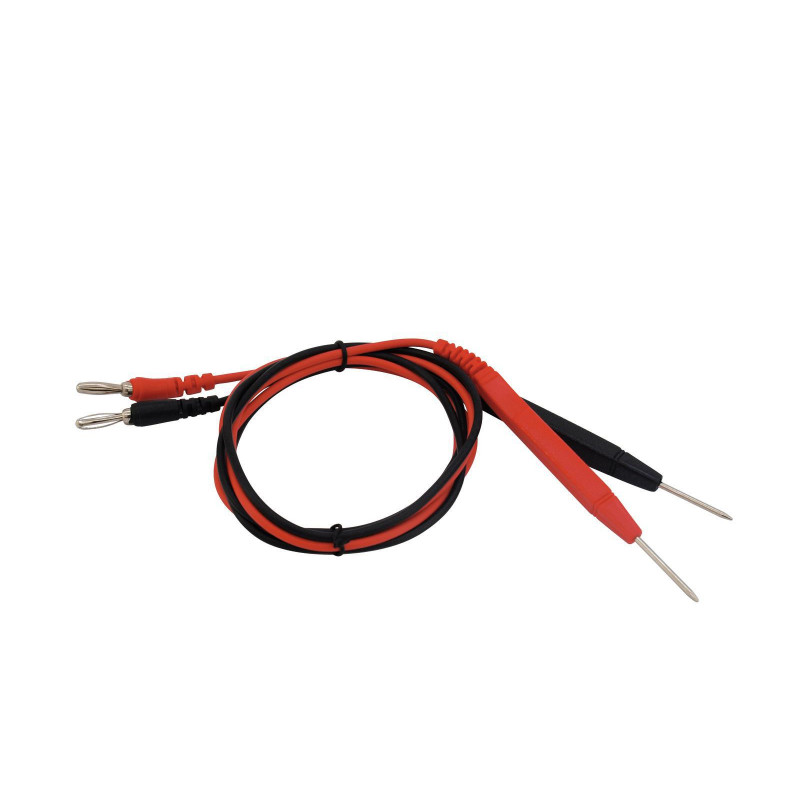

- Continuity tester via two banana sockets for connecting the measuring pins. LED and beeper indicate continuity
- A must for musicians and technicians
- Operation with 9 V battery
Power connection: | Battery/battery pack |
Battery: | 1 x 9.0 V E block 6LR61 alkaline manganese (provided) |

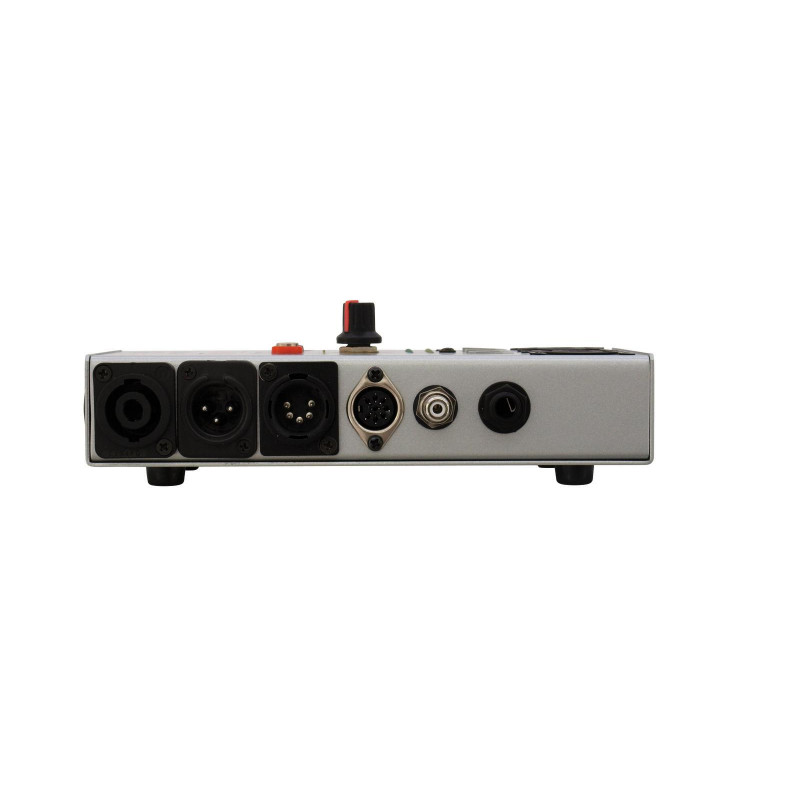

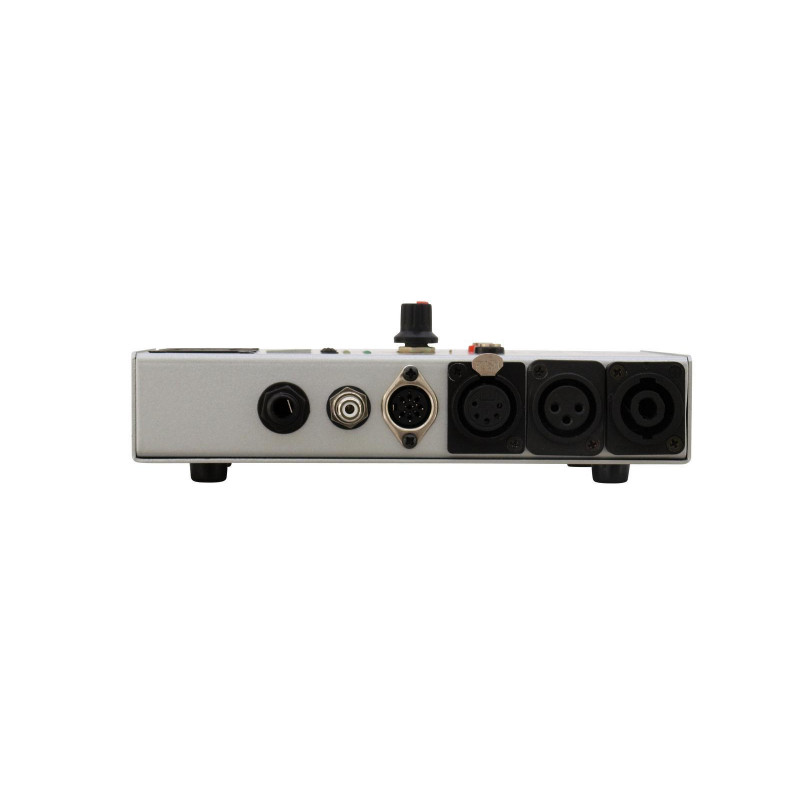

Connections: | via RJ45 (F) mounting version |
| via 3.5 mm jack (stereo) mounting version |
| via RCA (f) mounting version |
| via 3-pin XLR |
| via 5-pin XLR |
| via Speaker built-in socket (f) |
| via 6.3 mm jack socket (stereo) mounting version |
| via 5-pin DIN (F) mounting version |
Width: | 11,2 cm |
Height: | 6 cm |
Depth: | 19 cm |
Weight: | 0,90 kg |
